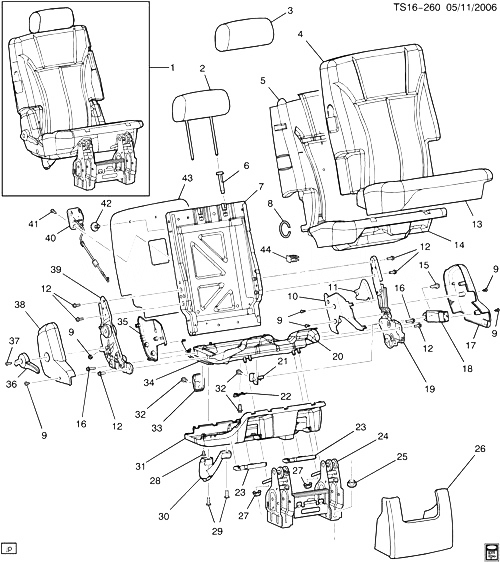

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
|
SEAT, RR |
|
2004-2006 |
|
| 002 |
88954094 |
PAD, R/SEAT H/RST (PAD RODS) |
ST158 (06) (AM9) |
2003-2006 |
02 |
| 003 |
89043509 |
COVER, R/SEAT H/RST (GRAY) |
ST158 (06) (AM9, X88, Z88, Z89, 282) |
2005-2006 |
01 |
| 003 |
89043510 |
COVER, R/SEAT H/RST (CASHMERE) |
ST158 (06) (AM9, X88, Z88, Z89, 272) |
2005-2006 |
01 |
| 003 |
89043511 |
COVER, R/SEAT H/RST (EBONY) |
ST158 (06) (AM9, X88, Z88, 482) |
2005-2006 |
01 |
| 003 |
89043577 |
COVER, R/SEAT H/RST (GRAY) (LH/RH) |
ST158 (06) (AM9, X88, 28H) |
2005-2006 |
01 |
| 003 |
89043578 |
COVER, R/SEAT H/RST (CASHMERE) |
ST158 (06) (AM9, X88, 27H) |
2005-2006 |
01 |
| 003 |
89043579 |
COVER, R/SEAT H/RST (EBONY) |
ST158 (06) (AM9, X88, 48H) |
2005-2006 |
01 |
| 004 |
89042366 |
COVER, R/SEAT BK CUSH (GRAY) |
ST158 (06) (AM9, X88, 28H) |
2005-2006 |
01 |
| 004 |
89042367 |
COVER, R/SEAT BK CUSH (EBONY) |
ST158 (06) (AM9, X88, 48H) |
2005-2006 |
01 |
| 004 |
89042368 |
COVER, R/SEAT BK CUSH (CASHMERE) |
ST158 (06) (AM9, X88, 27H) |
2005-2006 |
01 |
| 004 |
89043513 |
COVER, R/SEAT BK CUSH (GRAY) |
ST158 (06) (AM9, X88, Z88, 282) |
2005-2006 |
01 |
| 004 |
89043514 |
COVER, R/SEAT BK CUSH (CASHMERE) (35%) |
ST158 (06) (AM9, X88, Z88, 272) (EXC UE1) |
2005-2006 |
01 |
| 004 |
89043515 |
COVER, R/SEAT BK CUSH (EBONY) (35%) |
ST158 (06) (AM9, X88, Z88, 482) (EXC Y91) |
2005-2006 |
01 |
| 005 |
89042369 |
PAD, R/SEAT BK CUSH |
ST158 (06) (AM9) |
2005-2006 |
01 |
| 006 |
89043500 |
GUIDE, R/SEAT H/RST (GRAY) (W/BUTTON) (LH/RH) |
ST158 (06) (AM9, X88, Z88, 28I) |
2005-2006 |
02 |
| 006 |
89043501 |
GUIDE, R/SEAT H/RST (CASHMERE) (W/BUTTON) |
ST158 (06) (AM9, 27I) |
2005-2006 |
02 |
| 006 |
89043502 |
GUIDE, R/SEAT H/RST (EBONY) (W/BUTTON) |
ST158 (06) (AM9, X88, Z88, 48I) (EXC Z49) |
2005-2006 |
01 |
| 006 |
89043504 |
GUIDE, R/SEAT H/RST (GRAY) (W/O BUTTON) |
ST158 (06) (AM9, X88, Z88, 28I) |
2005-2006 |
01 |
| 006 |
89043505 |
GUIDE, R/SEAT H/RST (CASHMERE) (W/O BUTTON) |
ST158 (AM9, X88, 27I) |
2005-2006 |
02 |
| 006 |
89043506 |
GUIDE, R/SEAT H/RST (EBONY) (W/O BUTTON) (LH/RH) |
ST158 (AM9, X88, 48H) |
2005-2006 |
02 |
| 007 |
88983552 |
FRAME, R/SEAT BK CUSH |
ST158 (06) (AM9) |
2003-2006 |
01 |
| 008 |
89046281 |
RING, R/SEAT CUSH CVR HOG (15.035) |
ST158 |
2003-2006 |
AR |
| 009 |
88953041 |
БОЛТ, R/SEAT (M04.8 15.875 PS-7902) (PAN HEAD CROSS RECESS TAPPING SCREW) (16.720) |
ST158 (06) (AM9) |
2003-2006 |
AR |
| 010 |
89043538 |
COVER, R/SEAT INR HGE FIN (GRAY) |
ST158 (06) (AM9, X88, Z88, 28I) |
2005-2006 |
01 |
| 010 |
89043539 |
COVER, R/SEAT INR HGE FIN (CASHMERE) (INNER) |
ST158 (06) (AM9, X88, Z88, 27I) |
2005-2006 |
01 |
| 010 |
89043540 |
COVER, R/SEAT INR HGE FIN (EBONY) (I/B-INNER) |
ST158 (06) (AM9, X88, Z88, 48I) |
2005-2006 |
01 |
| 011 |
89043529 |
COVER, R/SEAT RECL INR FIN (GRAY) |
ST158 (06) (AM9, X88, Z88, 28I) |
2005-2006 |
01 |
| 011 |
89043530 |
COVER, R/SEAT RECL INR FIN (CASHMERE) |
ST158 (06) (AM9, X88, Z88, 27I) |
2005-2006 |
01 |
| 011 |
89043531 |
COVER, R/SEAT RECL INR FIN (EBONY) |
ST158 (06) (AM9, X88, Z88, 48I) |
2005-2006 |
01 |
| 012 |
88953039 |
БОЛТ, R/SEAT BK CUSH FIL PNL (FLIPPER PANEL TO BACK FRM) (M10X25.0) (#2) |
ST1 (AM9) |
2005-2006 |
AR |
| 013 |
89042362 |
COVER, R/SEAT CUSH (GRAY) |
ST158 (06) (AM9, X88, 28H) |
2005-2006 |
01 |
| 013 |
89042363 |
COVER, R/SEAT CUSH (EBONY) |
ST158 (06) (AM9, X88, 48H) |
2005-2006 |
01 |
| 013 |
89042364 |
COVER, R/SEAT CUSH (CASHMERE) |
ST158 (06) (AM9, X88, 27H) |
2005-2006 |
01 |
| 013 |
89043517 |
COVER, R/SEAT CUSH (GRAY) (35%) |
ST158 (06) (AM9, X88, Z88, 282) |
2005-2006 |
01 |
| 013 |
89043518 |
COVER, R/SEAT CUSH (CASHMERE) (35%) |
ST158 (06) (AM9, X88, Z88, 272) (EXC UE1) |
2005-2006 |
01 |
| 013 |
89043519 |
COVER, R/SEAT CUSH (EBONY) (35%) |
ST158 (06) (AM9, X88, Z88, 482) (EXC Y91) |
2005-2006 |
01 |
| 014 |
89042370 |
PAD, R/SEAT CUSH |
ST158 (06) (AM9) |
2005-2006 |
01 |
| 016 |
88954080 |
БОЛТ, R/SEAT BK CUSH LAT (M10X1.5X35) |
ST158 (06) (AM9) |
2003-2006 |
AR |
| 017 |
89043535 |
COVER, R/SEAT INR HGE FIN (GRAY) (I/B-OUTER) |
ST158 (06) (AM9, X88, Z88, 28I) |
2005-2006 |
01 |
| 017 |
89043536 |
COVER, R/SEAT INR HGE FIN (CASHMERE) (OUTER) |
ST158 (06) (AM9, X88, Z88, 27I) |
2005-2006 |
01 |
| 017 |
89043537 |
COVER, R/SEAT INR HGE FIN (EBONY) (I/B-OUTER) |
ST158 (06) (AM9, X88, 48I) |
2005-2006 |
01 |
| 018 |
89023870 |
РЕМЕНЬ БЕЗОПАСНОСТИ, ЗАДНЕЕ СИДЕНЬЕ CTR (BKL SI) (GRAY) (SINGLE BKL) |
ST158 (AM9, 28I) |
2005-2006 |
01 |
| 018 |
89023871 |
РЕМЕНЬ БЕЗОПАСНОСТИ, ЗАДНЕЕ СИДЕНЬЕ CTR (BKL SI) (EBONY) (SINGLE BKL) |
ST158 (AM9, 27I, 48I) |
2005-2006 |
01 |
| 019 |
88983554 |
LATCH, R/SEAT (35%) (I/B) (FLOOR LATCH) |
ST158 (AM9) |
2003-2006 |
01 |
| 020 |
89045529 |
FRAME, R/SEAT CUSH |
ST158 (06) (AM9, X88, Z88) |
2005-2006 |
01 |
| 021 |
88983559 |
ANCHOR, R/SEAT (LOWER) (W/BRACKET SPACER) |
ST158 (AM9) |
2003-2006 |
01 |
| 022 |
88981935 |
BRACKET, CHILD ST TOP STRP |
ST158 (AM9, X88, Z88, Z89) |
2003-2006 |
AR |
| 023 |
89043526 |
PANEL, R/SEAT TR (GRAY) (16.720) |
ST158 (06) (AM9, X88, Z88, 28I) |
2005-2006 |
02 |
| 023 |
89043527 |
PANEL, R/SEAT TR (CASHMERE) (16.720) |
ST158 (06) (AM9, X88, Z88, 27I) |
2005-2006 |
02 |
| 023 |
89043528 |
PANEL, R/SEAT TR (EBONY) (16.720) |
ST158 (06) (AM9, X88, Z88, 48I) |
2005-2006 |
02 |
| 025 |
03537772 |
ГАЙКА, M12X1.75, 10.6THK, 28 O.D., 10, 7111M (R/SEAT) (8.917)
|
2003-2006 |
08 |
|
| 026 |
15247488 |
COVER, R/SEAT RSR FIN (GRAY) |
ST158 (06) (28I) |
2005-2006 |
01 |
| 026 |
15247489 |
COVER, R/SEAT RSR FIN (EBONY) |
ST158 (27I, 48I) |
2006-2006 |
01 |
| 027 |
|
ГАЙКА, R/SEAT SUPT |
|
2004-2006 |
|
| 028 |
88954115 |
БОЛТ, R/SEAT CUSH FRM (4.8 X 9.5) (PAN SCREW, TAP) |
ST1 (06) (AM7, AM9) |
2003-2006 |
AR |
| 029 |
88979622 |
БОЛТ, R/SEAT RSR |
ST158 (06) (AM9) |
2006-2006 |
AR |
| 030 |
88954676 |
RISER, R/SEAT (EBONY) (O/B) |
ST158 (06) (AM9) |
2003-2006 |
01 |
| 031 |
89043532 |
PANEL, R/SEAT CUSH (16.720) |
ST158 (06) (AM9, X88, Z88, 28I) |
2005-2006 |
01 |
| 031 |
89043533 |
PANEL, R/SEAT CUSH (CASHMERE) (16.720) |
ST158 (06) (AM9, X88, Z88, 27I) |
2005-2006 |
01 |
| 031 |
89043534 |
PANEL, R/SEAT CUSH (EBONY) (16.720) |
ST158 (06) (AM9, X88, Z88, 48I) |
2005-2006 |
01 |
| 032 |
88949560 |
БОЛТ, R/SEAT (M5X0.8X10) (16.682) |
ST158 (06) (AM9) |
2003-2006 |
AR |
| 033 |
88983559 |
ANCHOR, R/SEAT (CHILD SEAT HOOK, O/B 35%) (LOWER) (W/BRACKET SPACER) |
ST158 (AM9) |
2003-2006 |
01 |
| 034 |
88983556 |
CABLE, R/SEAT BK CUSH LAT (FLOOR LATCH RELEASE) (35%) |
ST158 (AM9) |
2003-2006 |
01 |
| 035 |
89045967 |
COVER, R/SEAT INR HGE FIN (GRAY) (35%) (O/B INNER) |
ST158 (06) (AM9, X88, Z88, 28I) |
2005-2006 |
01 |
| 035 |
89046282 |
COVER, R/SEAT INR HGE FIN (EBONY) (35%) (O/B INNER) |
ST158 (06) (AM9, X88, Z88, 48I) |
2005-2006 |
01 |
| 036 |
88954699 |
HANDLE, R/SEAT RECL (TUMBLE) (35%) |
ST158 (06) (AM9) |
2003-2006 |
01 |
| 037 |
|
БОЛТ, R/SEAT RECL HDL |
|
2004-2006 |
|
| 038 |
89043520 |
COVER, R/SEAT OTR HGE FIN (GRAY) (35%) (O/B) |
ST158 (06) (AM9, X88, Z88, 28I) |
2005-2006 |
01 |
| 038 |
89043521 |
COVER, R/SEAT OTR HGE FIN (CASHMERE) |
ST158 (06) (AM9, X88, Z88, 27I) |
2005-2006 |
01 |
| 039 |
89041672 |
HINGE, R/SEAT BK CUSH OTR |
ST158 (AM9) |
2004-2006 |
01 |
| 040 |
89041673 |
HANDLE, R/SEAT BK CUSH LAT REL (INCLS CABLE) (35%) (FOR 2003 AND PRIORUSE T/W 89041672 HINGE) |
ST158 (06) (AM9) |
2003-2006 |
01 |
| 041 |
15208539 |
БОЛТ, D/SEAT RECL HDL (M4.2X1.4X20) (16.715) |
ST158 (AJ7, AM9, A95) |
2006-2006 |
AR |
| 042 |
88948904 |
RETAINER, R/SEAT CUSH CVR
| ST1 (AM9) |
2005-2006 |
06 |
|
| 043 |
88979586 |
PANEL, R/SEAT BK CUSH TR |
ST158 (06) (AM9) |
2004-2006 |
01 |
| 044 |
88979585 |
CLIP, R/SEAT BK CUSH LAT CBL |
ST158 (06) (AM9) |
2003-2006 |
AR |
