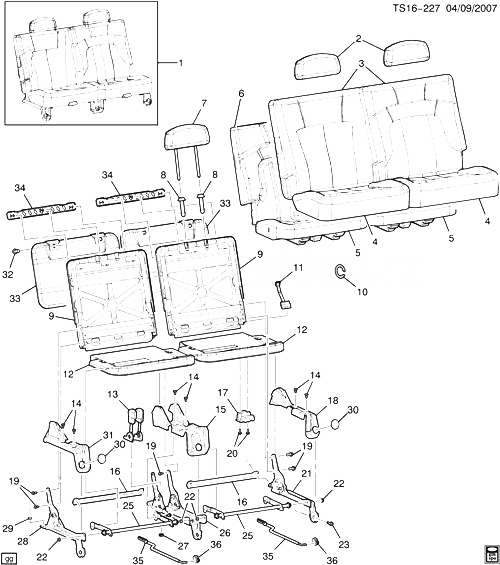

(TS16-227) - 2002-2006 ST158(06) ЗАДНЕЕ СИДЕНЬЕ #2 (AM7) CHEVROLET TRAILBLAZER EXT (2WD) 2006

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 SEAT, RR #2 2002-2006
003 19122228 COVER, R/SEAT #2 BK CUSH (EBONY) ST158 (06) (AM7, X88, 48H) 2006-2006 01
003 19122229 COVER, R/SEAT #2 BK CUSH (CASHMERE) ST158 (06) (AM7, X88, 27H) 2006-2006 01
003 19122230 COVER, R/SEAT #2 BK CUSH (GRAY) ST158 (06) (AM7, X88, 28H) 2006-2006 01
003 19122232 COVER, R/SEAT #2 BK CUSH (EBONY) ST158 (06) (AM7, X88, 48H) 2006-2006 01
003 19122233 COVER, R/SEAT #2 BK CUSH (CASHMERE) ST158 (06) (AM7, X88, 27H) 2006-2006 01
003 19122234 COVER, R/SEAT #2 BK CUSH (GRAY) ST158 (06) (AM7, X88, 28H) 2006-2006 01
003 19122244 COVER, R/SEAT #2 BK CUSH (EBONY) (USED ON VEHICLES WITHOUT FILLER PANEL) (FOR 1ST DES SEE 89042326) ST158 (06) (AM7, X88, Z88, 482) (2ND DES) 2006-2006 01
003 19122245 COVER, R/SEAT #2 BK CUSH (CASHMERE) (USED ON VEHICLES WITHOUT FILLER PANEL) (FOR 1ST DES SEE 89042328) ST158 (06) (AM7, X88, Z88, Z89, 272) (2ND DES) 2006-2006 01
003 19122246 COVER, R/SEAT #2 BK CUSH (GRAY) (USED ON VEHICLES WITHOUT FILLER PANEL) (FOR 1ST DES SEE 89042327) ST158 (06) (AM7, X88, Z88, Z89, 282) (2ND DES) 2006-2006 01
003 19122248 COVER, R/SEAT #2 BK CUSH (EBONY) (USED ON VEHICLES WITHOUT FILLER PANEL) (FOR 1ST DES SEE 89042322) ST158 (06) (AM7, X88, Z88, 482) (2ND DES) 2006-2006 01
003 19122249 COVER, R/SEAT #2 BK CUSH (CASHMERE) (USED ON VEHICLES WITHOUT FILLER PANEL) (FOR 1ST DES SEE 89042324) ST158 (06) (AM7, X88, Z88, Z89, 272) (2ND DES) 2006-2006 01
003 19122250 COVER, R/SEAT #2 BK CUSH (GRAY) (USED ON VEHICLES WITHOUT FILLER PANEL) (FOR 1ST DES SEE 89042323) ST158 (06) (AM7, X88, Z88, Z89, 282) (2ND DES) 2006-2006 01
003 89042322 COVER, R/SEAT #2 BK CUSH (EBONY) (USED ON VEHICLES W/FILLER PANEL) (FOR 2ND DES SEE 19122248) ST158 (06) (AM7, X88, Z88, 482) (1ST DES) 2006-2006 01
003 89042323 COVER, R/SEAT #2 BK CUSH (GRAY) (USED ON VEHICLES W/FILLER PANEL) (FOR 2ND DES SEE 19122250) ST158 (06) (AM7, X88, Z88, 282) (1ST DES) 2006-2006 01
003 89042324 COVER, R/SEAT #2 BK CUSH (CASHMERE) (USED ON VEHICLES W/FILLER PANEL) (FOR 2ND DES SEE 19122249) ST158 (06) (AM7, X88, Z88, 272) (1ST DES) 2006-2006 01
003 89042326 COVER, R/SEAT #2 BK CUSH (EBONY) (USED ON VEHICLES W/FILLER PANEL) (FOR 2ND DES SEE 19122244) ST158 (06) (AM7, X88, Z88, 482) (1ST DES) 2006-2006 01
003 89042327 COVER, R/SEAT #2 BK CUSH (GRAY) (USED ON VEHICLES W/FILLER PANEL) (FOR 2ND DES SEE 19122246) ST158 (06) (AM7, X88, Z88, 282) (1ST DES) 2006-2006 01
003 89042328 COVER, R/SEAT #2 BK CUSH (CASHMERE) (USED ON VEHICLES W/FILLER PANEL) (FOR 2ND DES SEE 19122245) ST158 (06) (AM7, X88, Z88, 272) (1ST DES) 2006-2006 01
004 89042290 COVER, R/SEAT #2 CUSH (EBONY) ST158 (06) (AM7, X88, 48H) 2005-2006 01
004 89042291 COVER, R/SEAT #2 CUSH (GRAY) ST158 (06) (AM7, X88, 28H) 2005-2006 01
004 89042292 COVER, R/SEAT #2 CUSH (CASHMERE) ST158 (06) (AM7, X88, 27H) 2005-2006 01
004 89042294 COVER, R/SEAT #2 CUSH (EBONY) ST158 (06) (AM7, X88, 48H) 2005-2006 01
004 89042295 COVER, R/SEAT #2 CUSH (GRAY) ST158 (06) (AM7, X88, 28H) 2005-2006 01
004 89042296 COVER, R/SEAT #2 CUSH (CASHMERE) ST158 (06) (AM7, X88, 27H) 2005-2006 01
004 89042330 COVER, R/SEAT #2 CUSH (EBONY) ST1 (AM7, X88, Z88, 482) 2005-2006 01
004 89042331 COVER, R/SEAT #2 CUSH (GRAY) ST1 (AM7, X88, Z88, Z89, 282) 2005-2006 01
004 89042332 COVER, R/SEAT #2 CUSH (CASHMERE) ST1 (AM7, X88, Z88, Z89, 272) 2005-2006 01
004 89042334 COVER, R/SEAT #2 CUSH (EBONY) ST1 (AM7, X88, Z88, 482) 2005-2006 01
004 89042335 COVER, R/SEAT #2 CUSH (GRAY) ST1 (AM7, X88, Z88, Z89, 282) 2005-2006 01
004 89042336 COVER, R/SEAT #2 CUSH (CASHMERE) ST1 (AM7, X88, Z88, Z89, 272) 2005-2006 01
005 89042288 PAD, R/SEAT #2 CUSH ST158 (AM7, X88, Z88, Z89) 2005-2006 02
006 89042287 PAD, R/SEAT #2 BK CUSH ST158 (AM7, X88, Z88, Z89) 2005-2006 02
007 88979363 PAD, R/SEAT H/RST ST158 (06) (AM7) 2002-2006 02
008 89043500 GUIDE, R/SEAT H/RST (GRAY) (W/BUTTON) ST1 (AM7, 28I) 2005-2006 02
008 89043500 GUIDE, R/SEAT H/RST (GRAY) (W/BUTTON) (LH/RH) ST158 (06) (AM9, X88, Z88, 28I) 2005-2006 02
008 89043501 GUIDE, R/SEAT H/RST (CASHMERE) (W/BUTTON) ST1 (AM7, 27I) 2005-2006 02
008 89043502 GUIDE, R/SEAT H/RST (EBONY) (W/BUTTON) ST158 (06) (AM9, X88, Z88, 48I) (EXC Z49) 2005-2006 01
008 89043502 GUIDE, R/SEAT H/RST (EBONY) (W/BUTTON) ST1 (AM7, 48I) 2005-2006 02
008 89043504 GUIDE, R/SEAT H/RST (GRAY) (W/O BUTTON) ST158 (06) (AM9, X88, Z88, 28I) 2005-2006 01
008 89043504 GUIDE, R/SEAT H/RST (GRAY) (W/O BUTTON) ST1 (AM7, 28I) 2005-2006 02
008 89043505 GUIDE, R/SEAT H/RST (CASHMERE) (W/O BUTTON) ST1 (AM7, 27I) 2005-2006 02
008 89043506 GUIDE, R/SEAT H/RST (EBONY) (W/O BUTTON) ST1 (AM7, 48I) 2005-2006 02
009 88979359 FRAME, R/SEAT #2 BK CUSH ST158 (06) (AM7) 2002-2006 02
010 89046281 RING, R/SEAT CUSH CVR HOG (15.035) ST158 2002-2006 AR
011 88979362 RETAINER, R/SEAT BK CUSH FIL PNL (CORD) ST1 (AM7) 2002-2006 02
012 88979368 PANEL, R/SEAT CUSH TR (16.716) ST158 (06) (AM7) 2002-2006 02
013 89023861 РЕМЕНЬ БЕЗОПАСНОСТИ, ЗАДНЕЕ СИДЕНЬЕ #2 (BKL SI) (GRAY) (BKL/BKL) ST1 (AM7, X88, Z88, Z89, 28I) 2005-2006 01
014 88954115 БОЛТ, R/SEAT CUSH FRM (4.8 X 9.5) (PAN SCREW, TAP) ST1 (06) (AM7, AM9) 2002-2006 AR
016 88979360 BAR, R/SEAT ADJR CR ST158 (06) (AM7) 2002-2006 02
017 88979371 HANDLE, R/SEAT #2 PULL ST1 (AM7) 2002-2006 02
018 89042309 COVER, R/SEAT LAT FIN (EBONY) (O/B) ST158 (06) (AM7, 27I, 48I) 2005-2006 01
018 89042310 COVER, R/SEAT LAT FIN (GRAY) (O/B) ST158 (06) (AM7, 28I) 2005-2006 01
021 19122153 LATCH, R/SEAT BK CUSH (DUMP) ST1 (AM7) 2006-2006 01
022 88979354 ГАЙКА, R/SEAT LAT ST1 (AM7) 2002-2006 04
023 11519940 БОЛТ, HEX W/CON WA, M12X1.75X34.5, 28 OD, 6202M, 4345M, TAP, TR-PT (R/SEAT #2 RSR) 2002-2006 03
025 88979353 ROD, R/SEAT LAT ST1 (AM7) 2002-2006 02
027 12474803 GROMMET, R/SEAT BK CUSH LAT (ID 16.20) (BRASS) (16.720) ST158 (06) (AM7) 2002-2006 01
028 19122152 LATCH, R/SEAT BK CUSH (DUMP) ST1 (AM7) 2006-2006 01
029 03537772 ГАЙКА, M12X1.75, 10.6THK, 28 O.D., 10, 7111M (R/SEAT #2 RSR) (8.917) 2002-2006 03
030 15110400 PLUG, R/SEAT BK CUSH C/BAR FIN CVR BOLT HOLE (16.717) ST158 (06) (AM7, 28I) 2005-2006 03
030 15110401 PLUG, R/SEAT BK CUSH C/BAR FIN CVR BOLT HOLE (16.717) ST158 (06) (AM7, 27I, 48I) 2005-2006 03
031 89042311 COVER, R/SEAT LAT FIN (EBONY) (O/B) ST158 (06) (AM7, 27I, 48I) 2005-2006 01
031 89042312 COVER, R/SEAT LAT FIN (GRAY) (O/B) ST158 (06) (AM7, 28I) 2005-2006 01
032 88983482 БОЛТ, R/SEAT BK CUSH FIL PNL ST1 (AM7) 2004-2006 04
033 89043532 PANEL, R/SEAT BK CUSH FIL (*KIT1) ST158 (06) (AM9, X88, Z88, 28H) 2005-2006 01
033 89043533 PANEL, R/SEAT BK CUSH FIL (CASHMERE) (*KIT1) ST158 (06) (AM9, X88, Z88, 27H) 2005-2006 01
033 89045448 PANEL, R/SEAT BK CUSH FIL (RH LH) (GRAY) (*KIT1) ST1 (AM7, X88, 28I) 2005-2006 02
033 89045451 PANEL, R/SEAT BK CUSH FIL (GRAY) (*KIT1) ST1 (AM7, X88, 28H, 282) 2005-2006 01
033 89045452 PANEL, R/SEAT BK CUSH FIL (GRAY) (*KIT1) ST1 (AM7, X88, 28H, 282) 2005-2006 01
033 89046138 PANEL, R/SEAT BK CUSH FIL (EBONY) (*KIT1) ST1 (AM7, X88, 48H) 2005-2006 01
033 89046138 PANEL, R/SEAT BK CUSH FIL (EBONY) (*KIT1) ST1 (AM7, X88, Z88, 482) 2005-2006 01
033 89046138 PANEL, R/SEAT BK CUSH FIL (EBONY) (*KIT1) ST1 (AM7, X88, Z88, Z89, 272) 2005-2006 01
033 89046138 PANEL, R/SEAT BK CUSH FIL (EBONY) (*KIT1) ST1 (AM7, X88, 27H) 2006-2006 01
033 89046139 PANEL, R/SEAT BK CUSH FIL (*KIT1) ST1 (AM7, X88, 48H) 2005-2006 01
033 89046139 PANEL, R/SEAT BK CUSH FIL (*KIT1) ST1 (AM7, X88, Z88, 482) 2005-2006 01
033 89046139 PANEL, R/SEAT BK CUSH FIL (*KIT1) ST1 (AM7, X88, Z88, Z89, 272) 2005-2006 01
033 89046139 PANEL, R/SEAT BK CUSH FIL (*KIT1) ST1 (AM7, X88, 27H) 2006-2006 01
034 89046136 PROTECTOR, R/SEAT #2 BK CUSH PNL EDGE (EBONY) (16.545) ST1 (06) (AM7, 272) 2005-2006 02
034 89046136 PROTECTOR, R/SEAT #2 BK CUSH PNL EDGE (EBONY) (16.545) ST1 (06) (AM7, 27H, 48H) 2005-2006 02
034 89046137 PROTECTOR, R/SEAT #2 BK CUSH PNL EDGE (GRAY) (16.545) ST1 (AM7, 28H, 282) 2005-2006 02
035 88983431 ROD, R/SEAT LAT (SEAT #2 RELEASE) (INCLS SLOTTED ROD ENDROD END CLIP 88983484 SERV SEPERATELY) ST1 (AM7, X88) 2002-2006 02
036 88983484 CLIP, R/SEAT BK CUSH LAT REL ROD ST158 (06) (AM7) 2002-2006 02
