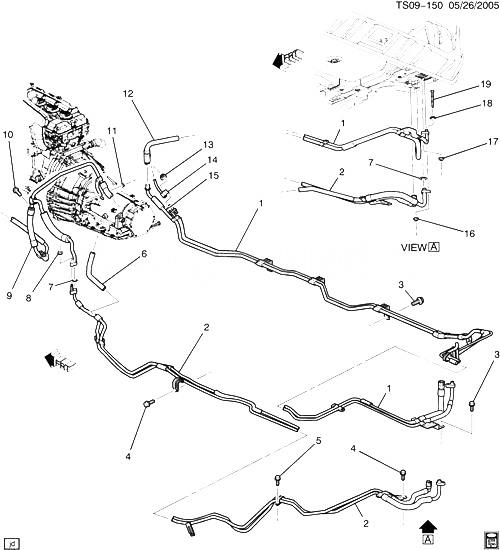

(TS09-150) - 2005-2006 ST158 ШЛАНГИ И ТРУБКИ/ПОДОГРЕВАТЕЛЬ ЧАСТЬ 2 ЗАДНИЙ (LL8/4.2S) CHEVROLET TRAILBLAZER EXT (2WD) 2006

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15113349 TUBE, AUX A/C EVPR (W/AUX HTR INL PIPE) (INCLS 15, 18, 19) (ACDelco #15-33010) (IF VEHICLE IS W/BLOCK FITTING AT HTR CORE IT ALSO REQUIRES 89023336 PIPE) ST158 (06) (CJ2, CJ3) 2004-2006 01
002 15293725 TUBE, AUX A/C CMPR (W/AUX HTR OTLT PIPE) (INCLS 5, 7) (REAR) (ACDelco #15-33386) (MAY ALSO REQUIRE 89023336 PIPE) ST158 (06) (CJ2, CJ3) 2004-2006 01
003 11609989 БОЛТ, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (AUX A/C EVPR TUBE) 2004-2006 06
004 11609989 БОЛТ, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (AUX A/C CMPR TUBE) 2004-2006 04
005 11609989 БОЛТ, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (PART OF 2) 2004-2006 01
006 15138451 HOSE, HTR OTLT (СМ. ГРУППУ 08.000 ШЛАНГИ И ТРУБКИ/ПОДОГРЕВАТЕЛЬ FRONT FOR DETAILED ILLUSTRATED VIEW) (CODE 8451, 9171, 5658) ST158 (06) (LL8, CJ2, CJ3) 2004-2006 01
007 02724966 SEAL, A/C CMPR CNDSR HOSE (25 MM OD X 17 MM ID) (3/4 INCH DIA) (PART OF 2) (FOR NON-CANADIAN ORDERS) (ACDelco #15-31101) ST1 (06-36) (CJ2, CJ3) 2004-2006 AR
008 11514596 ГАЙКА, HFH, M8X1.25, 17.9 OD, 738 THK, 13MM HEX, 10, ZF (A/C CMPR CNDSR HOSE) (8.915) (ACDelco #11514596) 2004-2006 01
009 15884821 HOSE, A/C CMPR CNDSR (СМ. ГРУППУ 09.000 СИСТЕМА ОХЛАЖДЕНИЯ КОНДИЦИОНЕРА FRONT FOR DETAILED ILLUSTRATED VIEW) (CODE 5276, 1911, 4475, 5061, 4821) (ACDelco #15-33279) ST158 (06) (LL8, CJ2, CJ3) 2004-2006 01
010 11519861 БОЛТ, HEX W/FL WA, M10X1.5X30, 19 THD, 20 OD, 9.8, 6280M, MACH, MAT-PT (AUX A/C CMPR TUBE) 2004-2006 01
011 11514596 ГАЙКА, HFH, M8X1.25, 17.9 OD, 738 THK, 13MM HEX, 10, ZF (AUX A/C CMPR TUBE) (8.915) (ACDelco #11514596) 2004-2006 01
012 VALVE, HTR WAT SHUTOFF (СМ. ГРУППУ 08.000 ШЛАНГИ И ТРУБКИ/ПОДОГРЕВАТЕЛЬ FRONT FOR DETAILED ILLUSTRATED VIEW) 2004-2006 01
013 11514596 ГАЙКА, HFH, M8X1.25, 17.9 OD, 738 THK, 13MM HEX, 10, ZF (PART OF 14) (8.915) (ACDelco #11514596) 2004-2006 01
014 15139726 TUBE, A/C EVPR (СМ. ГРУППУ 09.000 СИСТЕМА ОХЛАЖДЕНИЯ КОНДИЦИОНЕРА FRONT FOR DETAILED ILLUSTRATED VIEW) (INCLS 13) (ACDelco #15139726) ST158 (06) (CJ2, CJ3) 2004-2006 01
015 52474373 SEAL, A/C EVPR TUBE (19 MM OD X 11 MM ID) (1/2 INCH DIA) (PART OF 1, 14) (METAL/RUBBER) (19MM OD X 11MM ID, 1/2 IN DIA) (ACDelco #15-31055) ST1 (06-36) (CJ2, CJ3) 2004-2006 AR
016 11514596 ГАЙКА, HFH, M8X1.25, 17.9 OD, 738 THK, 13MM HEX, 10, ZF (A/C CMPR CNDSR HOSE) (8.915) (ACDelco #11514596) 2004-2006 02
017 11514596 ГАЙКА, HFH, M8X1.25, 17.9 OD, 738 THK, 13MM HEX, 10, ZF (A/C EVPR TUBE) (8.915) (ACDelco #11514596) 2004-2006 02
018 52474373 SEAL, A/C EVPR TUBE (19 MM OD X 11 MM ID) (1/2 INCH DIA) (PART OF 1) (METAL/RUBBER) (19MM OD X 11MM ID, 1/2 IN DIA) (ACDelco #15-31055) ST1 (06-36) (CJ2, CJ3) 2004-2006 AR
019 89022560 SCREEN, A/C EVPR TXV (PART OF 1) (ACDelco #15-75209) ST158 (CJ2, CJ3) 2004-2006 01
