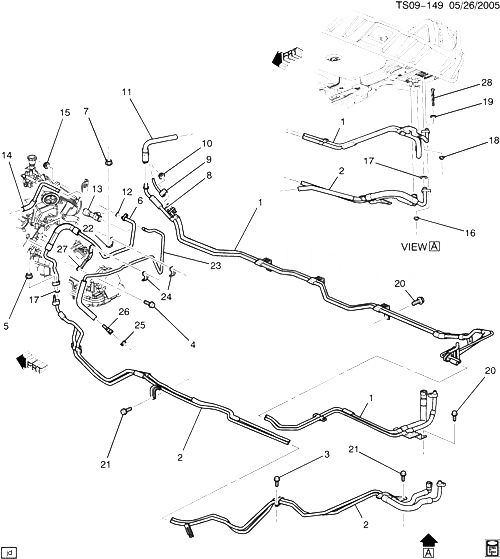

(TS09-149) - 2005-2006 ST158(06) ШЛАНГИ И ТРУБКИ/ПОДОГРЕВАТЕЛЬ ЧАСТЬ 2 ЗАДНИЙ (LH6/5.3M) CHEVROLET TRAILBLAZER EXT (2WD) 2006

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15113349 TUBE, AUX A/C EVPR (W/AUX HTR INL PIPE) (INCLS 8, 19, 28) (ACDelco #15-33010) (IF VEHICLE IS W/BLOCK FITTING AT HTR CORE IT ALSO REQUIRES 89023336 PIPE) ST158 (06) (CJ2, CJ3) 2004-2006 01
002 15293725 TUBE, AUX A/C CMPR (W/AUX HTR OTLT PIPE) (INCLS 3, 17) (REAR) (ACDelco #15-33386) ST158 (06) (CJ2, CJ3) 2005-2006 01
003 11609989 БОЛТ, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (PART OF 2) 2004-2006 01
004 11519861 БОЛТ, HEX W/FL WA, M10X1.5X30, 19 THD, 20 OD, 9.8, 6280M, MACH, MAT-PT (AUX A/C CMPR TUBE) 2004-2006 01
005 11514596 ГАЙКА, HFH, M8X1.25, 17.9 OD, 738 THK, 13MM HEX, 10, ZF (A/C CMPR CNDSR HOSE) (8.915) (ACDelco #11514596) 2004-2006 01
006 15161782 TUBE, A/C CMPR (AUX, LESS AUX HTR PIPE) (INCLS 12, 22, 24, 27) (*KIT1) (ACDelco #15-32243) ST158 (06) (LH6, CJ2, CJ3) 2005-2006 01
007 11514596 ГАЙКА, HFH, M8X1.25, 17.9 OD, 738 THK, 13MM HEX, 10, ZF (AUX A/C CMPR TUBE) (8.915) (ACDelco #11514596) 2004-2006 01
008 52474373 SEAL, A/C EVPR TUBE (19 MM OD X 11 MM ID) (1/2 INCH DIA) (PART OF 1, 9) (METAL/RUBBER) (19MM OD X 11MM ID, 1/2 IN DIA) (ACDelco #15-31055) ST1 (06-36) (CJ2, CJ3) 2004-2006 AR
009 15139726 TUBE, A/C EVPR (СМ. ГРУППУ 09.000 СИСТЕМА ОХЛАЖДЕНИЯ КОНДИЦИОНЕРА FOR DETAILED ILLUSTRATED VIEW) (INCLS 8, 10) (ACDelco #15139726) ST158 (06) (CJ2, CJ3) 2004-2006 01
010 11514596 ГАЙКА, HFH, M8X1.25, 17.9 OD, 738 THK, 13MM HEX, 10, ZF (PART OF 9) (8.915) (ACDelco #11514596) 2004-2006 01
011 VALVE, HTR WAT SHUTOFF (СМ. ГРУППУ 08.000 ШЛАНГИ И ТРУБКИ/ПОДОГРЕВАТЕЛЬ FRONT FOR DETAILED ILLUSTRATED VIEW) 2004-2006 01
012 02724966 SEAL, A/C CMPR TUBE (25 MM OD X 17 MM ID) (3/4 INCH DIA) (PART OF 6) (FOR NON-CANADIAN ORDERS) (*KIT1) (ACDelco #15-31101) ST158 (06) (LH6, CJ2, CJ3) 2005-2006 AR
013 15161789 TEE, AUX HTR INL HOSE (ENGINE SIDE) (*KIT1) ST158 (06) (LH6, CJ2, CJ3) 2005-2006 01
015 11514596 ГАЙКА, HFH, M8X1.25, 17.9 OD, 738 THK, 13MM HEX, 10, ZF (AUX A/C CMPR TUBE) (8.915) (ACDelco #11514596) 2004-2006 01
016 11514596 ГАЙКА, HFH, M8X1.25, 17.9 OD, 738 THK, 13MM HEX, 10, ZF (A/C CMPR CNDSR HOSE) (8.915) (ACDelco #11514596) 2004-2006 02
017 02724966 SEAL, A/C CMPR TUBE (25 MM OD X 17 MM ID) (3/4 INCH DIA) (PART OF 2) (FOR NON-CANADIAN ORDERS) (*KIT1) (ACDelco #15-31101) ST158 (06) (LH6, CJ2, CJ3) 2005-2006 AR
018 11514596 ГАЙКА, HFH, M8X1.25, 17.9 OD, 738 THK, 13MM HEX, 10, ZF (A/C EVPR TUBE) (8.915) (ACDelco #11514596) 2004-2006 02
019 52474373 SEAL, A/C EVPR TUBE (19 MM OD X 11 MM ID) (1/2 INCH DIA) (PART OF 1) (METAL/RUBBER) (19MM OD X 11MM ID, 1/2 IN DIA) (*KIT1) (ACDelco #15-31055) ST1 (06-36) (CJ2, CJ3) 2004-2006 AR
020 11609989 БОЛТ, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (AUX A/C EVPR TUBE) 2004-2006 06
021 11609989 БОЛТ, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (AUX A/C CMPR TUBE) 2004-2006 04
022 BRACKET, TUBE, AUX A/C CMPR (PART OF 6) (*KIT1) 2005-2006
023 15161783 HOSE, HTR OTLT (INCLS 25-26) (INTERMEDIATE TO AUX) (*KIT1) ST158 (06) (LH6, CJ2, CJ3) 2005-2006 01
024 CLAMP, TUBE, AUX A/C CMPR (PART OF 6) (*KIT1) 2005-2006
025 15012561 CLAMP, HOSE SPR, 27 NOM, 25.2 MIN-28.9 MAX, 15MM WIDE, BLACK (CLAMP, HTR OTLT HOSE (PART OF 23)) (*KIT1) (8.948) 2004-2006 01
026 15761641 CONNECTOR, HTR OTLT HOSE (PART OF 23) (*KIT1) ST158 (06) (LH6, CJ2, CJ3) 2005-2006 01
027 BRACKET, TUBE, AUX A/C CMPR (PART OF 6) (*KIT1) 2005-2006
028 89022560 SCREEN, A/C EVPR TXV (PART OF 1) (ACDelco #15-75209) ST158 (CJ2, CJ3) 2004-2006 01
K01 15139208 TUBE, AUX A/C CMPR (W/AUX HTR OTLT PIPE) (6, 12, 13, 17, 22-27) (FRT) (WITH QUICK CONNECT) ST158 (06) (LH6, CJ2, CJ3) 2005-2006 01
