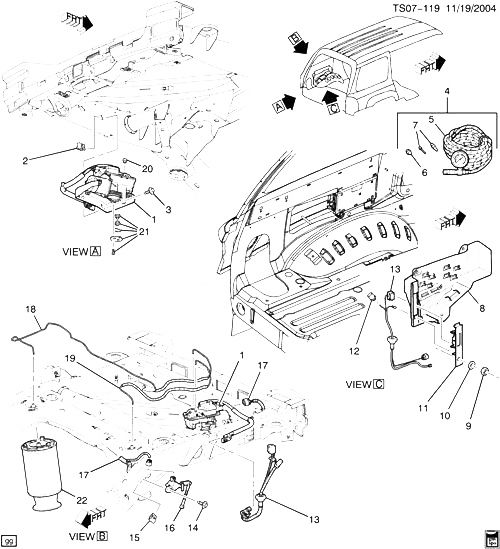

(TS07-119) - 2002-2006 ST158(06) СИСТЕМА УПРАВЛЕНИЯ УРОВНЕМ ПОДВЕСКИ (G67) CHEVROLET TRAILBLAZER EXT (2WD) 2006

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 19177907 COMPRESSOR, RR AIR SPR (INCLS 20, 21) ST158 (G67) 2002-2006 01
002 11516149 ГАЙКА, U, 8X1.25, MULTI THD, .08-4.0 THK PNL, PZ (RR AIR SPR CMPR) 2002-2006 02
003 11570082 БОЛТ, HFH, M8X1.25X22, 19 THD, 18 OD, 10.9, GMW3359 (RR AIR SPR CMPR) (ACDelco #11570082) 2002-2006 02
004 10433823 TOOL KIT, ACSRY (INCLS 5-7) (INCLS BAG, HOSE, CHUCK, NEEDLE, NOZZLE) ST1 2005-2006 01
005 HOSE, INFLR (PART OF 4) 2002-2006
006 CHUCK, INFLR HOSE (PART OF 4) 2002-2006
007 NEEDLE, INFLR HOSE (PART OF 4) 2002-2006
008 88944110 TRAY, TOOL STOW ST158 (06) (G67) 2002-2006 01
009 15031939 ГАЙКА, INFLR AIR SW (POA OF TOOL KIT) (HEX 1/2X32) (7.465) ST1 (G67) 2005-2006 01
010 11609679 WASHER, FLAT, M8 (INFLR AIR SW) 2002-2006 01
011 15052031 BEZEL, INFLR AIR SW ST1 (G67) 2005-2006 01
012 88892654 FILTER, AUTO LVL CONT AIR CMPR (PART OF 13) ST158 (G67) 2002-2006 01
013 15079763 SWITCH, INFLR AIR (INCLS 12) ST158 (06) (G67) 2002-2006 01
014 11517486 BOLT-HEX, M6X1X30, 19 THD, 17 OD, 9.8, 6280M (SN-ZN), MACH, P-PT (RR AIR SPR LVL SEN) 2002-2006 04
015 11518121 ГАЙКА, U, M6X1, MULTI THD, .5-4.0 THK PNL (RR AIR SPR LVL SEN) 2002-2006 04
016 25999461 ДАТЧИК, RR AIR SPR LVL ST1 (G67, W49, X88, Z88, Z89) (EXC B4U) 2006-2006 01
016 25999462 ДАТЧИК, RR AIR SPR LVL ST1 (G67, W49, X88, Z88, Z89) (EXC B4U) 2006-2006 01
017 HARNESS, CHAS RR WRG (СМ. ГРУППУ 02.000 ЖГУТ ПРОВОДОВ/ШАССИ FOR DETAILED ILLUSTRATED VIEW) 2002-2006
018 88987250 TUBE, AUTO LVL CONT AIR CMPR ST158 (06) 2005-2006 01
019 88987249 TUBE, AUTO LVL CONT AIR CMPR ST158 (06) 2005-2006 01
020 88892653 FITTING, AUTO LVL CONT AIR CMPR TUBE (PART OF 1) ST158 (G67) 2002-2006 03
021 COMPRESSOR KIT, AIR (PART OF 1) 2003-2006
022 25815604 ПРУЖИНА, RR AIR ST1 (G67, 8JN, 9JN) 2004-2006 02
