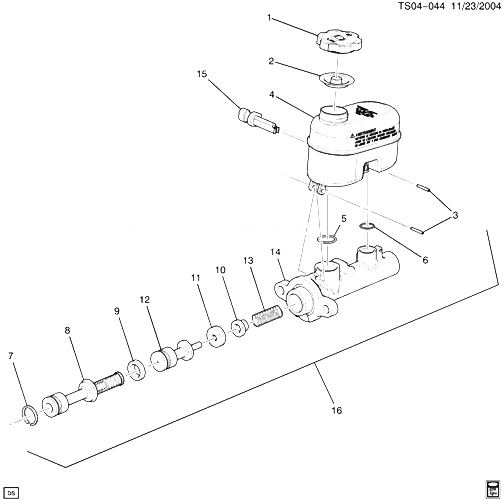

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
22688449 |
CAP, BRK M/CYL RSVR (INCLS 2)
| ST1 (06) (JF8) |
2006-2008 |
01 |
|
| 002 |
|
DIAPHRAGM, BRK M/CYL RESVR (PART OF 1) |
|
2003-2008 |
|
| 003 |
|
PIN, BRK M/CYL RESVR SPRING (PART OF 4) |
|
2003-2008 |
|
| 004 |
18060796 |
RESERVOIR, BRK M/CYL (INCLS 3, 5, 6) |
ST1 (06) (JF8) |
2006-2008 |
01 |
| 005 |
|
O-RING, BRK M/CYL RESVR (PART OF 4) |
|
2003-2008 |
|
| 006 |
|
O-RING, BRK M/CYL RESVR (PART OF 4) |
|
2003-2008 |
|
| 007 |
|
RING, BRK M/CYL PISTON RET |
|
2003-2008 |
|
| 008 |
|
PISTON, BRK M/CYL PRIMARY |
|
2003-2008 |
|
| 009 |
|
SEAL, BRK M/CYL PRIMARY |
|
2003-2008 |
|
| 010 |
|
RETAINER, SEC PISTON SPRING |
|
2003-2008 |
|
| 011 |
|
SEAL, BRK M/CYL SECONDARY |
|
2003-2008 |
|
| 012 |
|
PISTON, BRK M/CYL SECD |
|
2006-2008 |
|
| 013 |
|
ПРУЖИНА, SECONDARY PISTON |
|
2003-2008 |
|
| 014 |
|
BODY, BRK M/CYL |
|
2003-2008 |
|
| 015 |
18012741 |
SWITCH, BRK FLUID LVL IND (ACDelco #18012741) |
ST1 (JF8) |
2005-2008 |
01 |
| 016 |
15142479 |
CYLINDER, BRK MAS (INCLS 1-15) |
ST1 (06) (JF8) |
2006-2008 |
01 |
