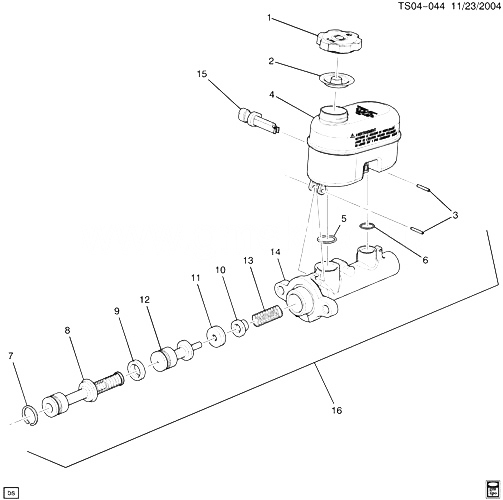

(TS04-044) - 2003-2008 ST ГЛАВНЫЙ ТОРМОЗНОЙ ЦИЛИНДР CHEVROLET TRAILBLAZER EXT (2WD) 2006

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 22688449 CAP, BRK M/CYL RSVR (INCLS 2) ST1 (06) (JF8) 2006-2008 01
002 DIAPHRAGM, BRK M/CYL RESVR (PART OF 1) 2003-2008
003 PIN, BRK M/CYL RESVR SPRING (PART OF 4) 2003-2008
004 18060796 RESERVOIR, BRK M/CYL (INCLS 3, 5, 6) ST1 (06) (JF8) 2006-2008 01
005 O-RING, BRK M/CYL RESVR (PART OF 4) 2003-2008
006 O-RING, BRK M/CYL RESVR (PART OF 4) 2003-2008
007 RING, BRK M/CYL PISTON RET 2003-2008
008 PISTON, BRK M/CYL PRIMARY 2003-2008
009 SEAL, BRK M/CYL PRIMARY 2003-2008
010 RETAINER, SEC PISTON SPRING 2003-2008
011 SEAL, BRK M/CYL SECONDARY 2003-2008
012 PISTON, BRK M/CYL SECD 2006-2008
013 ПРУЖИНА, SECONDARY PISTON 2003-2008
014 BODY, BRK M/CYL 2003-2008
015 18012741 SWITCH, BRK FLUID LVL IND (ACDelco #18012741) ST1 (JF8) 2005-2008 01
016 15142479 CYLINDER, BRK MAS (INCLS 1-15) ST1 (06) (JF8) 2006-2008 01
