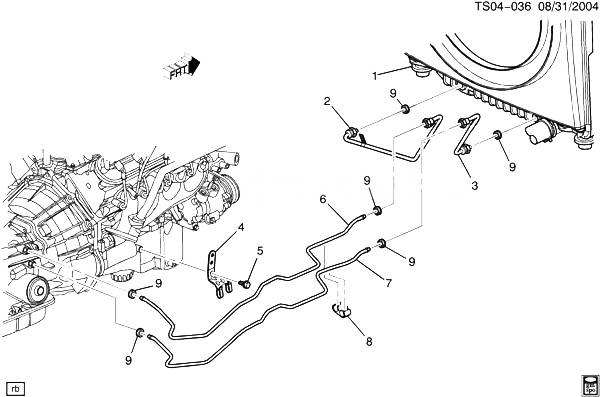

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
|
RADIATOR, (СМ. ГРУППУ 01.000 РАДИАТОР В СБОРЕ FOR DETAILED ILLUSTRATED VIEW) |
|
2003-2009 |
|
| 002 |
15817513 |
PIPE, TRANS FLUID CLR OTLT (FROM RADIATOR TO CONNECTOR) (INCLS 9) (ACDelco #15817513) |
ST1 (06) (LH6, M30, CJ2, CJ3, OKL) |
2005-2006 |
01 |
| 003 |
15817499 |
PIPE, TRANS FLUID CLR INL (FROM RADIATOR TO CONN) (INCLS 9) (CODE UNK) (ACDelco #15817499) |
ST1 (LH6, M30, CJ2, CJ3) |
2006-2008 |
01 |
| 004 |
15176225 |
CLIP, TRANS FLUID CLR PIPE (STEEL, HAS 2 PIPE HOLDERS) |
ST1 (LH6, LS2) |
2005-2009 |
01 |
| 005 |
11509640 |
БОЛТ, HEX W/CON WA, M8X1.25X16, 9.8, PZOR, 17.0-OD, W/DOG PT, TT WASH (TRANS FLUID CLR PIPE CLIP) |
|
2003-2009 |
01 |
| 006 |
15817516 |
PIPE, TRANS FLUID CLR OTLT (FROM QUICK CONNECT TO TRANS) (INCLS 9) |
ST1 (06) (LH6, LS2, M30, M70) |
2006-2009 |
01 |
| 007 |
15817502 |
PIPE, TRANS FLUID CLR INL (INCLS 9) |
ST1 (06) (LH6, LS2, M30, M70) |
2006-2009 |
01 |
| 008 |
15199031 |
CLIP, TRANS FLUID CLR PIPE (LINE TO LINE) |
ST1 (06) (LH6, LS2, M30, M70) |
2006-2009 |
01 |
| 009 |
15052228 |
CAP, TRANS FLUID CLR PIPE CONN (PART OF 2, 3, 6, 7) (PLASTIC RETAINER) (ACDelco #15052228)
| ST1 |
2005-2009 |
AR |
|
