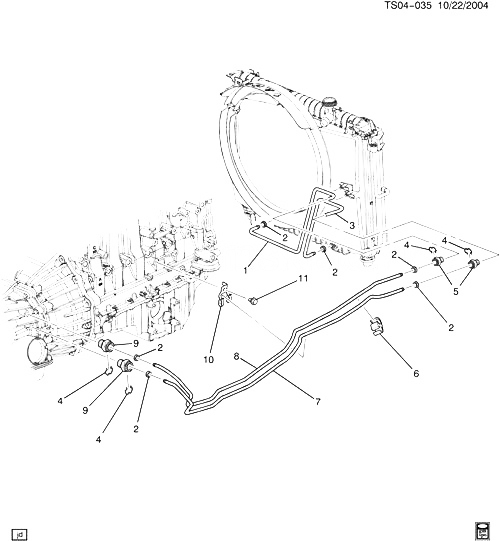

(TS04-035) - 2002-2009 ST АВТОМАТИЧЕСКАЯ КОРОБКА ПЕРЕДАЧ ТРУБКИ МАСЛЯНОГО РАДИАТОРА (LL8/4.2S) CHEVROLET TRAILBLAZER EXT (2WD) 2006

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15817514 PIPE, TRANS FLUID CLR OTLT (FROM RADIATOR TO CONNECTOR) (INCLS 2, 4, 5) (ACDelco #15817514) ST1 (LL8, M30, CJ2, CJ3) 2005-2009 01
002 15052228 CAP, TRANS FLUID CLR PIPE CONN (PART OF 1, 3, 7, 8) (PLASTIC RETAINER) (ACDelco #15052228) ST1 2005-2009 AR
003 15817500 PIPE, TRANS FLUID CLR INL (FROM RADIATOR TO QUICK CONNECT) (INCLS 2, 4, 5) (ACDelco #15817500) ST1 (06-36) (LL8, M30, CJ2, CJ3) 2002-2008 01
004 24205103 RETAINER, TRANS FLUID CLR PIPE FTG (PART OF 1, 3, 9) (EXPANDING SPRING WIRE) (ACDelco #24205103) ST1 2005-2009 04
005 CONNECTOR, TRANS FLUID CLR PIPE (PART OF 1, 3) 2002-2009
006 15068848 CLIP, TRANS FLUID CLR PIPE (LINE TO LINE) (HOLDS 2-9.5MM (3/8) DIA PIPES, CLIP TOP) ST1 (LL8, M30) 2002-2009 01
007 15817501 PIPE, TRANS FLUID CLR INL (FROM QUICK CONNECT TO TRANS) (INCLS 2) (ACDelco #15817501) ST1 (LL8, M30) 2005-2009 01
008 15817515 PIPE, TRANS FLUID CLR OTLT (FROM QUICK CONNECT TO TRANS) (INCLS 2) (ACDelco #15817515) ST1 (LL8, M30) 2005-2009 01
009 24233366 FITTING, TRANS FLUID CLR PIPE (INCLS 4) (INCLS O-RING) (1/4-18 NPS THD) (QUICK CONN, NON BALL CK INCLS RETAINER, TRANS END) (STL BODY) (ACDelco #24233366) ST1 2005-2007 02
010 15070508 CLIP, TRANS FLUID CLR PIPE (LINE TO ENGINE) ST1 (LL8, M30) 2002-2009 01
011 11509640 БОЛТ, HEX W/CON WA, M8X1.25X16, 9.8, PZOR, 17.0-OD, W/DOG PT, TT WASH (TRANS FLUID CLR PIPE CLIP) 2002-2009 01
