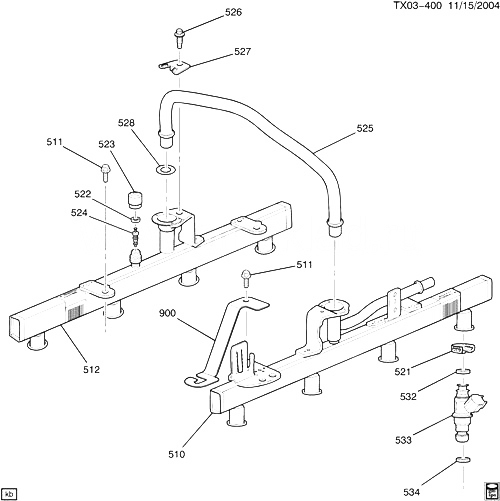

(TX03-400) - 2005-2006 ST РАМА ТОПЛИВНОГО ИНЖЕКТОРА (LH6/5.3M) CHEVROLET TRAILBLAZER EXT (2WD) 2006

Поз.НомерОписаниеПрименениеНоменклатураКол-во
510 12592187 RAIL, M/PORT F/INJN FUEL ST1 (LH6) 2006-2006 01
511 12580910 БОЛТ, F/INJR DRVR MDL ST1 (LH6) 2005-2006 04
512 12592186 RAIL, M/PORT F/INJN FUEL (INCLS 522-524) ST1 (LH6) 2006-2006 01
521 RETAINER, F/INJR (PART OF 533) (*KIT1) 2005-2006
522 SEAL, F/PMP CHK VLV (PART OF 512) 2005-2006
523 CAP, FUEL PRESS SERV VLV (PART OF 512) 2005-2006
524 VALVE, FUEL PRESS SERV (PART OF 512) 2005-2006
525 TUBE, F/INJN FUEL RL C/OVR 2005-2006
526 БОЛТ, F/INJN FUEL RL C/OVR TUBE RET (PART OF 527) 2005-2006
527 89017590 RETAINER KIT, F/INJN FUEL RL C/OVR TUBE (INCLS 526) ST1 (LH6) 2005-2006 01
528 17113552 SEAL KIT, F/INJN FUEL RL (ACDelco #17113552) ST1 (LH6) 2005-2006 01
532 SEAL, F/INJN FUEL RL (O RING) (PART OF 533) (*KIT2) 2005-2006
533 12580681 INJECTOR, SEQ M/PORT FUEL (INCLS INJECTOR, RETAINER, SEALS) (INCLS 521, 532, 534) (ACDelco #217-1621) ST1 (LH6) 2005-2006 08
534 SEAL, F/INJR (O RING) (PART OF 533) (*KIT2) 2005-2006
900 12593800 BRACKET, F/INJN FUEL RL ST1 (LH6) 2006-2006 01
K01 12570620 RETAINER KIT, F/INJR (INCLS 521) (W/ 8 RETAINERS) (ACDelco #12570620) ST1 (LH6) 2005-2006 01
K02 12587147 SEAL KIT, F/INJR (O RING) (INCLS 532, 534) (W/ 8 UPPER 8 LOWER SEALS) (ACDelco #217-1588) ST1 (LH6) 2005-2006 01
