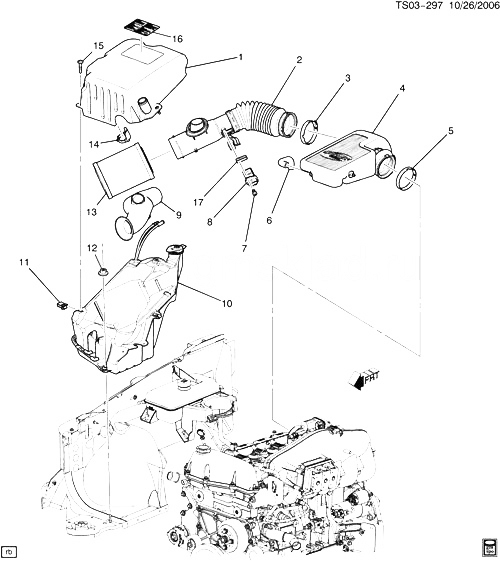

(TS03-297) - 2006-2009 ST1 СИСТЕМА ВПУСКА ВОЗДУХА (LL8/4.2S) CHEVROLET TRAILBLAZER EXT (2WD) 2006

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15810293 HOUSING, A/CL (INCLS LABEL, BOLT, SHIELD) (INCLS 15, 16) ST1 (LL8, K18) 2006-2007 01
001 15810294 HOUSING, A/CL (INCLS 15, 16) (INCLS BOLT, LABEL, HOUSING) ST1 (LL8) (EXC K18) 2006-2007 01
002 15810291 DUCT, A/CL OTLT ST1 (LL8) (EXC K18) 2006-2007 01
002 15810292 DUCT, A/CL OTLT ST1 (LL8, K18) 2006-2009 01
003 15810289 CLAMP, A/CL OTLT DUCT ST1 (LL8) 2006-2009 01
004 15899457 RESONATOR, A/CL (INCLS 5, 6) ST1 (LL8) 2006-2009 01
005 15045899 CLAMP, A/CL OTLT DUCT (PART OF 4) ST1 (LL8) 2006-2009 01
006 24577310 HOSE, PCV (CAM COVER TO AIR CLEANER) (PART OF 4) ST1 (LL8) 2006-2009 01
007 11900491 БОЛТ, MASS AIRFLOW SEN (4 X 1.8 X 12MM) (9.262) ST1 (LL8) 2006-2006 02
007 92138912 БОЛТ, MASS AIRFLOW SEN (60 X 25) (3.407) ST1 (LL8) 2006-2009 02
008 15865791 ДАТЧИК, MASS AIRFLOW (W/INT AIR TEMP SEN) (INCLS 17) (MASS AIRFLOW SENSOR LABELED 5791 LESS GASKET) (ACDelco #213-4222) ST1 (LL8) 2006-2009 01
009 15149664 SNORKEL, A/CL ST1 (LL8) 2006-2009 01
010 CONTAINER, WSWA SOLV (W/PUMP) (СМ. ГРУППУ 16.000 ЕМКОСТЬ/СТЕКЛООЧИСТИТЕЛЬ FOR DETAILED ILLUSTRATED VIEW) 2006-2009
011 11516372 ГАЙКА, U-TYPE, M5X1, MULTI THD, 2.0-5.0 PNL THK, PZ (WSWA SOLV CNTNR) 2006-2009 03
012 11514596 ГАЙКА, HFH, M8X1.25, 17.9 OD, 738 THK, 13MM HEX, 10, ZF (A/CL) (8.915) (ACDelco #11514596) 2006-2009 02
013 15036141 ЭЛЕМЕНТ, ВОЗДУШНЫЙ ФИЛЬТР (ACDelco #15036141) ST1 (LL8) 2006-2009 01
013 19114119 ЭЛЕМЕНТ, ВОЗДУШНЫЙ ФИЛЬТР (ACDelco #A2014CF) (DURAPACK) (BULK PKG, QTY 6) ST1 (LL8) 2006-2008 01
014 SHIELD, A/CL SI (PART OF 1) 2006-2009
015 15045901 БОЛТ, A/CL HSG (PART OF 1) ST1 (LL8) 2006-2009 03
016 15103173 LABEL, INFL RST M/FUNC CAUTION NTC (PART OF 1) (ENGLISH/FRENCH) (MUST HAVE VIN# WHEN ORDERING) ST1 (06) 2006-2009 01
017 15813321 ПРОКЛАДКА, MASS AIRFLOW SEN (PART OF 8) (RECTANGULAR) (GASKET IS POA TO MAF SENSOR) ST1 (LL8) 2006-2009 01
