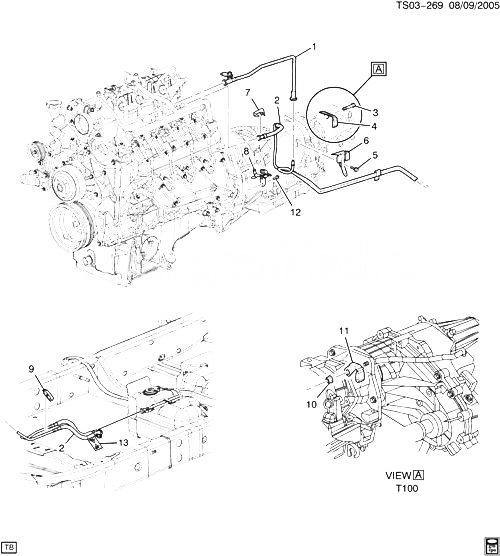

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
12592088 |
TUBE, EVAP EMIS CNSTR PURGE |
ST1 (LH6, LS2) |
2005-2006 |
01 |
| 002 |
25829655 |
PIPE, FUEL FEED EVAP EMIS RTN FRT (INCLS 8, 9, 13) |
ST1 (LH6) |
2005-2006 |
01 |
| 003 |
24233360 |
БОЛТ, T/CV HSG (M10X1.5X45) (TORX) (ACDelco #24233360) |
ST1 (M30) |
2005-2009 |
08 |
| 004 |
15038808 |
CLIP, FUEL FEED EVAP EMIS RTN FRT PIPE |
ST155, 158 (M30, M70) |
2006-2006 |
01 |
| 005 |
11516703 |
БОЛТ, HEX, M4.8X1.6X13, 20 OD, 6010M MAT, 6047M FIN (FUEL FEED EVAP EMIS RTN PIPE CLIP) (8.977) |
|
2005-2009 |
01 |
| 006 |
15175431 |
CLIP, FUEL FEED EVAP EMIS RTN FRT PIPE |
S155, 158 (M30, M70) |
2006-2006 |
01 |
| 007 |
22717568 |
RETAINER, FUEL FEED HOSE CONN (3/8 INCH QUICK CONNECT RETAINER CLIP) |
ST1 (LH6, LL8, LS2) |
2005-2009 |
01 |
| 008 |
15103714 |
BRACKET, F/INJN FUEL FEED RTN PIPE (PART OF 2) |
ST1 (LH6, LS2) |
2006-2006 |
01 |
| 009 |
15168645 |
CLIP, FUEL FEED EVAP EMIS RTN HOSE (PART OF 2) (RETAINER) |
ST1 (LL8, LH6, LS2) |
2005-2006 |
01 |
| 010 |
11514597 |
ГАЙКА, HFH, 10X1.5 THD, 9.8 THK, 21.8 OD, 510M (10) ZF 7111M (TRFER CASE) (2.383)
|
2005-2009 |
01 |
|
| 012 |
11518627 |
БОЛТ, HFH, M10X1.5X45, 15MM SOCKET, 10.9, GMW3359 (F/INJN FUEL FEED) (ACDelco #11518627) |
|
2005-2009 |
07 |
| 013 |
|
LABEL, FUEL FEED PIPE WRNG (PART OF 2) |
|
2006-2009 |
|
