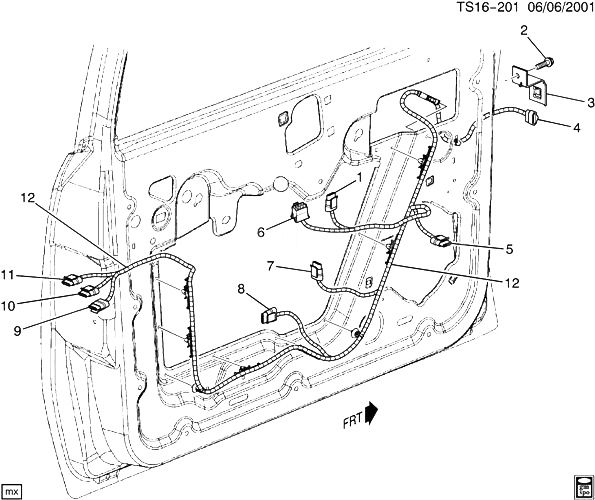

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
12125636 |
CONNECTOR, MDL-P/W CONT (PART OF 12) (BLACK) (4-WAY FEMALE) (W/LEADS) (12.243) (ACDelco #PT548) |
ST1 |
2002-2009 |
01 |
| 002 |
11517518 |
БОЛТ, HFH, M6X1X20, 17.9 THD, 14.2 O.D., 9.8, TIN ZN (FRT S/D DR WRG HARN BRKT) (ACDelco #11517518)
|
2002-2009 |
02 |
|
| 003 |
15183876 |
BRACKET, FRT S/D DR WRG HARN |
ST1 |
2005-2009 |
01 |
| 003 |
15183877 |
BRACKET, FRT S/D DR WRG HARN |
ST1 |
2005-2009 |
01 |
| 004 |
15306408 |
CONNECTOR, INLINE-TO BODY HARN (LH, RH FRT DR) (PART OF 12) (9-WAY FEMALE W/LEADS) (W/12 HOLES) (ACDelco #PT1462) |
ST1 |
2006-2008 |
02 |
| 005 |
12101825 |
CONNECTOR, SPKR-RDO (FRT RR DRS, INDEX TAB CTR CAVITY AB) (PART OF 12) (BLACK) (2-WAY FEMALE) (W/LEADS) (2.535) (ACDelco #PT217) |
ST1 (EXC UQA) |
2006-2009 |
04 |
| 005 |
12117323 |
CONNECTOR, SPKR-RDO (RR DR) (PART OF 12) (BLUE) (2-WAY FEMALE) (W/O LEADS) (10.275) (ACDelco #PT456) |
ST1 (UQA) |
2006-2009 |
02 |
| 005 |
12125690 |
CONNECTOR, SPKR-RDO (I/P) (PART OF 12) (GREEN) (2-WAY FEMALE) (W/LEADS) (14.691) (ACDelco #PT601) |
ST1 (UQA) |
2005-2009 |
02 |
| 005 |
88987981 |
CONNECTOR, SPKR-RDO (FRT DR) (PART OF 12) (NATURAL) (2-WAY FEMALE) (W/LEADS) (4.589) (ACDelco #PT1769) |
ST1 |
2006-2009 |
02 |
| 007 |
88988609 |
CONNECTOR, MOT-WDO REG (PART OF 12) (GRAY) (2-WAY FEMALE) (W/LEADS) (10.783) (ACDelco #PT2072) |
ST1 |
2002-2008 |
04 |
| 008 |
15306362 |
CONNECTOR, MDL-INFL RST SI IMP SEN (BLACK TIP) (PART OF 12) (YELLOW) (2-WAY FEMALE GT150 W/LEADS) (14.865) (ACDelco #PT1414) |
ST1 |
2005-2006 |
01 |
| 009 |
12101856 |
CONNECTOR, SW-DR LK CYL (PART OF 12) (GREEN) (2-WAY FEMALE) (W/LEADS) (OUTSIDE) (2.535) (ACDelco #PT248) |
ST1 |
2002-2008 |
01 |
| 010 |
|
CONNECTOR, MOT-DR LK ACTR (PART OF 12) |
|
2002-2009 |
|
| 011 |
15306406 |
CONNECTOR, SW-SI WDO M/FUNC (PART OF 12) (GRAY) (2-WAY FEMALE) (W/LEADS) (ACDelco #PT1461) |
ST1 |
2002-2008 |
01 |
| 011 |
15306417 |
CONNECTOR, SW-SI WDO M/FUNC (PART OF 12) (BLUE) (2-WAY FEMALE) (ACDelco #PT1466) |
ST1 |
2002-2006 |
01 |
| 012 |
15240039 |
HARNESS, FRT S/D DR WRG (INCLS 1, 4-11) (HAS BLACK 2-WAY CONN ON SIDE IMPACT SENSOR. FOR 2ND DES SEE 15269692.) |
ST1 (ASF) (EXC UQA) (1ST DES) |
2006-2006 |
01 |
| 012 |
15240039 |
HARNESS, FRT S/D DR WRG (INCLS 1, 4-11) (HAS BLACK 2-WAY CONN ON SIDE IMPACT SENSOR. FOR 2ND DES SEE 15269692.) |
ST1 (EXC ASF, UQA) (1ST DES) |
2006-2006 |
01 |
| 012 |
15240041 |
HARNESS, FRT S/D DR WRG (INCLS 1, 4-11) (HAS BLACK 2-WAY CONN ON SIDE IMPACT SENSOR. FOR 2ND DES SEE 15269694) |
ST1 (ASF) (EXC UA2, UA6, UQA) (1ST DES) |
2006-2006 |
01 |
| 012 |
15240041 |
HARNESS, FRT S/D DR WRG (INCLS 1, 4-11) (HAS BLACK 2-WAY CONN ON SIDE IMPACT SENSOR. FOR 2ND DES SEE 15269694.) |
ST1 (ASF, UA2, UA6) (EXC UQA) (1ST DES) |
2006-2006 |
01 |
| 012 |
15240043 |
HARNESS, FRT S/D DR WRG (INCLS 1, 4-11) (HAS BLACK 2-WAY CONN ON SIDE IMPACT SENSOR. FOR 2ND DES SEE 15913485.) |
ST1 (ASF, UA2, UA6, UQA) (1ST DES) |
2006-2006 |
01 |
| 012 |
15240043 |
HARNESS, FRT S/D DR WRG (INCLS 1, 4-11) (HAS BLACK 2-WAY CONN ON SIDE IMPACT SENSOR. FOR 2ND DES SEE 15913485.) |
ST1 (ASF, UQA) (EXC UA2, UA6) (1ST DES) |
2006-2006 |
01 |
| 012 |
15240044 |
HARNESS, FRT S/D DR WRG (INCLS 1, 4-11) (HAS BLACK 2-WAY CONN ON SIDE IMPACT SENSOR. FOR 2ND DES SEE 15269697.) |
ST1 (ASF, UQA) (1ST DES) |
2006-2006 |
01 |
| 012 |
15240044 |
HARNESS, FRT S/D DR WRG (INCLS 1, 4-11) (HAS BLACK 2-WAY CONN ON SIDE IMPACT SENSOR. FOR 2ND DES SEE 15269697.) |
ST1 (UQA) (EXC ASF) (1ST DES) |
2006-2006 |
01 |
| 012 |
15240047 |
HARNESS, FRT S/D DR WRG (INCLS 1, 4-11) |
ST1 (06-36) (UA2, UA6) (EXC ASF, UQA) |
2005-2006 |
01 |
| 012 |
15240047 |
HARNESS, FRT S/D DR WRG (INCLS 1, 4-11) |
ST1 (06-36) (EXC ASF, UA2, UA6, UQA) |
2006-2006 |
01 |
| 012 |
15240049 |
HARNESS, FRT S/D DR WRG (INCLS 1, 4-11) |
ST1 (06-36) (UA2, UA6, UQA) (EXC ASF) |
2005-2006 |
01 |
| 012 |
15240049 |
HARNESS, FRT S/D DR WRG (INCLS 1, 4-11) |
ST1 (06-36) (UQA) (EXC ASF, UA2, UA6) |
2005-2006 |
01 |
| 012 |
15269697 |
HARNESS, FRT S/D DR WRG (INCLS 1, 4-11) (HAS NATURAL 2 WAY CONN ON SIDE IMPACT SENSOR. FOR 1ST DES SEE 15240044.) |
ST1 (06) (UQA) (EXC ASF) (2ND DES) |
2006-2006 |
01 |
| 012 |
15269697 |
HARNESS, FRT S/D DR WRG (INCLS 1, 4-11) (HAS NATURAL 2 WAY CONN ON SIDE IMPACT SENSOR. FOR 1ST DES SEE 15240044.) |
ST1 (ASF, UQA) (2ND DES) |
2006-2006 |
01 |
| 012 |
15913481 |
HARNESS, FRT S/D DR WRG (INCLS 1, 4-11) (HAS NATURAL 2 WAY CONN ON SIDE IMPACT SENSOR. FOR 1ST DES SEE 15240039.) |
ST1 (06) (ASF) (EXC UQA) (2ND DES) |
2006-2006 |
01 |
| 012 |
15913481 |
HARNESS, FRT S/D DR WRG (INCLS 1, 4-11) (HAS NATURAL 2 WAY CONN ON SIDE IMPACT SENSOR. FOR 1ST DES SEE 15240039.) |
ST1 (06) (EXC ASF, UQA) (2ND DES) |
2006-2006 |
01 |
| 012 |
15913483 |
HARNESS, FRT S/D DR WRG (INCLS 1, 4-11) (HAS NATURAL 2 WAY CONN ON SIDE IMPACT SENSOR. FOR 1ST DES SEE 15240041.) |
ST1 (ASF) (EXC UA2, UA6, UQA) (2ND DES) |
2006-2006 |
01 |
| 012 |
15913483 |
HARNESS, FRT S/D DR WRG (INCLS 1, 4-11) (HAS NATURAL 2 WAY CONN ON SIDE IMPACT SENSOR. FOR 1ST DES SEE 15240041.) |
ST1 (ASF, UA2, UA6) (EXC UQA) (2ND DES) |
2006-2006 |
01 |
| 012 |
15913485 |
HARNESS, FRT S/D DR WRG (INCLS 1, 4-11) (HAS NATURAL 2 WAY CONN ON SIDE IMPACT SENSOR. FOR 1ST DES SEE 15240043.) |
ST1 (ASF, UA2, UA6, UQA) (2ND DES) |
2006-2006 |
01 |
| 012 |
15913485 |
HARNESS, FRT S/D DR WRG (INCLS 1, 4-11) (HAS NATURAL 2 WAY CONN ON SIDE IMPACT SENSOR. FOR 1ST DES SEE 15240043.) |
ST1 (ASF, UQA) (EXC UA2, UA6) (2ND DES) |
2006-2006 |
01 |
