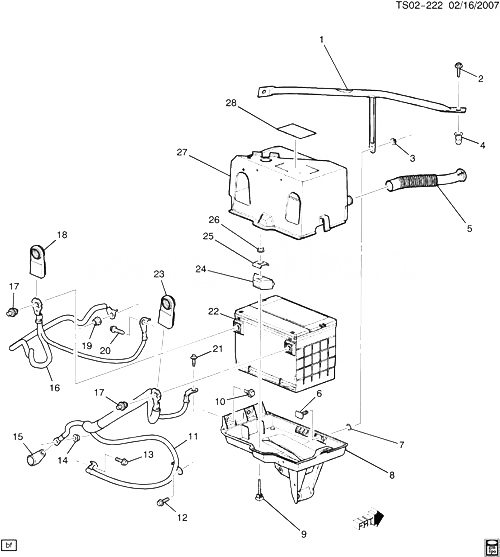

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15839150 |
BRACE, BAT TRAY
| ST1 |
2002-2006 |
01 |
|
| 002 |
11517486 |
BOLT-HEX, M6X1X30, 19 THD, 17 OD, 9.8, 6280M (SN-ZN), MACH, P-PT (BAT TRAY BR) |
|
2002-2006 |
02 |
| 003 |
03530297 |
ГАЙКА, HFH, M6X1, 5.85THK, 14.2 O.D., 10, ZOR (BAT TRAY BR)
|
2002-2006 |
01 |
|
| 004 |
11519952 |
ГАЙКА, RIVET, HX BODIED, M6X1.0X19.35, TZ (BAT TRAY BR)
|
2002-2006 |
01 |
|
| 005 |
15763553 |
DUCT, BAT CLG AIR INL
| ST1 |
2005-2006 |
01 |
|
| 006 |
|
STUD, BAT TRAY (PART OF 8) |
|
2006-2006 |
|
| 007 |
14093869 |
ГАЙКА, PUSH ON, M6, 2.25THK, 12.95 O.D., STL, POR (PART OF 8) |
|
2002-2006 |
01 |
| 008 |
15080344 |
TRAY, BAT (INCLS 6, 7)
| ST1 |
2005-2006 |
01 |
|
| 009 |
15678970 |
БОЛТ, BAT HOLDN RET (M8X1.25X50) (SQ HD W/RET) |
ST1 |
2005-2006 |
01 |
| 010 |
15052033 |
BOLT-HEX W/FL WA M8X1.25X26, 15 THD, 21-OD, W/ADH 6175, 9.8, GM6280M (ZN-C (BAT TRAY) |
|
2002-2006 |
05 |
| 011 |
88864196 |
CABLE, BAT POS (INCLS 21) (2.341) (ALL MAKES) |
ST158 (06) (LL8) |
2002-2006 |
01 |
| 011 |
88864196 |
CABLE, BAT POS (INCLS 21) (2.341) (ALL MAKES) |
S158 (06) (LL8) |
2005-2006 |
01 |
| 011 |
88986186 |
CABLE, BAT POS (INCLS 21) (1040.0MM) (ACDelco #4SX40-2FSA)
| ST1 (LL8, M30) |
2002-2006 |
01 |
|
| 012 |
11588337 |
БОЛТ, HEX W/FL WA, M6X1X20, 9 THD, 17 OD, 6202M, GMW3200, TAP, DOG PT. (BAT NEG CBL)
|
2002-2006 |
01 |
|
| 013 |
11562004 |
БОЛТ, HEX W/FL WA, M10X1.5X30, 19 THD, 20 OD, 8.8, GMW3200, MACH, M-PT (BAT NEG CBL) |
|
2002-2006 |
01 |
| 014 |
11609961 |
ГАЙКА, BAT POS CBL (8.917) |
ST1 (06) |
2006-2006 |
01 |
| 015 |
12146809 |
COVER, GEN WIRE TERM (BLACK) (TERMINAL BOOT COVER) (2.343) |
ST1 |
2005-2006 |
01 |
| 016 |
88864188 |
CABLE, BAT NEG (ALL MAKES) |
ST155, 158 (06) (LL8) |
2003-2006 |
01 |
| 016 |
88864188 |
CABLE, BAT NEG (ALL MAKES) |
S158 (06) (LL8) |
2005-2006 |
01 |
| 016 |
88987108 |
CABLE, BAT NEG (ACDelco #4SX33-1FSA)
| ST1 (LL8, M30) |
2003-2006 |
01 |
|
| 017 |
19115561 |
БОЛТ, HEX HD, 3/8-16X13/32, 1/4 THD, 1 5/32 TOTAL LG, 51/64 O.D., STL, ZP (BAT CBL TERM) (8.900) (ACDelco #19115561)
|
2002-2006 |
02 |
|
| 018 |
12160209 |
COVER, BAT NEG CBL TERM (BLACK VINYL) (SURROUNDS CABLE END AT BATT SIDE TERM)
| ST1 |
2002-2006 |
01 |
|
| 019 |
21021808 |
ГАЙКА, STRTR SOL CBL (M8X1.25X6, BRASS)
| ST1 |
2005-2006 |
01 |
|
| 020 |
11588337 |
БОЛТ, HEX W/FL WA, M6X1X20, 9 THD, 17 OD, 6202M, GMW3200, TAP, DOG PT. (CB RDO WRG POS)
|
2002-2006 |
01 |
|
| 021 |
|
БОЛТ, BAT POS CBL J/BLK (PART OF 11) |
|
2006-2006 |
|
| 022 |
19001631 |
АККУМУЛЯТОР, (CCA 800) (SIDE TERM) (260X174X183) (US DEALERS CONTACT ACDELCO WD FOR ORDERING PRICING INFO) (ACDelco #78-7YR) (PROFESSIONAL - 7 YR) |
S158 (06) (LH6, LL8) |
2005-2006 |
01 |
| 022 |
19001631 |
АККУМУЛЯТОР, (CCA 800) (SIDE TERM) (260X174X183) (US DEALERS CONTACT ACDELCO WD FOR ORDERING PRICING INFO) (ACDelco #78-7YR) (PROFESSIONAL - 7 YR) (АККУМУЛЯТОР IS ENCASED WITHIN AN ACTIVE COOLING BOX WITH AN AIR SNORKEL TO THE OUTSIDE OF THE ENGINE |
ST158 (06) (LL8) |
2002-2006 |
01 |
| 022 |
19001631 |
АККУМУЛЯТОР, (CCA 800) (SIDE TERM) (260X174X183) (US DEALERS CONTACT ACDELCO WD FOR ORDERING PRICING INFO) (ACDelco #78-7YR) (PROFESSIONAL - 7 YR) (АККУМУЛЯТОР IS ENCASED WITHIN AN ACTIVE COOLING BOX WITH AN AIR SNORKEL TO THE OUTSIDE OF THE ENGINE |
ST158 (06) (LL8) |
2003-2006 |
01 |
| 022 |
19001632 |
АККУМУЛЯТОР, (CCA 700) (SIDE TERM) (260X174X183) (US DEALERS CONTACT ACDELCO WD FOR ORDERING PRICING INFO) (ACDelco #78-6YR) (PROFESSIONAL - 6 YR) |
S158 (06) (LH6, LL8) |
2005-2006 |
01 |
| 022 |
19001632 |
АККУМУЛЯТОР, (CCA 700) (SIDE TERM) (260X174X183) (US DEALERS CONTACT ACDELCO WD FOR ORDERING PRICING INFO) (ACDelco #78-6YR) (PROFESSIONAL - 6 YR) (АККУМУЛЯТОР IS ENCASED WITHIN AN ACTIVE COOLING BOX WITH AN AIR SNORKEL TO THE OUTSIDE OF THE ENGINE |
ST158 (06) (LL8) |
2002-2006 |
01 |
| 022 |
19001632 |
АККУМУЛЯТОР, (CCA 700) (SIDE TERM) (260X174X183) (US DEALERS CONTACT ACDELCO WD FOR ORDERING PRICING INFO) (ACDelco #78-6YR) (PROFESSIONAL - 6 YR) (АККУМУЛЯТОР IS ENCASED WITHIN AN ACTIVE COOLING BOX WITH AN AIR SNORKEL TO THE OUTSIDE OF THE ENGINE |
ST158 (06) (LL8) |
2003-2006 |
01 |
| 022 |
88900682 |
АККУМУЛЯТОР, (CCA 710) (SIDE TERM) (260X179X181) (US DEALERS CONTACT ACDELCO WD FOR ORDERING PRICING INFO) (ACDelco #ACD78-60) (60 SERIES) |
ST158 (06) (LL8) |
2002-2006 |
01 |
| 022 |
88900682 |
АККУМУЛЯТОР, (CCA 710) (SIDE TERM) (260X179X181) (US DEALERS CONTACT ACDELCO WD FOR ORDERING PRICING INFO) (ACDelco #ACD78-60) (60 SERIES) |
S158 (06) (LH6, LL8) |
2005-2006 |
01 |
| 022 |
88900682 |
АККУМУЛЯТОР, (CCA 710) (SIDE TERM) (260X179X181) (US DEALERS CONTACT ACDELCO WD FOR ORDERING PRICING INFO) (ACDelco #ACD78-60) (60 SERIES) (АККУМУЛЯТОР IS ENCASED WITHIN AN ACTIVE COOLING BOX WITH AN AIR SNORKEL TO THE OUTSIDE OF THE ENGINE COMPART |
ST158 (06) (LL8) |
2003-2006 |
01 |
| 023 |
12160210 |
COVER, BAT POS CBL TERM (RED) (SURROUNDS CABLE END AT BATT SIDE TERM)
| ST1 |
2002-2006 |
01 |
|
| 024 |
14005061 |
RETAINER, BAT HOLDN (PLASTIC)
| ST1 |
2005-2006 |
01 |
|
| 025 |
15956455 |
WASHER, BAT HOLDN RET
| ST1 |
2005-2006 |
01 |
|
| 026 |
15685230 |
ГАЙКА, BAT HOLDN RET (8 X 1.25) (W/LOCK WASHER) (8.016)
| ST1 |
2005-2006 |
01 |
|
| 027 |
15083436 |
COVER, BAT (W/O LABEL)
| ST1 |
2005-2006 |
01 |
|
| 028 |
15061761 |
LABEL, BAT WRNG (INCLUDES SYMBOLS ONLY) |
ST1 (VBW) (EXPORT) |
2002-2006 |
01 |
| 028 |
15087141 |
LABEL, BAT WRNG (W/SYMBOLS AND MESSAGE) |
ST1 (EXC VBW) |
2005-2006 |
01 |
| 028 |
15204281 |
LABEL, BAT WRNG (INCLUDES SYMBOLS ONLY) |
ST1 (VBX) (EXPORT) |
2005-2006 |
01 |
