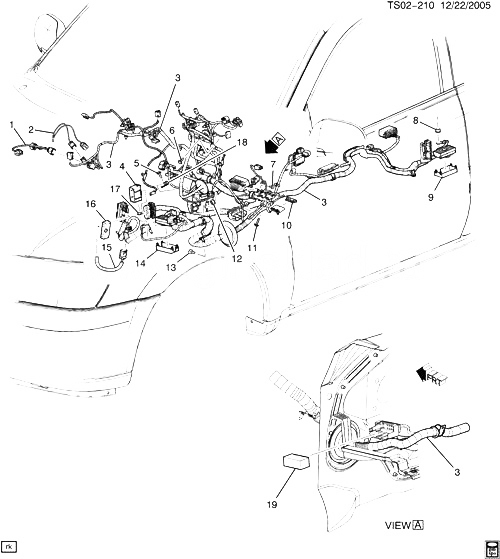

(TS02-210) - 2004-2006 ST158(06) ЖГУТ ПРОВОДОВ/ПАНЕЛЬ ПРИБОРОВ (CHEVROLET X88) CHEVROLET TRAILBLAZER EXT (2WD) 2006

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15179452 HARNESS, I/P WRG HARN EXTN ST1 2004-2006 01
002 HARNESS, BODY WRG (СМ. ГРУППУ 13.000 ЖГУТ ПРОВОДОВ/КУЗОВ FOR DETAILED ILLUSTRATED VIEW) 2004-2006
003 15265292 HARNESS, I/P WRG (INCLS 4, 9, 10, 14, 16) S158 (LL8, M30, CJ3, UQA, X88) (EXC WX7) 2006-2006 01
003 15265296 HARNESS, I/P WRG (INCLS 4, 9, 10, 14, 16) S158 (LH6, M30, CJ3, X88) (EXC UQA, WX7) 2006-2006 01
003 15265297 HARNESS, I/P WRG (INCLS 4, 9, 10, 14, 16) S158 (LH6, M30, CJ3, UQA, X88) (EXC WX7) 2006-2006 01
003 15830400 HARNESS, I/P WRG (INCLS 4, 9, 10, 14, 16) S158 (LH6, M30, CJ2, UQA, X88) (EXC WX7) 2006-2006 01
003 15830452 HARNESS, I/P WRG (INCLS 4, 9, 10, 14, 16) S158 (LL8, M30, CJ3, X88) (EXC UQA, WX7) 2006-2006 01
004 COVER, WRG HARN CONN (PART OF 3) 2004-2006
005 11516872 BOLT-HEX M6X1X20, 11.5 THD, 17 OD, 6202M, 6280M (I/P WRG HARN GND) 2004-2006 01
006 11516872 BOLT-HEX M6X1X20, 11.5 THD, 17 OD, 6202M, 6280M (I/P WRG HARN GND) 2004-2006 01
007 11589015 БОЛТ, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (I/P WRG HARN) 2004-2006 02
008 11516794 NUT-HEX W/CON WA, M8X1.25, 10 THK, 19 OD, 10, 7111M (I/P WRG HARN FUSE BLK) (8.917) 2004-2006 01
009 COVER, INFL RST SEN DIAGN MDL (PART OF 3) 2004-2006
010 COVER, I/P WRG HARN DATA LINK CONN (PART OF 3) 2004-2006
011 11589015 БОЛТ, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (BODY WRG HARN DATA LINK CONN) 2004-2006 02
012 11609411 ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (I/P WRG HARN GND) 2004-2006 01
013 11516872 BOLT-HEX M6X1X20, 11.5 THD, 17 OD, 6202M, 6280M (I/P WRG HARN GND) 2004-2006 01
014 COVER, I/P WRG HARN J/BLK (PART OF 3) 2004-2006
015 HARNESS, ENG WRG (СМ. ГРУППУ 02.000 ЖГУТ ПРОВОДОВ/ДВИГАТЕЛЬ FOR DETAILED ILLUSTRATED VIEW) 2004-2006
016 COVER, ACSRY WRG J/BLK (PART OF 3) 2004-2006
017 11516780 ГАЙКА, HEX W/CON WA, M8X1.25, 10THK, 19 O.D., 10, 7111M (PART OF 3) (8.917) 2004-2006 01
018 COVER, WRG HARN CONN (PART OF 3) 2004-2006
019 15231200 FLASHER, HAZARD LP T/SIG LP (ACDelco #15231200) ST1 (06) (BAG) (EXPORT) 2006-2006 01
019 15231200 FLASHER, HAZARD LP T/SIG LP (2.575) (ACDelco #15231200) ST1 (06) (BAG) (EXPORT) 2006-2006 01
019 15231201 FLASHER, HAZARD LP T/SIG LP (ACDelco #15231201) ST1 (06) (W49, X88, Z88, Z89) 2005-2006 01
019 15231201 FLASHER, HAZARD LP T/SIG LP (2.575) (ACDelco #15231201) ST1 (06) (W49, X88, Z88, Z89) 2005-2006 01
