| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15847291 |

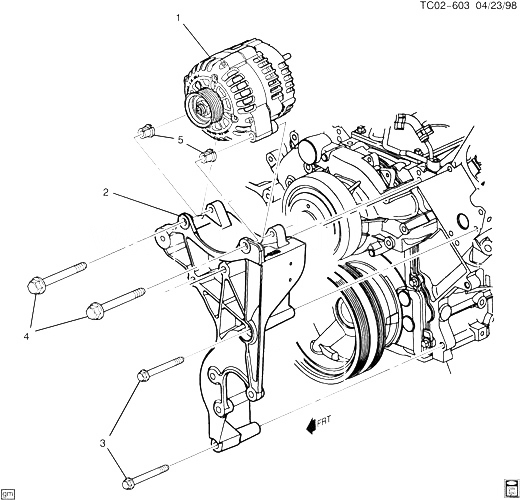

ГЕНЕРАТОР, (USE T/W 97233352 PULLEY FOR BELT LINE-UP) (ACDelco #15847291) (DELCO SERIES DR44G, TYPE 100)
| ST1 (LH6) |
2006-2006 |
01 |
|
| 002 |
12567922 |
BRACKET, GEN P/S PUMP (INCLS 5) (INCLS SPACER) |
ST1 (LH6) |
2005-2009 |
01 |
| 003 |
11519214 |
БОЛТ, HFH M10X1.5X115, 30 MM THD, 22.3 OD, 9.8, 7114M, MAT POINT (GEN P/S PUMP BRKT) |
|
2003-2009 |
02 |
| 004 |
11518637 |
БОЛТ, HFH M10X1.5X95, 26 THD, 22.3 OD, 9.8, 7114M, MACH, 7.5 MAT-PT (GEN) |
|
2003-2009 |
04 |
| 005 |
12550090 |
SPACER, GEN P/S PUMP BRKT (PART OF 2)
| ST1 (LH6) |
2005-2009 |
02 |
|
