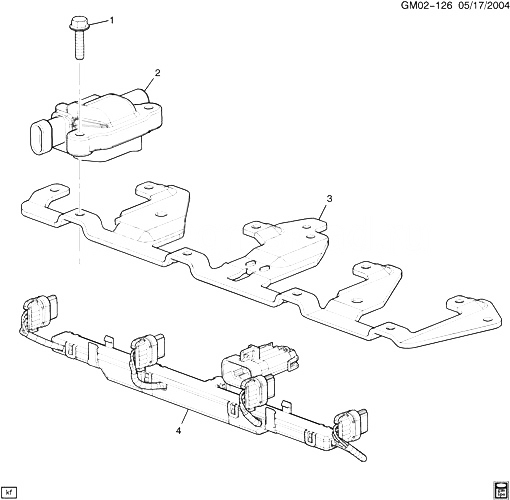

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
11516424 |
БОЛТ, HFH, M6X1X25, 14.2 O.D., HDR PT, 9.8, ZE (IGN COIL)
|
2005-2009 |
16 |
|
| 002 |
12573190 |
КАТУШКА, ЗАЖИГАНИЯ (DELPHI) (ACDelco #D514A) (W/ROUND-SHAPED COILS AND MARKED 12573190, FOR 1ST DES SEE 12570616)
| ST1 (LH6) (2ND DES) |
2005-2007 |
08 |
|
| 002 |
12611424 |
КАТУШКА, ЗАЖИГАНИЯ (MELCO-MITSUBISHI) (ACDelco #D510C) (W/SQUARE-SHAPED COILS AND MARKED 12570616, FOR 2ND DES SEE 12573190) |
ST1 (LH6) (1ST DES) |
2005-2007 |
08 |
| 003 |
12580353 |
BRACKET, IGN COIL (ACDelco #12580353) |
ST1 (LH6) |
2005-2009 |
01 |
| 004 |
12579355 |
WIRE, IGN COIL (INCLSCONNECTORS) (ACDelco #357A) |
ST1 (LH6) |
2005-2009 |
01 |
