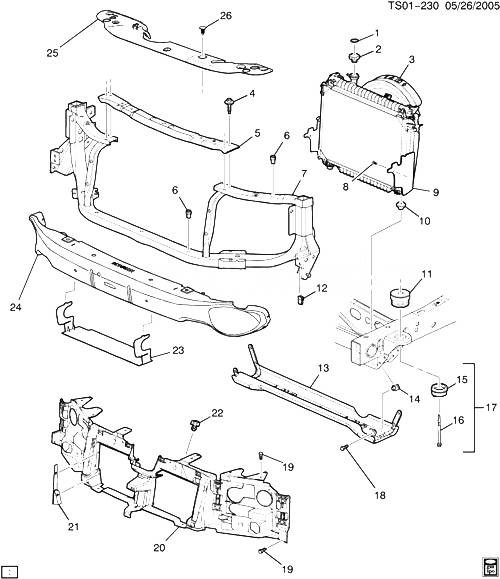

(TS01-230) - 2006-2009 ST(06) КРЕПЛЕНИЕ РАДИАТОРА И СОПРЯЖЕННЫЕ ДЕТАЛИ (CHEVROLET X88) CHEVROLET TRAILBLAZER EXT (2WD) 2006

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15063597 LABEL, RAD FIL CAP CAUTION (PART OF 2) (DOMESTIC) ST1 2006-2009 01
002 15042975 CAP, RAD FIL (INCLS 1) (ACDelco #RC85) ST1 2006-2009 01
003 RADIATOR, (СМ. ГРУППУ 01.000 РАДИАТОР В СБОРЕ FOR DETAILED ILLUSTRATED VIEW) 2006-2009
004 11610010 БОЛТ, HEX W/ CON WA, M8X1.25X40, 32 THD, 28 OD, 9.8, 7114M, MACH, P-PT (RAD SUPT) 2006-2009 04
005 15176209 SUPPORT, RAD UPR ST1 (06) 2006-2009 01
006 11519952 ГАЙКА, RIVET, HX BODIED, M6X1.0X19.35, TZ (HDLP RAD GRL MT PNL) 2006-2009 08
007 89025314 SUPPORT KIT, RAD (СМ. ГРУППУ 08.000 SHEET METAL/FRONT END FOR DETAILED ILLUSTRATED VIEW) ST1 (06) 2006-2009 01
008 10121502 RETAINER, FITS .250 HOLE, 1.01LG.700-OD NYLON BLACK (RAD AIR LWR BFL (PUSH IN)) 2006-2009 02
011 15768821 CUSHION, RAD SUPT UPR (BLUE) ST1 (06) 2006-2006 02
012 11609385 ГАЙКА, U-TYPE, M6X1, 29.5 LEN, 12.5 WID, 19.5 CEN-END, 1050, GMW3359 (HDLP RAD GRL MT PNL) 2006-2009 02
014 11516149 ГАЙКА, U, 8X1.25, MULTI THD, .08-4.0 THK PNL, PZ (RAD LWR SUPT SKID PLT) 2006-2009 06
015 CUSHION, RAD SUPT LWR (PART OF 17) 2006-2009
016 11518078 БОЛТ, HFH W/KNURL, M12X1.75X165, 32 THD, 26.6OD, 10.9, 6173M, MACH, MATCAM-PT (PART OF 17) 2006-2009 02
017 15769290 CUSHION, RAD SUPT LWR (INCLS 15, 16) (YELLOW) ST1 (06) 2006-2006 02
018 11570082 БОЛТ, HFH, M8X1.25X22, 19 THD, 18 OD, 10.9, GMW3359 (RAD LWR SUPT SKID PLT) (ACDelco #11570082) 2006-2009 06
019 11589039 БОЛТ, HEX, W/CON WA, M6X1X30, 20 THD, 24 O.D., 9.8, GMW4205 (HDLP RAD GRL MT PNL) 2006-2009 08
020 15831182 PANEL, HDLP RAD GRL MT (INCLS HDLP RET CLIPS) ST1 (06) (X88) 2006-2009 01
021 15101097 BAFFLE, RAD AIR SI UPR ST1 (06) (X88) 2006-2009 01
021 15101098 BAFFLE, RAD AIR SI UPR ST1 (06) (X88) 2006-2009 01
022 15047946 ДАТЧИК, AMB AIR TEMP GA (W/BRACKET/SCREW ATTACHMENT) ST1 (CJ2) 2006-2006 01
022 15047946 ДАТЧИК, AMB AIR TEMP GA (W/BRACKET/SCREW ATTACHMENT) ST1 (CJ3, DD5) 2006-2006 01
022 25775833 ДАТЧИК, AMB AIR TEMP GA (W/O BRACKET) (ACDelco #25775833) ST1 2006-2009 01
023 10371585 BAFFLE, RAD AIR LWR ST1 (06) (B4U, CJ2, CJ3, X88) 2006-2009 01
023 15253120 BAFFLE, RAD AIR LWR ST1 (06) (CJ2, CJ3) 2006-2009 01
024 15174444 БАМПЕР, ПЕРЕДНИЙ IMP ST1 (06) 2006-2009 01
026 10134407 RETAINER, RAD AIR UPR BFL (PUSH IN) (EBONY) (17.8 X 6.3 X 20.4MM) (NYLON) (ROUND PUSH-IN INCLS PUSH BUTTON LOCK) (1.272) ST1 2006-2009 03
