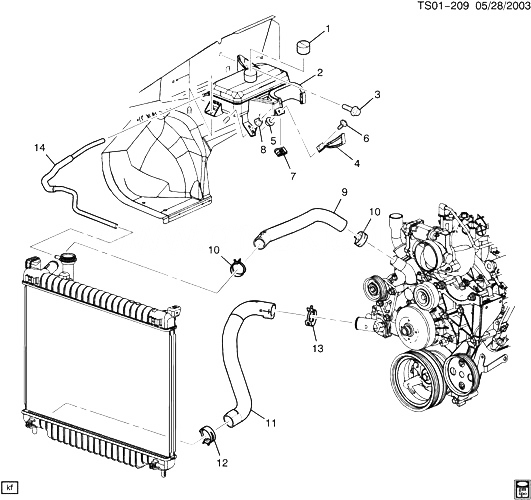

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15060681 |
CAP, COOL RCVY RSVR (PART OF 2) (DEX-COOL) (SCREW ON CAP)
| ST1 |
2005-2009 |
01 |
|
| 002 |
25780737 |
RESERVOIR, COOL RCVY (INCLS 1, 4-7)
| ST1 |
2003-2009 |
01 |
|
| 003 |
11570082 |
БОЛТ, HFH, M8X1.25X22, 19 THD, 18 OD, 10.9, GMW3359 (COOL RCVY RSVR) (ACDelco #11570082)
|
2003-2009 |
01 |
|
| 004 |
|
BRACKET, A/C ACCUM (PART OF 2) |
|
2006-2009 |
|
| 005 |
14093869 |
ГАЙКА, PUSH ON, M6, 2.25THK, 12.95 O.D., STL, POR (PART OF 2) |
|
2003-2009 |
01 |
| 006 |
11516589 |
SCREW, HEX HD W/CON SPR WA, M6X1X30, 29 THD, 17 O.D., 9.8, 7114M, ZE (PART OF 2) |
|
2003-2009 |
01 |
| 007 |
11518121 |
ГАЙКА, U, M6X1, MULTI THD, .5-4.0 THK PNL (PART OF 2) |
|
2003-2009 |
01 |
| 008 |
11609411 |
ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (COOL RCVY RSVR)
|
2003-2009 |
01 |
|
| 009 |
15763316 |
HOSE, RAD INL (INCLS 10) |
ST1 (LH6) |
2005-2006 |
01 |
| 010 |
11518559 |
CLAMP, SPRINGBAND, 42MM NOMINAL DIA, 20 WIDTH, 6298M, 6164M (PART OF 9)
|
2003-2009 |
02 |
|
| 011 |
15205921 |
HOSE, RAD OTLT (INCL CLAMPS) (INCLS 12, 13) |
ST1 (LH6) |
2005-2007 |
01 |
| 012 |
11519578 |
CLAMP, SPRING BAND 44.5 HOSE OD, 20 WIDTH, 6298M, 6164M (PART OF 11) (AT RADIATOR)
|
2003-2009 |
02 |
|
| 013 |
11562099 |
CLAMP, RAD OTLT HOSE (PART OF 11) (AT ENGINE) (DIA 49MM, 20 WIDTH) (8.948)
| ST1 (LH6) |
2005-2007 |
02 |
|
| 014 |
25793412 |
HOSE, COOL RCVY RSVR |
ST1 |
2003-2009 |
01 |
