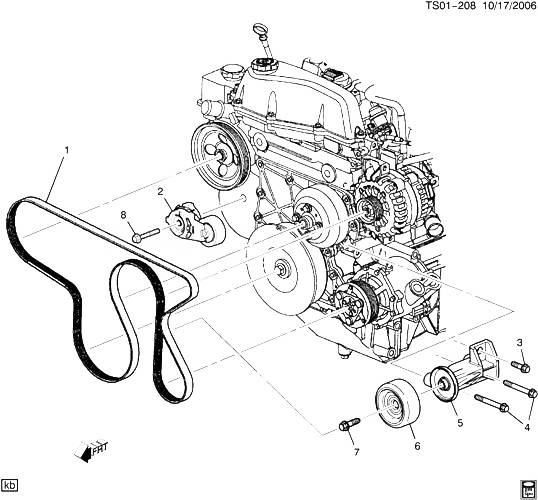

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
12575215 |
РЕМЕНЬ, W/PMP A/C CMPR GEN P/S PUMP (2290MM)
| ST158 (LL8) |
2004-2006 |
01 |
|
| 002 |
12573024 |
TENSIONER, DRV BELT
| ST1 (LL8) |
2005-2009 |
01 |
|
| 003 |
11515767 |
БОЛТ, HFH, M10X1.5X35, 32THD, 22.3 O.D., MACH, 10.9, 7114M (BELT IDLER PUL BRKT) (T/W 12345493)
|
2002-2009 |
01 |
|
| 004 |
11518636 |
БОЛТ, HFH, M10X1.5X90, 25.9 THD, 22.3 OD, 10.9, GMW3359, 7.5 MAT-PT (BELT IDLER PUL BRKT)
|
2002-2009 |
02 |
|
| 005 |
|
BRACKET, BELT IDLER PUL (*KIT1) |
|
2002-2009 |
|
| 006 |
12633781 |
PULLEY, BELT IDLER (EXC BOLTS) (*KIT1)
| ST1 (LL8) |
2006-2009 |
01 |
|
| 007 |
|
БОЛТ, BELT IDLER PUL (*KIT1) |
|
2002-2009 |
|
| 008 |
11516356 |
БОЛТ, HFH, REDUCED BODY, M10X1.5X70, 30THD, 22.3 O.D., 9.8, 7114M (DRV BELT TENSR) |
|
2002-2009 |
01 |
| K01 |
12618111 |
PULLEY, BELT IDLER (W/BRKT) (INCLS 5-7) (INCLS PULLEY BOLT)
| ST1 (LL8) |
2005-2009 |
01 |
|
