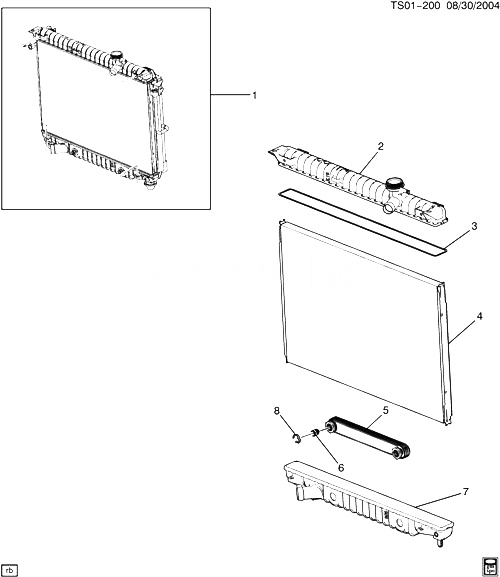

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15196385 |
RADIATOR, (CORE SIZE 27IN X 18 1/8IN X 7/8IN, CODE YEA, CAX, TRANS OIL CLR) (INCLS 2-8) (LESS DRAIN COCK) (ACDelco #21505)
| ST1 (LL8, M30, CJ2, CJ3) |
2005-2009 |
01 |
|
| 002 |
52487854 |
TANK, RAD INL (W/GSKT) (ACDelco #52487854) |
ST1 (LL8, M30, CJ2, CJ3) |
2002-2009 |
01 |
| 002 |
52494732 |
TANK, RAD INL (ACDelco #52494732) |
ST1 (LH6, M30, CJ2, CJ3) |
2005-2006 |
01 |
| 003 |
|
ПРОКЛАДКА, RAD TK |
|
2006-2009 |
|
| 004 |
|
CORE, RAD |
|
2006-2009 |
|
| 005 |
|
COOLER, TRANS FLUID (*KIT1) |
|
2006-2009 |
|
| 007 |
89022553 |
TANK, RAD OTLT (INCLS SILICONE GASKET APPLIED TO TANK) (*KIT1) (ACDelco #89022553) |
ST1 (LL8, M30, CJ2, CJ3) |
2002-2009 |
01 |
| 008 |
24205103 |
RETAINER, TRANS FLUID CLR PIPE FTG (PART OF 6) (EXPANDING SPRING WIRE) (*KIT1) (ACDelco #24205103)
| ST1 |
2005-2009 |
04 |
|
| K01 |
89022552 |
TANK KIT, RAD OTLT (INCLS 5-8) (INCLS TRANS COOLER CONNECTORS) (ACDelco #89022552)
| ST1 (LL8, M30, CJ2, CJ3) |
2005-2009 |
01 |
|
| K01 |
89022555 |
TANK KIT, RAD OTLT (INCLS 5-8) (ACDelco #89022555) |
ST1 (LH6, M30, CJ2, CJ3) |
2005-2007 |
01 |
