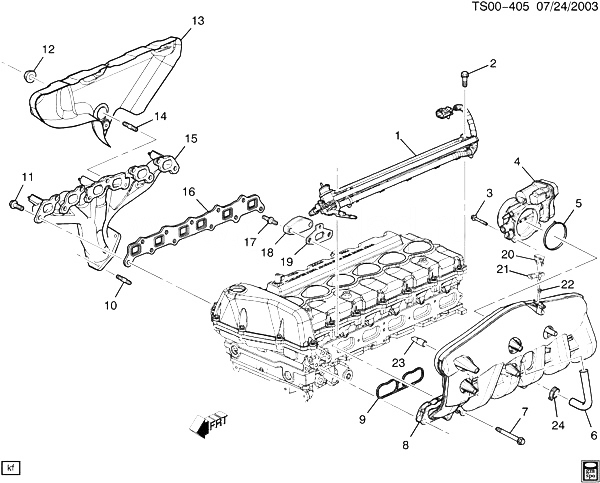

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
|
RAIL KIT, M/PORT F/INJN FUEL (СМ. ГРУППУ 03.000 РАМА ТОПЛИВНОГО ИНЖЕКТОРА FOR DETAILED ILLUSTRATED VIEW) |
|
2002-2007 |
|
| 002 |
11517590 |
БОЛТ, HFH M6X1X25, 21.5 THD, 14.2 OD, 9.8, 7114M, MACH, HDR-PT (F/INJR)
|
2002-2007 |
04 |
|
| 003 |
11517523 |
BOLT-HFH, M6X1X45, 17THD, 14.2 O.D., HDR PT, 9.8, 6280M (THROT ACTR CONT MDL) |
|
2002-2007 |
04 |
| 004 |
12568580 |
BODY, THROT (W/THROT ACTR) (ACDelco #217-2296)
| ST1 (LL8) |
2003-2007 |
01 |
|
| 005 |
12575463 |
ПРОКЛАДКА, THROT BODY (PART OF 8) (ACDelco #217-1592)
| ST1 (LL8) |
2005-2007 |
01 |
|
| 006 |
12575660 |
HOSE, PCV (DIRTY AIR) (PCV INT MANIFOLD TO CYL HEAD PORT) (INCLS 24) |
ST1 (LL8) |
2002-2007 |
01 |
| 007 |
11588352 |
БОЛТ, INT MANIF (W/SPCR) (PART OF 8) |
ST1 (LL8) |
2005-2007 |
10 |
| 008 |
89017800 |
КОЛЛЕКТОР, ВПУСКНОЙ (SERV) (INCLS MANIFOLD BOLTS, GASKETS, COVERDOES NOT INCL КОРПУС ДРОССЕЛЬНОЙ ЗАСЛОНКИ MAP SENSOR) (INCLS 5, 7, 23)
| ST1 (LL8) |
2002-2007 |
01 |
|
| 009 |
89017871 |
GASKET KIT, INT MANIF
| ST1 (LL8) |
2005-2007 |
01 |
|
| 010 |
11589264 |
STUD, STRAIGHT, M10X1.5X30, M10X1.5X16, 57 TL, SS (PART OF 15)
|
2002-2007 |
03 |
|
| 011 |
11609481 |
BOLT-HFH, M8X1.25X33, 23.9 THD, 18 OD, 9.8, GMW3179W, ADH GM6194M (EXH MANIF)
|
2002-2007 |
11 |
|
| 012 |
11609411 |
ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (EXH MANIF H/SHLD)
|
2002-2007 |
04 |
|
| 013 |
12587963 |
SHIELD, EXH MANIF HT |
ST1 (LL8) |
2005-2007 |
01 |
| 014 |
24577539 |
STUD, EXH MANIF H/SHLD (PART OF 15)
| ST1 (LL8) |
2005-2007 |
04 |
|
| 015 |
12587310 |
КОЛЛЕКТОР, ВЫПУСКНОЙ (INCLS 10, 14)
| ST1 (LL8) |
2006-2007 |
01 |
|
| 016 |
12595010 |
ПРОКЛАДКА, EXH MANIF
| ST1 (LL8) |
2006-2007 |
01 |
|
| 017 |
11518994 |
STUD, SECD AIR INJN PIPE CVR (3.671) |
ST1 (LL8) |
2004-2007 |
02 |
| 018 |
12574378 |
COVER, SECD AIR INJN PIPE |
ST1 (LL8) |
2004-2007 |
01 |
| 019 |
24577193 |
ПРОКЛАДКА, SECD AIR INJN PIPE CVR (ACDelco #219-351)
| ST1 (LL8) |
2002-2007 |
01 |
|
| 020 |
24577587 |
RETAINER, MAP SEN |
ST1 (LL8) |
2002-2007 |
01 |
| 021 |
12614970 |
ДАТЧИК, MAP (W/SEAL) (INCLS 22) (ACDelco #12614970)
| ST1 (LL8) |
2002-2007 |
01 |
|
| 022 |
16194007 |
SEAL, MAP SEN (PART OF 21) |
ST1 (LL8) |
2002-2007 |
01 |
| 023 |
12569017 |
CAP, INT MANIF VAC FTG (PART OF 8) |
ST1 (LL8) |
2005-2007 |
01 |
| 024 |
15734741 |
CLAMP, PCV HOSE (PART OF 6) (18.4MM DIA) (8.948) |
ST1 (LL8) |
2005-2007 |
01 |
