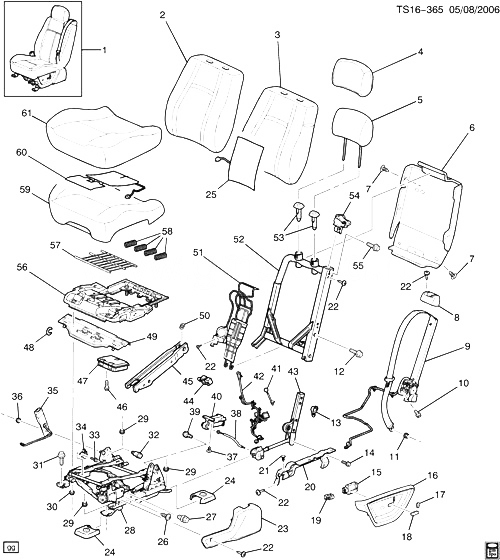

(TS16-365) - 2006-2009 ST(06) СИДЕНЬЕ ВОДИТЕЛЯ/ПОДУШКА СИДЕНЬЯ (AR9) CHEVROLET TRAILBLAZER (4WD) 2009

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15810684 SEAT, DRVR (GRAY) T1 (AK5, AR9, AX4, X88, YC5, 282) (EXPORT) 2009-2009 01
001 15810685 SEAT, DRVR (EBONY) ST1 (AK5, AR9, AX4, X88, YC5, 482) (EXPORT) 2007-2009 01
001 15810730 SEAT, DRVR (GRAY) ST1 (06) (AAB, AK5, AR9, KA1, X88, Z88, Z89, 282) (EXC JF4, R13) 2007-2009 01
001 15810751 SEAT, DRVR (EBONY) ST1 (AK5, AR9, X88, Z88, YC5, 482) (EXC AX4, B4U, KA1) 2008-2009 01
001 15810752 SEAT, DRVR (GRAY) ST1 (AK5, AR9, X88, Z88, YC5, 282) (EXC AX4, KA1) 2007-2009 01
001 15810755 SEAT, DRVR (GRAY) T1 (AAB, AK5, AR9, AX4, JF4, KA1, X88, YC6, 282) (EXPORT) 2007-2009 01
001 15810756 SEAT, DRVR (EBONY) T1 (AAB, AK5, AR9, AX4, JF4, KA1, X88, YC6, 482) (EXPORT) 2007-2009 01
001 15830603 SEAT, DRVR (EBONY) ST1 (AK5, AR9, B4U, X88, YC5, 482) (EXC AAB, AX4, KA1) 2007-2009 01
001 15943246 SEAT, DRVR (EBONY) ST1 (06) (AAB, AK5, AR9, KA1, X88, Z88, YC6, 482) (EXC JF4, R13) 2007-2009 01
001 15943265 SEAT, DRVR (EBONY) ST1 (AAB, AK5, AR9, B4U, JF4, KA1, X88, 482) (EXC AX4) 2007-2009 01
001 20821466 SEAT, DRVR (GRAY) ST1 (AK5, AR9, X88, 28H) (EXC AX4) 2009-2009 01
001 25796099 SEAT, DRVR (EBONY) ST1 (AK5, AR9, B4U, X88, 48H) (EXC AX4) 2008-2009 01
001 25796112 SEAT, DRVR (GRAY) ST1 (AK5, AR9, X88, 28H) (EXC AX4) 2008-2009 01
001 25796113 SEAT, DRVR (PEWTER) ST1 (AK5, AR9, X88, 48H) (EXC AX4, B4U) 2008-2009 01
001 25796118 SEAT, DRVR (GRAY) T1 (AK5, AR9, AX4, X88, 28H) (EXPORT) 2008-2009 01
001 25796119 SEAT, DRVR (EBONY) T1 (AK5, AR9, AX4, X88, 48H) (EXPORT) 2008-2009 01
001 25950091 SEAT, DRVR (GRAY) ST1 (AAB, AK5, AR9, KA1, R13, 282) (EXC JF4) 2008-2009 01
001 25950093 SEAT, DRVR (GRAY) ST1 (AAB, AK5, AR9, JF4, KA1, R13, 282) 2008-2009 01
001 25970216 SEAT, DRVR (EBONY) ST1 (AAB, AK5, AR9, JF4, KA1, R13, 482) 2008-2009 01
002 19150303 COVER, D/SEAT BK CUSH (EBONY) ST1 (AAB, AK5, AR9, B4U, JF4, KA1, X88, 482) (EXC AX4) 2006-2009 01
002 19150303 COVER, D/SEAT BK CUSH (EBONY) ST1 (AK5, AR9, B4U, X88, YC5, 482) (EXC AAB, AX4, KA1) 2007-2009 01
002 19150309 COVER, D/SEAT BK CUSH (GRAY) ST1 (06) (AR9, X88, Z88, 282) (EXC AX4) 2006-2009 01
002 19150309 COVER, D/SEAT BK CUSH (GRAY) T1 (AR9, AX4, X88, 282) (EXPORT) 2006-2009 01
002 19150344 COVER, D/SEAT BK CUSH (EBONY) ST1 (06) (AAB, AK5, AR9, KA1, X88, Z88, YC6, 482) (EXC JF4, R13) 2006-2009 01
002 19150344 COVER, D/SEAT BK CUSH (EBONY) T1 (AAB, AK5, AR9, AX4, JF4, KA1, X88, YC6, 482) (EXPORT) 2006-2009 01
002 19150344 COVER, D/SEAT BK CUSH (EBONY) T1 (AK5, AR9, AX4, X88, YC5, 482) (EXPORT) 2006-2009 01
002 19150344 COVER, D/SEAT BK CUSH (EBONY) ST1 (AK5, AR9, X88, Z88, YC5, 482) (EXC AX4, B4U, KA1) 2007-2009 01
002 19150994 COVER, D/SEAT BK CUSH (EBONY) T155 (06) (AR9, JF4, KA1, R13, 482) 2008-2009 01
002 19151388 COVER, D/SEAT BK CUSH (EBONY) ST1 (AK5, AR9, X88, 48H) (EXC AX4, B4U) 2009-2009 01
002 19151388 COVER, D/SEAT BK CUSH (EBONY) T1 (AK5, AR9, AX4, X88, 48H) (EXPORT) 2009-2009 01
002 19151414 COVER, D/SEAT BK CUSH ST1 (06) (AAB, AK5, AR9, R13, 282) 2008-2009 01
002 19151414 COVER, D/SEAT BK CUSH T155 (06) (AR9, JF4, KA1, R13, 282) 2008-2009 01
002 19167592 COVER, D/SEAT BK CUSH (EBONY) ST1 (AK5, AR9, B4U, X88, 48H) (EXC AX4) 2008-2009 01
002 19167596 COVER, D/SEAT BK CUSH (GRAY) ST1 (06) (AK5, AR9, X88, 28H) 2008-2009 01
003 19150300 PAD, D/SEAT BK CUSH ST1 (AK5, AR9, B4U, X88) (EXC AX4) 2006-2009 01
003 89043621 PAD, D/SEAT BK CUSH ST155 (06) (EXC B4U) 2006-2009 01
004 19167588 COVER, D/SEAT H/RST (EBONY) ST1 (48H) 2008-2009 01
004 19167590 COVER, D/SEAT H/RST (GRAY) ST1 (28H) 2008-2009 01
004 89042202 COVER, D/SEAT H/RST (GRAY) ST1 (06) (282) 2005-2009 01
004 89042423 COVER, D/SEAT H/RST (EBONY) ST1 (06) (482) 2005-2009 01
005 88979706 PAD, D/SEAT H/RST ST1 2005-2009 01
006 89045017 PANEL, D/SEAT BK CUSH INR FIN (HARDBACK) ST1 2005-2009 01
007 88948904 RETAINER, D/SEAT BK CUSH INR FIN PNL (16.716) ST1 2005-2009 06
008 89042180 BEZEL, D/SEAT BELT OPG (EBONY) ST1 (48I) 2005-2009 01
008 89042181 BEZEL, D/SEAT BELT OPG (CASHMERE) ST1 (27I) 2005-2009 01
008 89043638 BEZEL, D/SEAT BELT OPG (GRAY) ST1 (28I) 2005-2009 01
009 19148782 РЕМЕНЬ БЕЗОПАСНОСТИ, СИДЕНЬЕ ВОДИТЕЛЯ (RETR SI) (W/ PRE-TENSR) (GRAY) ST1 (AR9, X88, Z88, Z89, 28I) 2005-2009 01
009 19148783 РЕМЕНЬ БЕЗОПАСНОСТИ, СИДЕНЬЕ ВОДИТЕЛЯ (RETR SI) (W/ PRE-TENSR) (CASHMERE) ST1 (AR9, AAB, AK5, KA1, R13, 482) 2008-2009 01
010 88983477 БОЛТ, D/SEAT BELT BRKT (M12-1.75X30) (HEX WASHER HEAD MACHINE SCREW WITH DOG POINT) (16.682) ST1 2005-2009 01
011 12531799 ГАЙКА, D/SEAT BELT (BKL SI) (M12X1.75) (HEX FLANGE HEAD) (14.875) ST1 2005-2009 01
011 88948909 ГАЙКА, D/SEAT BELT (BKL SI) (PUSH NUT, RECTANGULAR) ST1 2006-2009 02
014 12470011 БОЛТ, D/SEAT SI INFL RST MDL (M6X1.0X12.4) (16.670) ST1 2005-2009 02
015 89043625 SWITCH, D/SEAT ADJR RECL (8-WAY W/O KNOBS/BUTTONS, ADJR RECL) (11.588) ST1 (AR9) 2005-2009 01
016 19121425 COVER, D/SEAT OTR ADJR UPR FIN (GRAY) ST1 (X88, Z88, Z89, 28I) 2006-2009 01
016 19121426 COVER, D/SEAT OTR ADJR UPR FIN (CASHMERE) ST1 (AR9, 27I) 2006-2009 01
016 19121427 COVER, D/SEAT OTR ADJR UPR FIN (EBONY) ST1 (AR9, 48I) 2006-2009 01
017 25752511 KNOB, D/SEAT RECL LVR (GRAY) (11.377) ST1 (06) (X88, Z88, Z89, 28I) (EXC AX4) 2006-2009 01
017 25770401 KNOB, D/SEAT RECL LVR (CASHMERE) (11.377) ST1 (AR9, 27I) 2005-2009 01
017 89043626 KNOB, D/SEAT RECL LVR (EBONY) (11.588) ST1 (AR9, 28H, 28I, 48I) 2005-2009 01
018 15256984 KNOB, D/SEAT ADJR SW (EBONY) ST1 2005-2009 01
019 19121422 SWITCH, D/SEAT LUMBAR CONT (2-WAY) ST1 (AR9) 2006-2009 01
020 89043629 BRACKET, D/SEAT ADJR SW ST1 2005-2009 01
021 88948904 RETAINER, D/SEAT BK CUSH INR FIN PNL (16.716) ST1 2005-2009 06
023 89042184 COVER, D/SEAT OTR ADJR LWR FIN (EBONY) ST1 (AR9, 48H, 482) 2005-2009 01
023 89042184 COVER, D/SEAT OTR ADJR LWR FIN (EBONY) T1 (AX4, X88, 48I) (EXPORT) 2006-2009 01
023 89042185 COVER, D/SEAT OTR ADJR LWR FIN (CASHMERE) ST1 (AR9, 272) 2005-2009 01
023 89042185 COVER, D/SEAT OTR ADJR LWR FIN (CASHMERE) ST1 (AR9, 27H, 272) 2005-2009 01
023 89042185 COVER, D/SEAT OTR ADJR LWR FIN (CASHMERE) ST1 (06) (27I) (EXC KA1) 2006-2009 01
023 89042185 COVER, D/SEAT OTR ADJR LWR FIN (CASHMERE) ST1 (47I) 2006-2009 01
023 89043633 COVER, D/SEAT OTR ADJR LWR FIN (GRAY) ST1 (06) (X88, Z88, 28I) 2005-2009 01
024 15133275 COVER, F/SEAT ADJR FIN (EBONY) (4=PASS SIDE 4=DRVR SIDE) ST1 (27I, 48I) 2005-2009 08
024 15133276 COVER, F/SEAT ADJR FIN (GRAY) (3=PASS SIDE 3=DRVR SIDE) ST1 (28I) 2005-2009 08
025 88949406 HEATER, D/SEAT BK CUSH ST1 (KA1) 2005-2009 01
028 89026671 ADJUSTER, D/SEAT (TO SERVICE ADJUSTER W/SENSOR, ORDER SENSOR BRKT 88982093 SEPERATELY) (6-WAY POWER) (W/MEMORY) (INCLS MOTORS EXC RECL ACT MOTOR) ST1 (06) (AR9) 2005-2009 01
028 89026672 ADJUSTER, D/SEAT (TO SERVICE ADJUSTER W/SENSOR, ORDER 19180158 SENSOR 89043617 BRKT SEPERATELY) (6-WAY POWER) (W/O MEMORY) (INCLS MOTORS EXC RECL ACT MOTOR) ST1 (AR9) 2008-2009 01
028 89026672 ADJUSTER, D/SEAT (TO SERVICE ADJUSTER W/SENSOR, ORDER 19180158 SENSOR 89043617 BRKT SEPERATELY) (6-WAY POWER) (W/O MEMORY) (INCLS MOTORS EXC RECL ACT MOTOR) T1 (AX4) (EXPORT) 2008-2009 01
029 11519879 ГАЙКА, HEX LOCK W/CON WA, M12X1.75X16.75, 28 OD, 10, 6173M, NYLON INSERT (D/SEAT) 2005-2009 01
030 11609746 ГАЙКА, HFH, M8X1.25, 8.9THK, 17.6 O.D., 10 STL, GMW3200, PREV TORQUE (D/SEAT ADJR) 2005-2009 04
031 11519940 БОЛТ, HEX W/CON WA, M12X1.75X34.5, 28 OD, 6202M, 4345M, TAP, TR-PT (D/SEAT) 2005-2009 01
034 19180158 SENSOR KIT, INFL RST FRT D/SEAT POSN ST1 2005-2009 01
035 19148784 РЕМЕНЬ БЕЗОПАСНОСТИ, СИДЕНЬЕ ВОДИТЕЛЯ (BKL SI) (CASHMERE) ST1 (AR9, AK5, KA1, R13, 482) 2008-2009 01
035 19148785 РЕМЕНЬ БЕЗОПАСНОСТИ, СИДЕНЬЕ ВОДИТЕЛЯ (BKL SI) (EBONY) ST1 (27I, 48I) 2005-2009 01
035 19148785 РЕМЕНЬ БЕЗОПАСНОСТИ, СИДЕНЬЕ ВОДИТЕЛЯ (BKL SI) (EBONY) ST1 (AR9, 27I, 48I) 2005-2009 01
035 19148786 РЕМЕНЬ БЕЗОПАСНОСТИ, СИДЕНЬЕ ВОДИТЕЛЯ (BKL SI) (GRAY) ST1 (AR9, 28I) 2005-2009 01
035 19148786 РЕМЕНЬ БЕЗОПАСНОСТИ, СИДЕНЬЕ ВОДИТЕЛЯ (BKL SI) (GRAY) ST1 (AR9, AK5, X88, 482) (EXC B4U, V40) (EXPORT) 2007-2009 01
035 19148786 РЕМЕНЬ БЕЗОПАСНОСТИ, СИДЕНЬЕ ВОДИТЕЛЯ (BKL SI) (GRAY) T1 (AR9, AK5, AX4, V40, X88, YC5, 482) (EXPORT) 2007-2009 01
036 12531799 ГАЙКА, D/SEAT BELT (BKL SI) (M12X1.75) (HEX FLANGE HEAD) (14.875) ST1 2005-2009 01
036 88948909 ГАЙКА, D/SEAT BELT (BKL SI) (PUSH NUT, RECTANGULAR) ST1 2006-2009 02
037 GROMMET, D/SEAT ADJR/RSR (PROCURE LOCALLY) 2006-2009
040 89039409 MOTOR, D/SEAT RECL ACTR (MOTOR ONLY) (PART OF 19152357 KIT) (ACDelco #89039409) ST1 2005-2009 01
041 89043628 CLIP, D/SEAT ADJR WRG HARN (13.090) ST1 2005-2009 01
042 19121428 HARNESS, D/SEAT ADJR WRG ST1 (AAB, AK5, AR9, B4U, JF4, KA1, X88) (EXC AX4) 2006-2009 02
042 19121428 HARNESS, D/SEAT ADJR WRG ST1 (AK5, AR9, B4U, JF4, X88) (EXC AX4) 2006-2009 02
042 19121428 HARNESS, D/SEAT ADJR WRG T1 (AAB, AK5, AR9, AX4, JF4, KA1, X88, YC6, 282, 482) 2008-2009 01
042 19121428 HARNESS, D/SEAT ADJR WRG ST1 (AAB, AK5, AR9, JF4, KA1, R13, 282, 482) 2009-2009 02
042 19121428 HARNESS, D/SEAT ADJR WRG ST1 (AAB, AK5, AR9, KA1, R13, 282, 482) (EXC JF4) 2009-2009 02
042 19121429 HARNESS, D/SEAT ADJR WRG ST1 (06) (AK5, AR9, B4U, X88) (EXC AX4) 2006-2009 01
042 19121429 HARNESS, D/SEAT ADJR WRG ST1 (06) (AK5, AR9, B4U, X88, YC5) (EXC AAB, AX4, KA1) 2007-2009 01
042 19121429 HARNESS, D/SEAT ADJR WRG T1 (AK5, AR9, AX4, X88, 282, 482) 2008-2009 01
042 19121429 HARNESS, D/SEAT ADJR WRG T1 (AK5, AR9, AX4, X88, YC5, 282, 482) 2008-2009 01
042 19121429 HARNESS, D/SEAT ADJR WRG ST1 (06) (AK5, AR9, X88, 28H) (EXC AX4, B4U) 2009-2009 01
042 19121429 HARNESS, D/SEAT ADJR WRG ST1 (AK5, AR9, X88, 48H) (EXC AX4, B4U) 2009-2009 01
042 19121429 HARNESS, D/SEAT ADJR WRG T1 (06) (AK5, AR9, AX4, X88, 28H) 2009-2009 01
042 19121429 HARNESS, D/SEAT ADJR WRG T1 (AK5, AR9, AX4, X88, 48H) 2009-2009 01
043 19150301 RECLINER, D/SEAT (POWER) ST1 (AR9) 2006-2009 01
044 89043619 RETAINER, D/SEAT H/RST ST1 2005-2009 01
045 89039524 BRACKET, D/SEAT RECL (T/W 89039523 WASHER PLASTIC SNAP-ON) (W/SLOT) (16.686) ST1 2005-2009 01
047 10379751 MODULE, D/SEAT ADJR MEMORY T1 (AR9, AX4, X88) (EXPORT) 2005-2009 01
047 10379751 MODULE, D/SEAT ADJR MEMORY ST1 (AAB, AK5, AR9, B4U, JF4, KA1, X88) (EXC AX4) 2007-2009 01
047 10379752 MODULE, D/SEAT ADJR MEMORY ST1 (06) (AAB, AK5, AR9, KA1, X88, Z88, Z89) (EXC JF4) 2008-2009 01
048 04876466 RING, HOG (F/SEAT CUSH CVR HOG) 2005-2009 AR
049 89043617 BRACKET, INFL RST SEN ST1 2005-2009 01
051 89042166 SUPPORT, D/SEAT LUMBAR (POWER LUMBAR) (INCLS LUMBAR MOTOR) ST1 (AK5, AR9, AAB) 2005-2009 01
051 89042166 SUPPORT, D/SEAT LUMBAR (POWER LUMBAR) (INCLS LUMBAR MOTOR) T1 (AK5, AR9, AX4, X88, AAB) (EXPORT) 2007-2009 01
051 89043615 SUPPORT, D/SEAT LUMBAR (2-WAY POWER) (INCLS MOTOR) ST1 (AR9) (EXC AAB) 2005-2009 01
051 89043615 SUPPORT, D/SEAT LUMBAR (2-WAY POWER) (INCLS MOTOR) T1 (AR9, AX4, X88) (EXPORT) 2005-2009 01
052 19150299 FRAME, D/SEAT BK CUSH ST1 (AK5, AR9, B4U, X88) (EXC AX4) 2006-2009 01
052 89043616 FRAME, D/SEAT BK CUSH ST1 (EXC B4U) 2005-2009 01
052 89043616 FRAME, D/SEAT BK CUSH T1 (AX4, X88) (EXPORT) 2007-2009 01
053 89042186 GUIDE, D/SEAT H/RST (EBONY) (W/BUTTON) ST1 (48I) 2005-2009 01
053 89042188 GUIDE, D/SEAT H/RST (EBONY) (W/O BUTTON) ST1 (48I) 2005-2009 01
053 89042189 GUIDE, D/SEAT H/RST (CASHMERE) (W/O BUTTON) ST1 (27I) 2005-2009 01
053 89043635 GUIDE, D/SEAT H/RST (GRAY) (W/BUTTON) ST1 (28I) 2005-2009 01
053 89043637 GUIDE, D/SEAT H/RST (GRAY) (W/O BUTTON) ST1 (28I) 2005-2009 01
054 88948974 BRACKET, D/SEAT SHLDR BELT RETR ST1 2005-2009 01
055 88983477 БОЛТ, D/SEAT BELT BRKT (M12-1.75X30) (HEX WASHER HEAD MACHINE SCREW WITH DOG POINT) (16.682) ST1 2005-2009 01
056 89043623 FRAME, D/SEAT CUSH ST1 2005-2009 01
057 89043624 WIRE, D/SEAT CUSH PAD ST1 2005-2009 01
058 88948986 ПРУЖИНА, D/SEAT CUSH PAD SUPT ST1 2005-2009 04
059 89043622 PAD, D/SEAT CUSH ST1 2005-2009 01
060 89042164 HEATER, D/SEAT CUSH ST1 (AR9) 2005-2009 01
061 19150305 COVER, D/SEAT CUSH (SS) (EBONY) ST1 (AK5, AR9, B4U, JF4, X88, 482) (EXC AX4) 2006-2009 01
061 19150305 COVER, D/SEAT CUSH (SS) (EBONY) ST1 (AK5, AR9, JF4, KA1, R13, 482) 2008-2009 01
061 19167598 COVER, D/SEAT CUSH (EBONY) ST1 (AK5, AR9, X88, 48H) (EXC AX4) 2008-2009 01
061 19179855 COVER, D/SEAT CUSH (EBONY) T155 (06) (AR9, KA1, JF4, KA1, R13, 482) 2008-2009 01
061 19209337 COVER, D/SEAT CUSH (GRAY) ST1 (AAB, AK5, AR9, KA1, R13, 282) 2008-2009 01
061 19209337 COVER, D/SEAT CUSH (GRAY) T155 (06) (AR9, KA1, JF4, KA1, R13, 282) 2008-2009 01
061 19209337 COVER, D/SEAT CUSH (SS) (GRAY) ST1 (AK5, AR9, JF4, KA1, R13, 282) 2008-2009 01
061 19209399 COVER, D/SEAT CUSH (GRAY) ST1 (06) (AK5, AR9, X88, 28H) (EXPORT) 2008-2009 01
061 19209399 COVER, D/SEAT CUSH (GRAY) ST1 (06) (AK5, AR9, X88, 28H) (EXC AX4) (EXPORT) 2009-2009 01
061 89042420 COVER, D/SEAT CUSH (GRAY) ST1 (06) (AR9, X88, Z88, 282) (EXC AX4, R13) 2008-2009 01
061 89042420 COVER, D/SEAT CUSH (GRAY) T1 (AR9, AX4, X88, 282) (EXPORT) 2008-2009 01
061 89042421 COVER, D/SEAT CUSH (EBONY) ST1 (06) (AR9, X88, Z88, 482) (EXC B4U) 2005-2009 01
061 89042421 COVER, D/SEAT CUSH (EBONY) T1 (AR9, AX4, X88, 482) (EXPORT) 2007-2009 01
