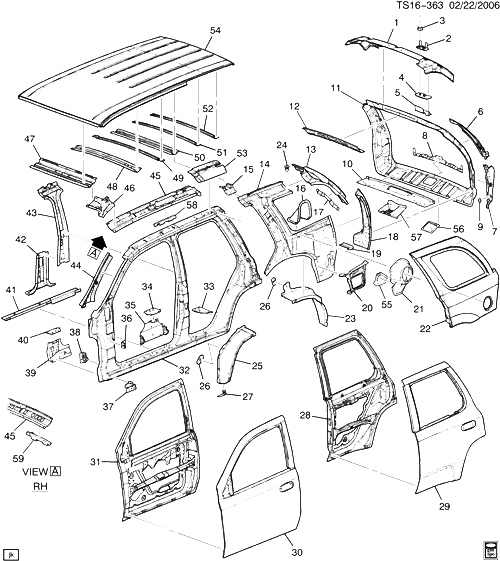

(TS16-363) - 2008-2009 ST155(06) ЛИСТОВОЙ МЕТАЛЛ/КУЗОВ - БОКОВАЯ ЧАСТЬ И КРЫША (CHEVROLET X88) CHEVROLET TRAILBLAZER (4WD) 2009

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 12478038 REINFORCEMENT, BK BODY OPG FRM UPR (INCLS 2-5) (W/BODY SIDE HINGES) ST155 (06) 2005-2009 01
002 19120466 HINGE, L/GATE (BODY SI) (PART OF 1) (INCLS 3, 4) ST1 (06) 2005-2009 02
003 11514596 ГАЙКА, HFH, M8X1.25, 17.9 OD, 738 THK, 13MM HEX, 10, ZF (PART OF 1, 2) (8.915) (ACDelco #11514596) 2005-2009 04
004 PLATE, L/GATE HGE ANC (BODY SI) (PART OF 1, 2) 2008-2009
005 REINFORCEMENT, L/GATE HGE (BODY SI) (PART OF 1) 2008-2009
006 10368613 EXTENSION, BODY SI OTR PNL RR UPR ST155 (X88) 2005-2009 01
006 10368614 EXTENSION, BODY SI OTR PNL RR UPR ST155 (X88) 2005-2009 01
007 15157233 FILLER, T/LP ST1 (06) (X88) 2005-2009 01
007 15157234 FILLER, T/LP ST1 (06) (X88) 2005-2009 01
008 15031061 BRACKET, RR BPR FASCIA ST1 (06) 2005-2009 01
009 15171185 SEALER, BODY SI OTR PNL (TO L/GATE FRM) ST155 (06) 2005-2009 02
010 15094220 REINFORCEMENT, BK BODY OPG FRM LWR ST1 (06) 2005-2009 01
011 15102191 FRAME, BK BODY OPG ST155 (06) 2005-2009 01
012 15066101 EXTENSION, BK BODY OPG FRM UPR ST155 (06) 2005-2009 01
013 15249314 REINFORCEMENT, BK BODY OPG SI FRM (UPPER) ST155 (06) 2005-2009 01
013 15249315 REINFORCEMENT, BK BODY OPG SI FRM (UPPER) ST155 (06) 2005-2009 01
014 88937012 PANEL, BODY SI INR (INCLS 15, 24) ST155 (06) 2005-2009 01
014 88937013 PANEL, BODY SI INR (INCLS 15, 24) ST155 (06) 2005-2009 01
015 15087963 REINFORCEMENT, RF PNL BOW (PART OF 14) ST155 (06) (CF5) 2007-2009 01
015 15087963 REINFORCEMENT, RF PNL BOW (PART OF 14) ST155 (06) (U42) (EXC CF5) 2007-2009 01
015 15087964 REINFORCEMENT, RF PNL BOW (PART OF 14) ST155 (06) (CF5) 2005-2009 01
015 15087964 REINFORCEMENT, RF PNL BOW (PART OF 14) ST155 (06) (U42) (EXC CF5) 2005-2009 01
016 15158438 PANEL, F/TNK FIL PIPE HSG ST1 (06) 2008-2009 01
017 15032808 BRACKET, BODY SI RR T/PNL (UPPER) ST155 2005-2009 01
017 15032809 BRACKET, BODY SI RR T/PNL (UPPER) ST155 2005-2009 01
018 15249312 REINFORCEMENT, BK BODY OPG SI FRM (LOWER) ST155 (06) 2005-2009 01
018 15249313 REINFORCEMENT, BK BODY OPG SI FRM (LOWER) ST155 (06) 2005-2009 01
019 15071010 BRACKET, BK BODY OPG FRM ST1 (06) 2005-2009 01
019 15071011 BRACKET, BK BODY OPG FRM ST1 (06) 2005-2009 01
020 15201660 FILLER, BODY SI OTR PNL ST1 (06) (X88) 2005-2009 01
020 15201661 FILLER, BODY SI OTR PNL ST1 (06) (X88) 2005-2009 01
021 15158439 EXTENSION, F/TNK FIL PIPE HSG ST1 (06) (X88) 2005-2009 01
022 15077883 PANEL, BODY SI OTR ST155 (06) (X88) 2005-2009 01
022 15785407 PANEL, BODY SI OTR ST155 (06) (X88) 2005-2009 01
023 88936993 PANEL, RR W/H OTR (INCLS 26) (INCLS PANEL, PLATE) (12.944) ST1 (06) (X88) 2005-2009 01
023 88936994 PANEL, RR W/H OTR (INCLS 26) (INCLS PANEL, PLATE) (12.944) ST1 (06) (X88) 2005-2009 01
024 ГАЙКА, COAT HOOK (PART OF 14) 2008-2009
025 88937098 EXTENSION, RR W/H PNL FRT (INCLS 26) ST155 (06) 2005-2009 01
025 88937099 EXTENSION, RR W/H PNL FRT (INCLS 26) ST155 (06) 2005-2009 01
026 15734139 PLATE, R/SEAT BELT ANC (RETR SI) (PART OF 23, 25) (OVAL) (WELDED TO W/H INNER) ST155 2005-2009 04
027 15045211 BRACKET, RKR PNL MLDG ST1 (06) 2006-2009 02
028 89025260 ДВЕРЬ, ЗАДНЯЯ SI (INCLS 29) (W/O HINGES) ST155 (X88) 2005-2009 01
028 89025261 ДВЕРЬ, ЗАДНЯЯ SI (INCLS 29) (W/O HINGES) ST155 (X88) 2005-2009 01
029 25874728 PANEL, RR S/D OTR (PART OF 28) ST155 (X88) 2005-2009 01
029 25874729 PANEL, RR S/D OTR (PART OF 28) ST155 (X88) 2005-2009 01
030 15079576 PANEL, FRT S/D OTR (PART OF 31) ST1 (06) 2005-2009 01
030 15079577 PANEL, FRT S/D OTR (PART OF 31) ST1 (06) 2005-2009 01
031 88937088 ДВЕРЬ, ПЕРЕДНЯЯ SI (INCLS 30) (W/O HINGES) ST1 (06) 2005-2009 01
031 88937089 ДВЕРЬ, ПЕРЕДНЯЯ SI (INCLS 30) (W/O HINGES) ST1 (06) 2005-2009 01
032 89045416 FRAME, S/D OPG (INCLS 36, 37) ST155 (06) 2006-2009 01
032 89045417 FRAME, S/D OPG (INCLS 36, 37) ST155 (06) 2006-2009 01
033 15119170 BAFFLE, BODY L/PLR LWR INR (C PILLAR) ST155 2005-2009 01
033 15822565 BAFFLE, BODY L/PLR LWR INR (C PILLAR) ST155 2005-2009 01
034 15072210 BAFFLE, C/PLR LWR (INR) (AT B PILLAR) ST1 (06) 2005-2009 01
034 15072211 BAFFLE, C/PLR LWR (INR) (AT B PILLAR) ST1 (06) 2005-2009 01
035 15158950 FILLER, RKR INR PNL (B PILLAR) ST1 (06) 2009-2009 02
036 BRACKET, F/FDR RR CTR (PART OF 32) 2008-2009
037 15030770 BRACKET, F/FDR RR LWR (PART OF 32) ST1 (06) 2005-2009 01
037 15030771 BRACKET, F/FDR RR LWR (PART OF 32) ST1 (06) 2005-2009 01
038 15030712 REINFORCEMENT, BODY SI FRM RKR ST1 (06) 2005-2009 01
038 15030713 REINFORCEMENT, BODY SI FRM RKR ST1 (06) 2005-2009 01
039 15049759 FILLER, RKR INR PNL FRT ST1 (06) 2009-2009 01
039 15049760 FILLER, RKR INR PNL FRT ST1 (06) 2009-2009 01
040 15072208 BAFFLE, BODY H/PLR LWR (A PILLAR) ST1 (06) 2005-2009 01
040 15072209 BAFFLE, BODY H/PLR LWR (A PILLAR) ST1 (06) 2005-2009 01
041 15160253 EXTENSION, FLR PNL ST155 (06) 2005-2009 01
041 15160254 EXTENSION, FLR PNL ST155 (06) 2005-2009 01
042 15066534 PANEL, C/PLR INR LWR (B PILLAR) ST1 (06) 2005-2009 01
042 15066535 PANEL, C/PLR INR LWR (B PILLAR) ST1 (06) 2005-2009 01
043 15299929 PANEL, C/PLR INR UPR (B PILLAR) ST1 (06) 2005-2009 01
043 15299930 PANEL, C/PLR INR UPR (B PILLAR) ST1 (06) 2005-2009 01
044 10386668 PANEL, FRT S/D OPG FRM ST1 (06) 2005-2009 01
044 10386669 PANEL, FRT S/D OPG FRM ST1 (06) 2005-2009 01
045 89025325 PANEL, S/D HDR (INCLS 58) ST155 (06) 2006-2009 01
045 89025326 PANEL, S/D HDR (INCLS 58, 59) ST155 (06) 2006-2009 01
046 10399499 REINFORCEMENT, S/D OPG FRM UPR (PILLAR) ST1 (06) 2005-2009 01
046 10399500 REINFORCEMENT, S/D OPG FRM UPR (PILLAR) ST1 (06) 2005-2009 01
047 15243576 PANEL, RF FRT HDR ST1 (06) 2005-2009 01
048 15195417 BOW, RF PNL #1 ST155 (EXC CF5) 2005-2009 01
049 15114679 BOW, RF PNL #2 ST155 (EXC CF5, U42) 2005-2009 01
050 15041270 BOW, RF PNL ST155 (06) (CF5) 2005-2009 01
050 15041270 BOW, RF PNL ST155 (06) (U42) (EXC CF5) 2005-2009 01
051 15195416 BOW, RF PNL #3 ST155 (EXC CF5, U42) 2007-2009 01
052 15195416 BOW, RF PNL #4 ST155 2009-2009 01
053 15204314 PANEL, BODY SI R/WDO HDR ST155 2005-2009 01
053 15204315 PANEL, BODY SI R/WDO HDR ST155 2005-2009 01
054 10373143 PANEL, RF ST155 (06) (B4U, CF5) 2006-2009 01
054 10373144 PANEL, RF ST155 (06) (B4U) (EXC CF5) 2006-2009 01
054 10381191 PANEL, RF ST155 (X88, Z88) (EXC B4U, CF5) 2008-2009 01
054 10381192 PANEL, RF ST155 (06) (CF5, X88, Z88) (EXC B4U) 2008-2009 01
055 15210660 BRACKET, F/TNK FIL PIPE ST1 (06) 2008-2009 01
056 21997761 REINFORCEMENT, L/GATE LAT STKR ST1 (06) 2005-2009 01
057 15156945 BRACKET, BODY RR MT ST1 (06) 2005-2009 01
057 15156946 BRACKET, BODY RR MT ST1 (06) 2005-2009 01
058 BRACKET, ASST HDL (REAR) (PART OF 45) 2008-2009
058 15235669 BRACKET, ASST HDL (PART OF 45) ST155 (06) 2005-2009 01
059 BRACKET, ASST HDL (FRONT) (PART OF 45) 2008-2009
