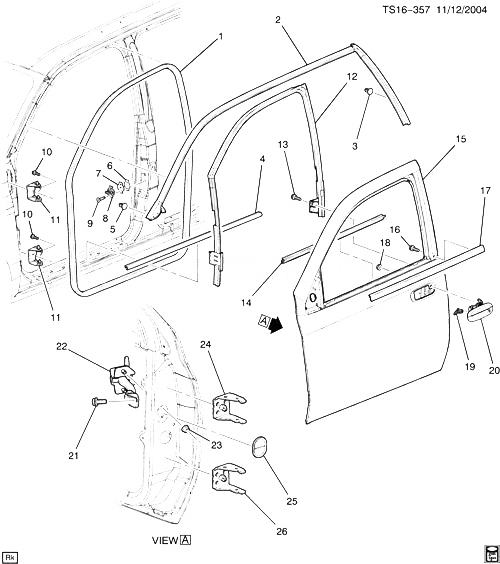

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
19120584 |
WEATHERSTRIP, FRT S/D (BLACK)
| ST1 (06) |
2008-2009 |
01 |
|
| 001 |
19151465 |
WEATHERSTRIP, FRT S/D (BLACK) |
ST1 (06) |
2008-2009 |
01 |
| 002 |
25775613 |
WEATHERSTRIP, FRT RR S/D UPR AUX (INCLS 3, 5)
| ST155 (X88) |
2005-2009 |
01 |
|
| 002 |
25775614 |
WEATHERSTRIP, FRT RR S/D UPR AUX (INCLS 3, 5) |
ST155 (X88) |
2005-2009 |
01 |
| 003 |
15762170 |
RETAINER, FRT RR S/D UPR AUX W/STR (LH) (PART OF 2) (19.0 X 11.10) (16.720) |
ST155 (X88) |
2005-2009 |
05 |
| 004 |
25775559 |
WEATHERSTRIP, RKR PNL (FRT) |
ST155 (06) |
2005-2009 |
02 |
| 005 |
14093311 |
FSTN PUSH-IN NYLON 253 HOLE BLACK (PART OF 2)
|
2005-2009 |
04 |
|
| 006 |
10388361 |
WASHER, FRT S/D LK STKR (90X75X0.25MM) (MYLAR) (17.198) |
ST1 |
2005-2009 |
02 |
| 007 |
15284189 |
SPACER, FRT S/D LK STKR (2 MM THK) (SLOTTED) |
ST1 (06) |
2005-2009 |
02 |
| 008 |
25767961 |
STRIKER, FRT S/D LK (10.569) |
ST1 |
2005-2009 |
02 |
| 009 |
09442471 |
БОЛТ, TORX HD, W/FLAT CSK, M8X1.25X35, 28 THD, 15.2 O.D., 9.8, NO (FRT S/D LK STKR)
|
2005-2009 |
04 |
|
| 010 |
11519450 |
BOLT-HEX W/CON WA, M8X1.25X23, 12 THD, 15 OD, 9.8, 7114M, MACH, 6175M, MAT-P (PART OF 11, 24, 26)
|
2005-2009 |
04 |
|
| 011 |
88937053 |
HINGE KIT, FRT S/D (BODY SI) (INCLS 10) (INCLS HINGE PINS)
| ST1 |
2005-2009 |
02 |
|
| 011 |
88937056 |
HINGE KIT, FRT S/D (BODY SI) (INCLS 10) (INCLS HINGE PINS)
| ST1 |
2005-2009 |
02 |
|
| 012 |
15857605 |
WEATHERSTRIP, FRT S/D (GLASS RUN CHANNEL) (USED T/W 15192232 SEALING STRIP)
| ST1 (06) |
2005-2009 |
01 |
|
| 012 |
15857606 |
WEATHERSTRIP, FRT S/D (GLASS RUN CHANNEL) (USED T/W 15192232 SEALING STRIP)
| ST1 (06) |
2005-2009 |
01 |
|
| 013 |
11519806 |
БОЛТ, HEX W/CON WA, M6X1X22, 14.88 THD, 17 OD, 9.8, 6280M, MACH, MAT-PT (FRT S/D WDO W/STR)
|
2005-2009 |
04 |
|
| 014 |
15192232 |
SEALING STRIP, FRT S/D WDO INR
| ST1 (06) |
2005-2009 |
02 |
|
| 015 |
88937088 |
ДВЕРЬ, ПЕРЕДНЯЯ SI (СМ. ГРУППУ 16.000 SHEET METAL/BODYSIDE FOR DETAILED ILLUSTRATED VIEW) (W/O HINGES)
| ST1 (06) |
2005-2009 |
01 |
|
| 015 |
88937089 |
ДВЕРЬ, ПЕРЕДНЯЯ SI (СМ. ГРУППУ 16.000 SHEET METAL/BODYSIDE FOR DETAILED ILLUSTRATED VIEW) (W/O HINGES)
| ST1 (06) |
2005-2009 |
01 |
|
| 016 |
11509428 |
BOLT/SCREW, HEX, W/FLAT WA, M4.2X1.4X13, 12.3 O.D., BHL PT, 6010M, NO (FRT S/D WDO OTR S/STR) (8.977) |
|
2005-2009 |
02 |
| 017 |
25864093 |
SEALING STRIP, FRT S/D WDO OTR (OUTER BELT MOLDING) |
ST1 (06) |
2009-2009 |
01 |
| 017 |
25864094 |
SEALING STRIP, FRT S/D WDO OTR (OUTER BELT MOLDING)
| ST1 (06) |
2009-2009 |
01 |
|
| 018 |
11516075 |
ГАЙКА, HFH SELF LK, M6X1, 7.7THK, 14.2 O.D., 9, PZOR (FRT S/D O/S HDL)
|
2005-2009 |
04 |
|
| 019 |
|
CYLINDER KIT, FRT S/D LK (UNCODED) (СМ. ГРУППУ 16.000 ЗАМОК БОКОВОЙ ДВЕРИ FOR DETAILED ILLUSTRATED VIEW) |
|
2005-2009 |
|
| 020 |
|
HANDLE, FRT S/D O/S (СМ. ГРУППУ 16.000 АРМАТУРА ПЕРЕДНЕЙ ДВЕРИ ЧАСТЬ 2 FOR DETAILED ILLUSTRATED VIEW) |
|
2005-2009 |
|
| 021 |
11519450 |
BOLT-HEX W/CON WA, M8X1.25X23, 12 THD, 15 OD, 9.8, 7114M, MACH, 6175M, MAT-P (FRT S/D CHK)
|
2005-2009 |
02 |
|
| 022 |
15929399 |
CHECK, FRT S/D (ORDER 25841833 BOOT) (16.323)
| ST1 (06) |
2006-2009 |
02 |
|
| 023 |
11516075 |
ГАЙКА, HFH SELF LK, M6X1, 7.7THK, 14.2 O.D., 9, PZOR (FRT S/D CHK)
|
2005-2009 |
04 |
|
| 024 |
88937051 |
HINGE KIT, FRT S/D UPR (DR SI) (INCLS 10)
| ST1 |
2005-2009 |
01 |
|
| 024 |
88937054 |
HINGE KIT, FRT S/D UPR (DR SI) (INCLS 10)
| ST1 |
2005-2009 |
01 |
|
| 025 |
25900583 |
BOOT, FRT S/D CHK LINK (16.437)
| ST1 (06) |
2008-2009 |
02 |
|
| 026 |
88937052 |
HINGE KIT, FRT S/D LWR (DR SI) (INCLS 10)
| ST1 |
2005-2009 |
01 |
|
| 026 |
88937055 |
HINGE KIT, FRT S/D LWR (DR SI) (INCLS 10)
| ST1 |
2005-2009 |
01 |
|
