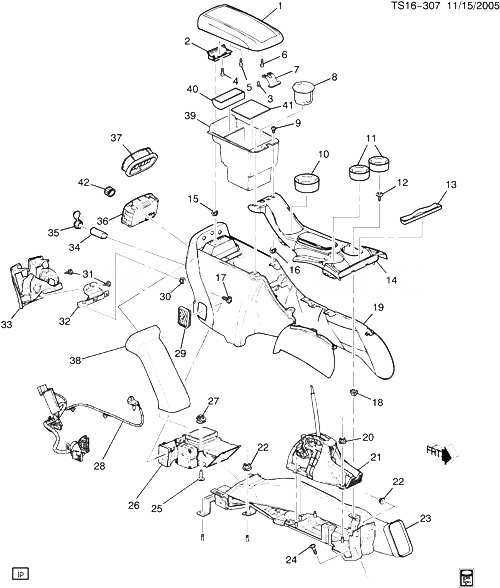

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25893669 |
ARMREST, F/FLR CNSL (INCLS 2-7) (EBONY) |
ST155 (06) (M30, M70, CJ3, X88, YC5, 48I) |
2007-2009 |
01 |
| 001 |
25893670 |
ARMREST, F/FLR CNSL (INCLS 2-7) (GRAY) |
ST155 (06) (M30, CJ2, UK6, X88, 28I) |
2007-2009 |
01 |
| 001 |
25893670 |
ARMREST, F/FLR CNSL (INCLS 2-7) (GRAY) |
ST155 (M30, CJ3, X88, YC5, 28I) |
2007-2009 |
01 |
| 001 |
25893672 |
ARMREST, F/FLR CNSL (INCLS 2-7) (EBONY) (INCLS HINGE, LATCH, BUMPERS) |
ST1 (CJ3, M30, M70, X88, 48I) (EXC YC5) |
2008-2009 |
01 |
| 001 |
25998847 |
ARMREST, F/FLR CNSL (INCLS 2-7) (GRAY) (INCLS HINGE, LATCH, BUMPERS) |
ST155 (06) (M30, CJ3, X88, 28I) (EXC YC5) |
2007-2009 |
01 |
| 002 |
88986011 |
HINGE, F/FLR CNSL A/RST (PART OF 1)
| ST1 |
2005-2009 |
01 |
|
| 003 |
22611450 |
BUMPER, F/FLR CNSL ASHTRAY DR (PART OF 1, 8) (BLACK) (10.242) |
ST1 (BAG, DT4) (EXPORT) |
2004-2009 |
01 |
| 003 |
22611450 |
BUMPER, F/FLR CNSL ASHTRAY DR (PART OF 1, 8) (BLACK) (10.242) |
ST1 (DT4) (EXC BAG) |
2004-2009 |
01 |
| 004 |
11508765 |
SCREW, TORX, W/ RD WA, M4.2X1.41X16, 11.1 O.D., STL, NIOR (PART OF 1) |
|
2002-2009 |
06 |
| 005 |
11508765 |
SCREW, TORX, W/ RD WA, M4.2X1.41X16, 11.1 O.D., STL, NIOR (PART OF 1) |
|
2002-2009 |
02 |
| 006 |
11508765 |
SCREW, TORX, W/ RD WA, M4.2X1.41X16, 11.1 O.D., STL, NIOR (PART OF 1) |
|
2002-2009 |
02 |
| 007 |
88986007 |
LATCH, F/FLR RR CNSL A/RST (PART OF 1)
| ST1 |
2002-2009 |
01 |
|
| 008 |
22611384 |
ASHTRAY, F/FLR CNSL (INCLS 3) (BLACK) (TALL STYLE) (PLSTC) (W/O C/LTR) (10.242)
| ST1 (DT4) |
2008-2009 |
01 |
|
| 009 |
11508765 |
SCREW, TORX, W/ RD WA, M4.2X1.41X16, 11.1 O.D., STL, NIOR (F/FLR COMPT STOR TRAY) |
|
2002-2009 |
06 |
| 010 |
89039691 |
LINER, F/FLR CNSL CUP HLDR (EBONY) (BEHIND SHIFTER)
| ST155 (06) (X88, Z88) |
2007-2009 |
01 |
|
| 011 |
88986013 |
LINER, F/FLR CNSL FRT CUP HLDR (EBONY) (FRONT OF SHIFTER)
| ST155 (06) (X88) |
2007-2009 |
02 |
|
| 013 |
88986016 |
MAT, F/FLR CNSL STOR TRAY |
ST155 (X88) |
2008-2009 |
01 |
| 014 |
|
PLATE, F/FLR CNSL CVR TR (PART OF 19) |
|
2002-2009 |
|
| 015 |
11610157 |
ГАЙКА, PNL, M4.2X1.41, 8.5X11.9, 2.3-2.8 PNL, FITS 11.2X9.2 HOLE, 1050, GMW33 (F/FLR CNSL A/RST HGE) (10.701)
|
2002-2009 |
03 |
|
| 016 |
11610157 |
ГАЙКА, PNL, M4.2X1.41, 8.5X11.9, 2.3-2.8 PNL, FITS 11.2X9.2 HOLE, 1050, GMW33 (F/FLR CNSL) (10.701)
|
2002-2009 |
04 |
|
| 017 |
11508765 |
SCREW, TORX, W/ RD WA, M4.2X1.41X16, 11.1 O.D., STL, NIOR (R/FLR COMPT DR) |
|
2002-2009 |
02 |
| 019 |
89045320 |
CONSOLE, F/FLR (INCLS 12, 14, 29) (EBONY) |
ST155 (06) (M30, M70, CJ3, X88, 48I) |
2008-2009 |
01 |
| 019 |
89045322 |
CONSOLE, F/FLR (INCLS 12, 14, 29) (GRAY) |
ST155 (06) (M30, CJ3, X88, 28I) |
2008-2009 |
01 |
| 020 |
11609411 |
ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (A/TRNS CONT HSG MT PLT)
|
2002-2009 |
04 |
|
| 021 |
15922397 |
CONTROL, A/TRNS (INCLS SOLENOID) |
ST1 (06) |
2006-2009 |
01 |
| 021 |
15922397 |
CONTROL, A/TRNS (INCLS SOLENOID) (4.004) |
ST1 (06) |
2006-2009 |
01 |
| 022 |
11514519 |
ГАЙКА, HEX W/23.75 OD CON WA, M8X1.25, 7.32THK, 9, PZOR (F/FLR CNSL)
|
2002-2009 |
06 |
|
| 023 |
15823249 |
CONSOLE, F/FLR LWR |
ST1 (06) |
2006-2009 |
01 |
| 024 |
11570082 |
БОЛТ, HFH, M8X1.25X22, 19 THD, 18 OD, 10.9, GMW3359 (F/FLR CNSL BRKT) (ACDelco #11570082)
|
2002-2009 |
02 |
|
| 025 |
11508765 |
SCREW, TORX, W/ RD WA, M4.2X1.41X16, 11.1 O.D., STL, NIOR (R/FLR AIR DUCT) |
|
2002-2009 |
01 |
| 026 |
15174686 |
DUCT, F/FLR CNSL RR AIR (INCLS ACTUATOR) (W/2 CUP HOLDER CONSOLE) |
ST1 |
2005-2009 |
01 |
| 027 |
11610157 |
ГАЙКА, PNL, M4.2X1.41, 8.5X11.9, 2.3-2.8 PNL, FITS 11.2X9.2 HOLE, 1050, GMW33 (FLR AIR OTLT) (10.701)
|
2002-2009 |
02 |
|
| 028 |
|
HARNESS, F/FLR CNSL WRG (SEE GRP 02.000 HARNESS/FLOOR CONSOLE FOR DETAILED ILLUSTRATED VIEW) |
|
2002-2009 |
|
| 029 |
89044996 |
GRILLE, F/FLR CNSL RR AIR OTLT (LOWER) (PART OF 19) (BLUE) |
ST155 (X88, Z88, 48I) |
2009-2009 |
01 |
| 029 |
89044997 |
GRILLE, F/FLR CNSL RR AIR OTLT (LOWER) (PART OF 19) (BLUE) |
ST155 (X88, Z88, 48I) |
2009-2009 |
01 |
| 030 |
11610157 |
ГАЙКА, PNL, M4.2X1.41, 8.5X11.9, 2.3-2.8 PNL, FITS 11.2X9.2 HOLE, 1050, GMW33 (F/FLR CNSL SI T/PNL) (10.701)
|
2002-2009 |
04 |
|
| 031 |
11509231 |
SCREW, RD HD C/R TAP, M4.2X1.41X13.0, GM6010M STL, GM813M NICKEL ORGANIC (F/FLR CNSL CUP HLDR)
|
2002-2009 |
05 |
|
| 032 |
88986020 |
HINGE, F/FLR CNSL CUP HLDR DR |
ST1 |
2005-2009 |
01 |
| 033 |
89044980 |
HOLDER, F/FLR CNSL CUP (GRAY) (REAR) |
ST155 (06) (M30, CJ2, UK6, X88, 28I) |
2008-2009 |
01 |
| 033 |
89044980 |
HOLDER, F/FLR CNSL CUP (GRAY) (REAR) |
ST155 (06) (M30, CJ3, X88, 28I, 282) |
2008-2009 |
01 |
| 033 |
89044999 |
HOLDER, F/FLR CNSL CUP (EBONY) (REAR) |
ST155 (06) (M30, M70, CJ3, X88, 48I) |
2008-2009 |
01 |
| 034 |
25774623 |
RECEPTACLE, ACSRY PWR (ACSRY PWR RECEPTACLE ASSEM LABELED 4623)
| ST1 |
2002-2009 |
01 |
|
| 035 |
15173672 |
RETAINER, ACSRY PWR RCPT (BLACK) (W/CAP) |
ST1 (X88, Z88) |
2009-2009 |
01 |
| 036 |
15095235 |
CONTROL, VENT (CNSL RR) (INCLS 42) (ACDelco #15-73378) |
ST1 (CJ3) |
2004-2009 |
01 |
| 037 |
89044978 |
GRILLE, F/FLR CNSL RR AIR OTLT (UPPER) (GRAY) |
ST1 (28I) |
2005-2009 |
01 |
| 037 |
89044998 |
GRILLE, F/FLR CNSL RR AIR OTLT (UPPER) (EBONY) |
ST1 (27I, 48I) |
2005-2009 |
01 |
| 039 |
88986014 |
COMPARTMENT, F/FLR CNSL (BLACK) |
ST155 (06) (X88, Z88) |
2007-2009 |
01 |
| 041 |
89044986 |
LINER, F/FLR CNSL CMPT
| ST155 (06) (X88, Z88) |
2007-2009 |
01 |
|
| 042 |
12227670 |
KNOB, VENT CONT (PART OF 36) (PART OF CONT IN I/P) (USED IN IP CONTROL FLOOR CONSOLE) |
ST1 (CJ3) |
2006-2009 |
01 |
