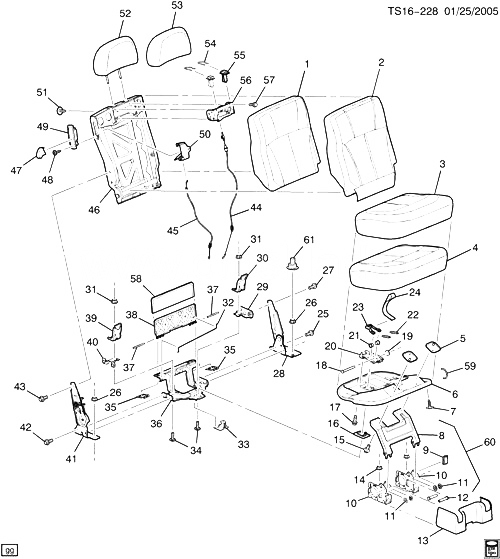

(TS16-228) - 2003-2009 ST155 ЗАДНЕЕ СИДЕНЬЕ/FOLDING-35% SIDE(AM9) CHEVROLET TRAILBLAZER (4WD) 2009

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 89043400 PAD, R/SEAT BK CUSH ST155 (06) (AM9) 2005-2009 01
002 19151753 COVER, R/SEAT BK CUSH (EBONY) (35%) (*KIT2) ST155 (AM9, B4U, X88, 482) 2007-2009 01
002 19167965 COVER, R/SEAT BK CUSH (EBONY) (*KIT2) ST155 (AM9, X88, 48H) 2009-2009 01
002 19167967 COVER, R/SEAT BK CUSH (GRAY) (*KIT2) ST155 (AM9, X88, Z88, 28H) 2009-2009 01
002 89043496 COVER, R/SEAT BK CUSH (35%) (GRAY) (*KIT2) ST155 (AM9, X88, Z88, Z89, 282) 2008-2009 01
002 89043497 COVER, R/SEAT BK CUSH (35%) (EBONY) (35%) (*KIT2) ST155 (AM9, X88, Z88, Z89, 482) (EXC B4U, Y91) 2008-2009 01
003 19151751 COVER, R/SEAT CUSH (EBONY) (*KIT1) ST155 (AM9, B4U, X88, 482) 2007-2009 01
003 19167969 COVER, R/SEAT CUSH (EBONY) (*KIT1) ST155 (AM9, X88, 48H) 2008-2009 01
003 19167971 COVER, R/SEAT CUSH (GRAY) (*KIT1) ST155 (AM9, X88, 28H) 2008-2009 01
003 89043484 COVER, R/SEAT CUSH (GRAY) (*KIT1) ST155 (AM9, X88, Z88, 282) (EXC R13) 2008-2009 01
003 89043484 COVER, R/SEAT CUSH (GRAY) (*KIT1) ST155 (AM9, X88, Z88, 282) (EXC Y91) 2008-2009 01
003 89043485 COVER, R/SEAT CUSH (EBONY) (*KIT1) ST155 (06) (AM9, X88, 482) (EXC B4U, R13, Y91) 2009-2009 01
004 89043458 PAD, R/SEAT CUSH ST155 (AM9) 2005-2009 01
005 PLATE, TAPPING (PART OF 6) 2003-2009
006 88937899 FRAME, R/SEAT CUSH (INCLS 5) ST155 (06) 2005-2009 01
007 88948904 RETAINER, R/SEAT CUSH CVR ST155 (AM9) 2002-2009 06
008 BRACKET, R/SEAT HGE (PART OF 60) 2003-2009
009 CLIP, COVER (PART OF 60) 2003-2009
010 BRACKET, MOUNTING (PART OF 60) 2003-2009
011 BUSHING, HINGE (PART OF 60) 2003-2009
012 PIN, HINGE (PART OF 60) 2003-2009
013 89043452 COVER, R/SEAT HGE FIN (LH/RH) (GRAY) (*KIT1) (16.682) ST1 (AM9, 28I) 2005-2009 02
013 89043453 COVER, R/SEAT HGE FIN (EBONY) (*KIT1) ST155 (06) (AM9, 27I, 48I) 2005-2009 02
014 03537772 ГАЙКА, M12X1.75, 10.6THK, 28 O.D., 10, 7111M (R/SEAT) (8.917) 2002-2009 02
015 12384759 БОЛТ, R/SEAT CUSH (M8X1.25X20MM HEX FLG) (ATTACHES FRM TO RISER) (16.682) 155 (AM9) 2002-2009 02
016 88953059 BEZEL, R/SEAT LAT (BLACK) (PAINT TO MATCH) (16.720) ST155 (06) (AM9) 2005-2009 02
017 12470011 БОЛТ, R/SEAT HGE SUPT (M6X1.0X12.4) (16.670) ST155 2002-2009 03
018 PIN, LATCH (PART OF 20) 2003-2009
019 RETAINER, LATCH (PART OF 20) 2003-2009
020 88937886 LATCH, R/SEAT (INCLS 18, 19, 21-23) (LH RH) (16.720) ST155 (06) (AM9) 2002-2009 02
021 BUSHING, LATCH (PART OF 20) 2003-2009
022 ПРУЖИНА, LATCH (PART OF 20) 2003-2009
023 HOOK, LATCH (PART OF 20) 2003-2009
024 89043449 STRAP, R/SEAT PULL (GRAY) (*KIT1) ST155 (06) (AM9, 28I) 2005-2009 01
024 89043450 STRAP, R/SEAT PULL (EBONY) (*KIT1) ST155 (06) (AM9, 48H, 482) 2005-2009 01
024 89043451 STRAP, R/SEAT PULL (CASHMERE) (*KIT1) ST155 (AM9, 272) 2005-2009 01
025 88953039 БОЛТ, R/SEAT BK CUSH FIL PNL (LH SI) (M10X25.0) (#2) ST155 2002-2009 10
026 03537772 ГАЙКА, M12X1.75, 10.6THK, 28 O.D., 10, 7111M (R/SEAT) (8.917) 2002-2009 07
027 88953039 БОЛТ, R/SEAT BK CUSH FIL PNL (LH SI) (M10X25.0) (#2) ST155 2002-2009 10
028 19151418 HINGE, R/SEAT BK CUSH OTR 155 (AM9) 2006-2009 01
029 BRACKET, ANCHOR (PART OF 36) 2003-2009
030 88981218 ANCHOR, R/SEAT (CHILD SEAT HOOK ONLY TO BE USED ON CHILD SEAT HOOK DESIGN) ST1 2002-2009 01
031 88954114 ГАЙКА, R/SEAT SUPT (M10 NUT) (16.714) ST155 (AM9) 2002-2009 04
032 88953043 ПРУЖИНА, R/SEAT BK FIL PNL ST1 2002-2009 01
033 BRACKET, LATCH (PART OF 36) 2003-2009
034 БОЛТ, ANCHOR (PART OF 36) 2003-2009
035 BRACKET, HINGE (PART OF 36) 2003-2009
036 88981220 BRACKET, R/SEAT BK CUSH PNL (INCLS 29, 33-35, 40) (16.716) ST1 (06) (AM9) 2005-2009 01
037 88953042 PIN, R/SEAT HGE FIL PNL ST155 (AM9) 2002-2009 02
038 88948943 PANEL, R/SEAT BK CUSH TR (35%) (INNER FLIPPER PANEL) (METAL) ST155 (AM9) 2005-2009 01
039 88981219 ANCHOR, R/SEAT (CHILD SEAT HOOK ONLY TO BE USED ON CHILD SEAT HOOK DESIGN) ST155 (AM9) 2005-2009 04
040 BRACKET, ANCHOR (PART OF 36) 2003-2009
041 19151417 HINGE, R/SEAT BK CUSH INR ST155 (AM9) 2006-2009 01
042 88953039 БОЛТ, R/SEAT BK CUSH FIL PNL (RH SI) (M10X25.0) (#2) ST155 2002-2009 08
043 88953039 БОЛТ, R/SEAT BK CUSH FIL PNL (RH SI) (M10X25.0) (#2) ST155 2002-2009 08
044 88948871 CABLE, R/SEAT H/RST ADJR ACTR (16.674) ST155 (AM9) 2002-2009 01
045 CABLE, R/SEAT BK CUSH LAT (PART OF 50) 2003-2009
046 88948942 FRAME, R/SEAT BK CUSH (35%) ST155 (AM9) 2005-2009 01
047 12531865 KNOB, R/SEAT BK CUSH LAT REL (GRAPHITE) (11.390) ST1 (AM9) 2002-2009 01
048 88949546 БОЛТ, R/SEAT BK CUSH LAT BZL (M4.2X16) ST1 (AM9) 2002-2009 01
049 89043418 BEZEL, R/SEAT BK CUSH LAT REL HDL (GRAY) (*KIT2) ST155 (AM9, 28I) 2005-2009 02
049 89043419 BEZEL, R/SEAT BK CUSH LAT REL HDL (EBONY) (*KIT2) ST1 (AM9, 482) 2005-2009 02
049 89043420 BEZEL, R/SEAT BK CUSH LAT REL HDL (CASHMERE) (*KIT2) ST1 (AM9, 272) 2005-2009 02
050 88948934 CABLE, R/SEAT BK CUSH LAT (INCLS 45) ( (INCL LEVER) ST155 (06) (AM9) 2002-2009 01
051 88948904 RETAINER, R/SEAT BK CUSH CPT (PUSH IN) (16.716) ST1 (AM9) 2005-2009 AR
052 89046060 PAD, R/SEAT H/RST (PAD RODS) ST155 (AM9) 2005-2009 01
053 19167961 COVER, R/SEAT H/RST (EBONY) (*KIT2) ST155 (AM9, 48H) 2008-2009 02
053 19167963 COVER, R/SEAT H/RST (GRAY) (*KIT2) ST155 (AM9, 28H) 2008-2009 02
053 89043492 COVER, R/SEAT H/RST (GRAY) (*KIT2) ST155 (AM9, 282) 2005-2009 02
053 89043493 COVER, R/SEAT H/RST (EBONY) (*KIT2) T155 (AM9, 482) 2005-2009 02
054 CLIP, GUIDE) (PART OF 56) 2003-2009
055 GUIDE, H/RST) (PART OF 56) 2003-2009
056 88948872 SUPPORT, R/SEAT H/RST (PIVOT SUPPORT) (INCLS 54, 55) ST155 (AM9) 2002-2009 02
057 12470011 БОЛТ, R/SEAT BK CUSH (ATTACH H/RST MECHANISM TO BACK РАМА) (M6X1.0X12.4) (16.670) ST155 (AM9) 2002-2009 03
058 89046081 PANEL, R/SEAT BK CUSH FIL (EBONY) (OUTER COVER) (*KIT2) ST1 (AM9, 48I) 2005-2009 01
058 89046082 PANEL, R/SEAT BK CUSH FIL (GRAY) (OUTER COVER) (*KIT2) ST155 (AM9, 282) 2005-2009 01
058 89046083 PANEL, R/SEAT BK CUSH FIL (CASHMERE) (OUTER COVER) (*KIT2) ST155 (06) (AM9, 272) 2005-2009 01
059 04876466 RING, HOG (R/SEAT BK CUSH CVR HOG) ST1 2002-2009 06
060 89046349 HINGE, R/SEAT (INCLS 8-12) ST155 (06) (AM9) 2005-2009 02
061 15194000 COVER, R/SEAT HGE STUD FIN (EBONY) (M12) ST155 (AM9) 2003-2009 01
K01 15233349 CUSHION, R/SEAT (INCLS 3, 13, 24) (GRAY) ST155 (AM9, X88, Z88, 282) (EXC R13, Y91) 2008-2009 01
K01 15233350 CUSHION, R/SEAT (INCLS 3, 13, 24) (EBONY) ST155 (AM9, X88, Z88, Z89, 482) (EXC B4U, R13, Y91) 2008-2009 01
K01 15876418 CUSHION, R/SEAT (INCLS 3, 13, 24) (EBONY) ST155 (AM9, B4U, X88, 482) 2007-2009 01
K01 25796600 CUSHION, R/SEAT (INCLS 3, 13, 24) (GRAY) ST155 (AM9, X88, 28H) 2008-2009 01
K01 25796601 CUSHION, R/SEAT (INCLS 3, 13, 24) (PEWTER) ST155 (AM9, X88, 48H) 2008-2009 01
K02 15843032 CUSHION, R/SEAT BK (35%) (INCLS 2, 49, 53, 58) (GRAY) ST155 (AM9, X88, Z88, 282) (EXC Y91) 2005-2009 01
K02 15843033 CUSHION, R/SEAT BK (35%) (INCLS 2, 49, 53, 58) (EBONY) ST155 (AM9, X88, Z88, 482) (EXC B4U, Y91) 2005-2009 01
K02 15876420 CUSHION, R/SEAT BK (35%) (INCLS 2, 49, 53, 58) (EBONY) ST155 (AM9, B4U, X88, 482) 2007-2009 01
K02 25796625 CUSHION, R/SEAT BK (INCLS 2, 49, 53, 58) (GRAY) ST155 (AM9, X88, 28H) (EXC AX4) 2008-2009 01
K02 25796626 CUSHION, R/SEAT BK (INCLS 2, 49, 53, 58) (PEWTER) ST155 (AM9, X88, 48H) 2008-2009 01
