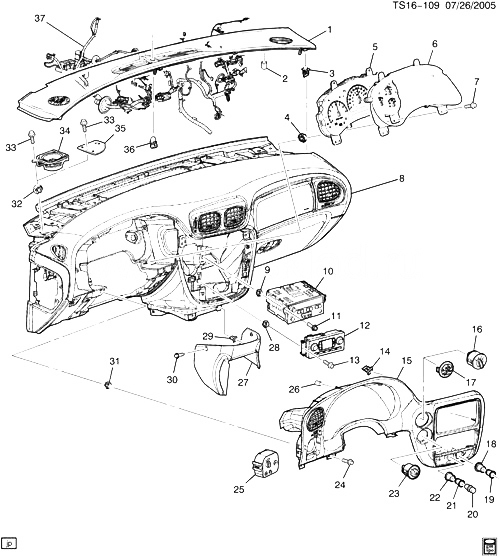

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15891496 |
ПАНЕЛЬ, ПРИБОРОВ UPR TR (INCLS 2, 3) (EBONY) |
ST1 (X88, Z88, 48I) |
2009-2009 |
01 |
| 001 |
15891497 |
ПАНЕЛЬ, ПРИБОРОВ UPR TR (INCLS 2, 3) (GRAY) |
ST1 (28I) |
2006-2009 |
01 |
| 002 |
15029793 |
INSULATOR, I/P UPR T/PNL (PART OF 1) (GRAY) (STANDOFF) (9.743) |
ST1 |
2006-2009 |
02 |
| 003 |
15058366 |
CLIP, I/P UPR T/PNL (PART OF 1)
| ST1 |
2006-2009 |
07 |
|
| 004 |
11610157 |
ГАЙКА, PNL, M4.2X1.41, 8.5X11.9, 2.3-2.8 PNL, FITS 11.2X9.2 HOLE, 1050, GMW33 (PART OF 8) (10.701)
|
2006-2009 |
04 |
|
| 005 |
25937726 |
CLUSTER, INST (INCLS 6) (ACDelco #25937726) |
ST1 (06) (B4U, X88) (EXC UC2, U19) |
2008-2009 |
01 |
| 005 |
25937727 |
CLUSTER, INST (INCLS 6) (ACDelco #25937727) |
ST1 (06) (B4U, UC2, U19, X88) |
2009-2009 |
01 |
| 005 |
25937733 |
CLUSTER, INST (INCLS 6) (ACDelco #25937733) |
ST1 (06) (M30, X88) (EXC B4U, UC2, U19, U68) |
2006-2009 |
01 |
| 005 |
25937734 |
CLUSTER, INST (INCLS 6) (ACDelco #25937734)
| ST1 (06) (M30, UC2, U19, X88) (EXC B4U, U68) |
2009-2009 |
01 |
|
| 005 |
25937735 |
CLUSTER, INST (INCLS 6) (ACDelco #259377353) |
ST1 (06) (M30, U68, X88) (EXC B4U, UC2, U19) |
2009-2009 |
01 |
| 005 |
25937736 |
CLUSTER, INST (INCLS 6) (ACDelco #25937736) |
ST1 (06) (M30, UC2, U19, U68, X88) (EXC B4U) |
2009-2009 |
01 |
| 006 |
|
LENS, INST CSTR (PART OF 5) |
|
2006-2009 |
|
| 007 |
11589012 |
БОЛТ, HWH, M4.2X1.41X25, 16.4 THD, 12.5 OD, GM6010M STL, GMW4205 (INST CSTR) (9.665)
|
2006-2009 |
04 |
|
| 008 |
|
PANEL, INST (СМ. ГРУППУ 16.000 ПАНЕЛЬ ПРИБОРОВ/ЧАСТЬ 1 FOR DETAILED ILLUSTRATED VIEW) (INCLS 4, 9, 28, 31, 32) (EBONY) (W/O PSIR) |
|
2006-2009 |
|
| 009 |
11610157 |
ГАЙКА, PNL, M4.2X1.41, 8.5X11.9, 2.3-2.8 PNL, FITS 11.2X9.2 HOLE, 1050, GMW33 (PART OF 8) (10.701)
|
2006-2009 |
03 |
|
| 010 |
|
RADIO, AM/FM STEREO CLK CD PLYR (СМ. ГРУППУ 09.000 АУДИОСИСТЕМА/ПЕРЕДНЯЯ FOR DETAILED ILLUSTRATED VIEW) |
|
2006-2009 |
|
| 011 |
11589012 |
БОЛТ, HWH, M4.2X1.41X25, 16.4 THD, 12.5 OD, GM6010M STL, GMW4205 (RDO) (9.665)
|
2006-2009 |
03 |
|
| 012 |
|
CONTROL, HTR A/C (СМ. ГРУППУ 09.000 AC/HEATER CONTROL ASM FOR DETAILED ILLUSTRATED VIEW) |
|
2006-2009 |
|
| 013 |
11589012 |
БОЛТ, HWH, M4.2X1.41X25, 16.4 THD, 12.5 OD, GM6010M STL, GMW4205 (HTR A/C CONT) (9.665)
|
2006-2009 |
02 |
|
| 014 |
15058366 |
CLIP, I/P ACSRY TR PLT (PART OF 15) (16.090)
| ST1 |
2006-2009 |
AR |
|
| 015 |
10355823 |
PLATE, I/P ACSRY TR (INCLS 14, 18-22, 26) (GRAY) |
ST1 (X88, 28I) |
2006-2009 |
01 |
| 015 |
10355824 |
PLATE, I/P ACSRY TR (INCLS 14, 18-22, 26) (EBONY)
| ST1 (06) (X88, 48I) |
2008-2009 |
01 |
|
| 016 |
25965895 |
SWITCH, TRFER CASE SEL
| T1 (NP8) |
2006-2009 |
01 |
|
| 017 |
15289764 |
COVER, ELEK TRACT CONT SW OPG (EBONY) |
ST155 (06) (B4U, X88, 48I) |
2006-2009 |
01 |
| 018 |
25774623 |
RECEPTACLE, ACSRY PWR (PART OF 15) (ACSRY PWR RECEPTACLE ASSEM LABELED 4623)
| ST1 |
2006-2009 |
01 |
|
| 019 |
15187371 |
RETAINER, C/LTR HSG (PART OF 15) (EBONY) (INCLS COVER)
| ST1 |
2006-2009 |
02 |
|
| 020 |
11516140 |
LIGHTER, CIG (PART OF 15) (BLACK) (W/LARGE, PLASTIC KNOB END 21.0MM)
| ST1 |
2006-2009 |
01 |
|
| 021 |
25749635 |
RETAINER, C/LTR RCPT (PART OF 15) (EBONY) (W/O CAP)
| ST1 |
2006-2009 |
AR |
|
| 022 |
25776667 |
RECEPTACLE, C/LTR (PART OF 15) (2 TERMINALS)
| ST1 |
2006-2009 |
01 |
|
| 023 |
25790668 |
SWITCH, R/WDO WPR WA
| ST1 (X88, Z88) |
2009-2009 |
01 |
|
| 024 |
11516630 |
SCREW, RD, M4.2X1.41X20, TYPE AB PT, GM6010M, GMW4205 (I/P ACSRY TR PLT) |
|
2006-2009 |
06 |
| 025 |
10372949 |
SWITCH, HDLP (ACDelco #10372949) |
ST1 (06) (T96, X88, Z88, Z49) (EXC CE4, TR6, T79) |
2008-2009 |
01 |
| 025 |
10372951 |
SWITCH, HDLP (ACDelco #D1537H) |
T1 (06) (CE4, TR6, T79, T96, X88) |
2007-2009 |
01 |
| 025 |
10372952 |
SWITCH, HDLP (ACDelco #10372952) |
ST1 (06) (T96, X88, Z88) (EXC CE4, TR6, T78, T79, Z49) |
2009-2009 |
01 |
| 025 |
10372953 |
SWITCH, HDLP (ACDelco #10372953) |
ST1 (06) (X88) (EXC CE4, TR6, T78, T79, T96, Z49) |
2007-2009 |
01 |
| 025 |
25932631 |
SWITCH, HDLP (ACDelco #D1534H) |
ST1 (06) (X88, Z49) (EXC CE4, TR6, T79, T96) |
2007-2009 |
01 |
| 026 |
15029793 |
INSULATOR, I/P CSTR TR PLT (PART OF 15) (GRAY) (STANDOFF) |
ST1 |
2006-2009 |
AR |
| 027 |
25905020 |
ПАНЕЛЬ, ПРИБОРОВ LWR EXTN TR (INCLS 29) (EBONY) |
ST1 (X88, 48I) |
2009-2009 |
01 |
| 027 |
25905021 |
ПАНЕЛЬ, ПРИБОРОВ LWR EXTN TR (INCLS 29) (GRAY) |
ST1 (X88, 28I) |
2006-2009 |
01 |
| 028 |
11610157 |
ГАЙКА, PNL, M4.2X1.41, 8.5X11.9, 2.3-2.8 PNL, FITS 11.2X9.2 HOLE, 1050, GMW33 (PART OF 8) (10.701)
|
2006-2009 |
02 |
|
| 029 |
|
RETAINER, I/P LWR EXTN T/PNL (PART OF 27) |
|
2009-2009 |
|
| 030 |
11516632 |
SCREW, RND WA HD C/R, M4.2X1.41X30, NZ (I/P LWR EXTN T/PNL) (8.903) |
|
2006-2009 |
02 |
| 031 |
11610157 |
ГАЙКА, PNL, M4.2X1.41, 8.5X11.9, 2.3-2.8 PNL, FITS 11.2X9.2 HOLE, 1050, GMW33 (PART OF 8) (10.701)
|
2006-2009 |
06 |
|
| 032 |
11610157 |
ГАЙКА, PNL, M4.2X1.41, 8.5X11.9, 2.3-2.8 PNL, FITS 11.2X9.2 HOLE, 1050, GMW33 (PART OF 8) (10.701)
|
2006-2009 |
06 |
|
| 033 |
11589012 |
БОЛТ, HWH, M4.2X1.41X25, 16.4 THD, 12.5 OD, GM6010M STL, GMW4205 (RDO FRT SPKR) (9.665)
|
2006-2009 |
06 |
|
| 034 |
15013121 |
SPEAKER, RDO FRT (ACDelco #15013121)
| ST1 (UQA) |
2006-2009 |
01 |
|
| 034 |
15042464 |
SPEAKER, RDO FRT (ACDelco #15042464) |
ST1 (UQA) |
2006-2009 |
01 |
| 035 |
15766420 |
COVER, RDO FRT SPKR OPG (16.081) |
ST1 (EXC UQA) |
2006-2009 |
02 |
| 035 |
15766420 |
COVER, RDO FRT SPKR OPG |
ST1 (EXC UQA) |
2006-2009 |
02 |
| 036 |
15837063 |
ДАТЧИК, HDLP AUTO CONT AMB LGT (FITS A 16.5MM HOLE)
| ST1 (06) (CJ3) |
2006-2009 |
01 |
|
| 036 |
25713063 |
ДАТЧИК, HDLP AUTO CONT AMB LGT (DUAL SOLAR TWILIGHT)
| ST1 (CJ2) |
2006-2009 |
01 |
|
| 037 |
|
HARNESS, I/P WRG (СМ. ГРУППУ 02.000 INTRUMENT WIRING HARNESS FOR DETAILED ILLUSTRATED VIEW) (W/AUX PUMP CONTENT) |
|
2006-2009 |
|
