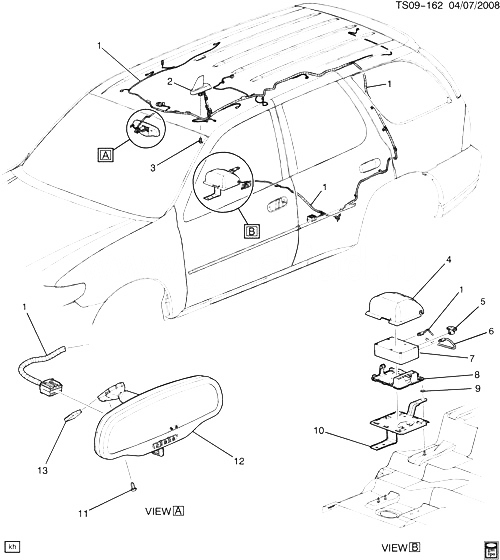

(TS09-162) - 2009 ST1 СИСТЕМА СВЯЗИ ONSTAR(UE1) CHEVROLET TRAILBLAZER (4WD) 2009

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 HARNESS, DM LP WRG (СМ. ГРУППУ 16.000 ВНУТРЕННЯЯ ОТДЕЛКА - КРЫША И СОЛНЦЕЗАЩИТНЫЙ КОЗЫРЕК FOR DETAILED ILLUSTRATED VIEW) 2009-2009
002 15837587 АНТЕННА, M/TEL VEH LOC (INCLS 3) (ACDelco #15837587) ST1 (UE1) (EXC U2K) 2009-2009 01
003 БОЛТ, MOBILE TEL BASE (PART OF 2) 2009-2009
004 15120584 COVER, MOBILE TEL XCVR TR (GRAY) ST1 (06) (UE1, X88, Z88, 28I) 2009-2009 01
004 15120585 COVER, MOBILE TEL XCVR TR (EBONY) ST155 (UE1, 27I, 48I) 2009-2009 01
005 15938939 АНТЕННА, WIRELESS COMN INTERFACE (BLUETOOTH) ST1 (UE1, UPF, X88, Y99, Z88) 2009-2009 01
006 HARNESS, I/P WRG (СМ. ГРУППУ 02.000 HARNESS I/P FOR DETAILED ILLUSTRATED VIEW) 2009-2009
007 20830941 MODULE, COMN INTERFACE (W/MOBILE TEL XCVR) ST1 (UE1, UPF) 2009-2009 01
007 20830942 MODULE, COMN INTERFACE (W/MOBILE TEL XCVR) ST155 (UE1) (EXC UPF) 2009-2009 01
008 25886921 BRACKET, NAVIGATION CTL PROCESSOR ST155 (UE1) 2009-2009 01
009 11519879 ГАЙКА, HEX LOCK W/CON WA, M12X1.75X16.75, 28 OD, 10, 6173M, NYLON INSERT (R/SEAT BK CUSH) 2009-2009 07
010 25849755 BRACKET, NAVN RCVR ST1 (UE1) 2009-2009 01
011 БОЛТ, I/S RR VIEW MIR (PART OF 12) 2009-2009
012 15144156 MIRROR, I/S RR VIEW (INCLS 11) (INSIDE) ST1 (06) (UE1, VCG) (EXC DD7, DF5) 2009-2009 01
012 15144157 MIRROR, I/S RR VIEW (INCLS 11) (INSIDE) ST1 (06) (UE1) (EXC DD7, DF5, VCG) 2009-2009 01
012 15237545 MIRROR, I/S RR VIEW (INCLS 11) (LT SEN, COMPASS, TEMP, FRT PRESENCE DETECTOR, GPS) ST1 (06) (DF5, UE1, VCG) 2009-2009 01
012 15237546 MIRROR, I/S RR VIEW (INCLS 11) (LT SEN, COMPASS, TEMP, FRT PASS/CHILD PRESENCE DETECTOR, GPS) ST1 (06) (DF5, UE1) (EXC VCG) 2009-2009 01
012 15812021 MIRROR, I/S RR VIEW (INCLS 11) ST1 (06) (DD7, UE1) (EXC VCG) 2009-2009 01
012 15812022 MIRROR, I/S RR VIEW (INCLS 11) ST1 (06) (DD7, UE1, VCG) 2009-2009 01
013 20626174 BRACKET, I/S RR VIEW MIR (10.187) ST1 2009-2009 01
