| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
|

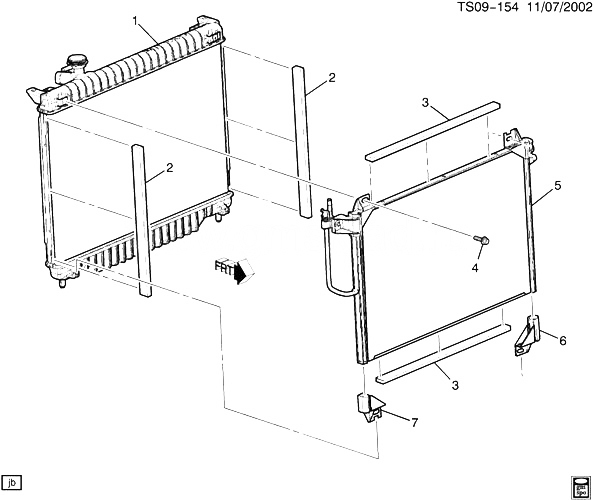

RADIATOR, (СМ. ГРУППУ 01.000 РАДИАТОР В СБОРЕ FOR DETAILED ILLUSTRATED VIEW) |
|
2002-2009 |
|
| 002 |
15162215 |
SEAL, A/C CNDSR (UPPER/SIDE SEALS) |
ST1 (LL8, M30, CJ2, CJ3) |
2008-2009 |
02 |
| 003 |
15162216 |
SEAL, A/C CNDSR (TOP/BOTTOM SEAL) (PART OF 5) (FOAM) |
ST1 (LL8, M30, CJ2, CJ3) |
2008-2009 |
02 |
| 004 |
11517347 |
БОЛТ, HEX HD, W/FL WA, M6X1X20, 9 THD, 24 O.D., P-PT, 9.8, SN-ZN (A/C CNDSR)
|
2002-2009 |
AR |
|
| 005 |
89019255 |
CONDENSER, A/C (INCLS 3, 6, 7) (ACDelco #15-63656)
| ST1 (LL8, M30, CJ2, CJ3) |
2005-2009 |
01 |
|
| 006 |
15162218 |
BRACKET, A/C CNDSR (PART OF 5) |
ST1 (CJ2, CJ3) |
2005-2009 |
01 |
| 007 |
15162217 |
BRACKET, A/C CNDSR (PART OF 5)
| ST1 (CJ2, CJ3) |
2005-2009 |
01 |
|
