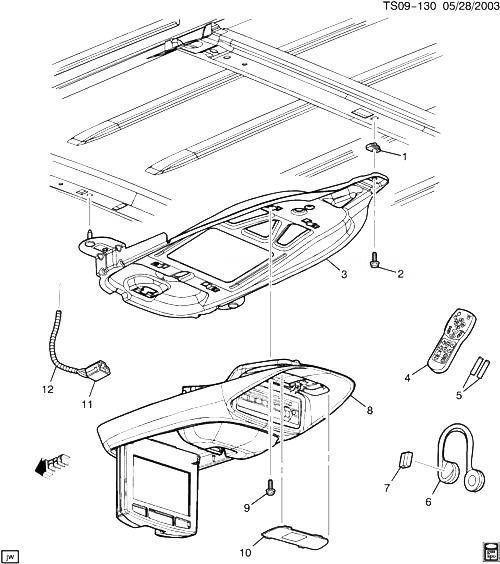

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
11509005 |
ГАЙКА, M6X1 (VIDEO TAPE PLYR BRKT) |
|
2004-2009 |
03 |
| 002 |
11519806 |
БОЛТ, HEX W/CON WA, M6X1X22, 14.88 THD, 17 OD, 9.8, 6280M, MACH, MAT-PT (VIDEO TAPE PLYR BRKT)
|
2004-2009 |
03 |
|
| 003 |
15172392 |
BRACKET, VIDEO PLYR (ACDelco #15172392)
| ST1 (U42) (EXC CF5) |
2006-2009 |
01 |
|
| 004 |
01999355 |
CONTROL, VIDEO PLYR REM (ACDelco #1999355) |
ST1 (U42) |
2004-2009 |
01 |
| 005 |
|
АККУМУЛЯТОР, VIDEO T/PLYR REM CONT |
|
2006-2009 |
|
| 006 |
01999421 |
HEADPHONE, (WIRELESS) (FOR FOAM EARPADS CALL UNWIRED TECH. 1-888-293-3332) (ACDelco #1999421) |
ST1 (U42) |
2005-2009 |
02 |
| 007 |
|
АККУМУЛЯТОР PKG, HEADPHONE |
|
2006-2009 |
|
| 008 |
15233869 |
DISPLAY, VIDEO W/ DVD (INCLS 10) (ACDelco #15233869)
| ST1 (U42, 27I, 28I, 48I) (EXC CF5) |
2008-2009 |
01 |
|
| 009 |
11519806 |
БОЛТ, HEX W/CON WA, M6X1X22, 14.88 THD, 17 OD, 9.8, 6280M, MACH, MAT-PT (VIDEO TAPE PLYR BRKT)
|
2004-2009 |
02 |
|
| 010 |
|
BEZEL, VIDEO DISPLAY (PART OF 8) |
|
2006-2009 |
|
| 011 |
88986454 |
CONNECTOR, PLYR-VIDEO DISC (12-WAY FEMALE, W/LEADS) (9.768) (ACDelco #PT1606)
| ST1 (U42) |
2005-2009 |
01 |
|
| 012 |
|
HARNESS, DM LP WRG (СМ. ГРУППУ 16.000 ВНУТРЕННЯЯ ОТДЕЛКА - КРЫША И СОЛНЦЕЗАЩИТНЫЙ КОЗЫРЕК FOR DETAILED ILLUSTRATED VIEW) |
|
2004-2009 |
|
