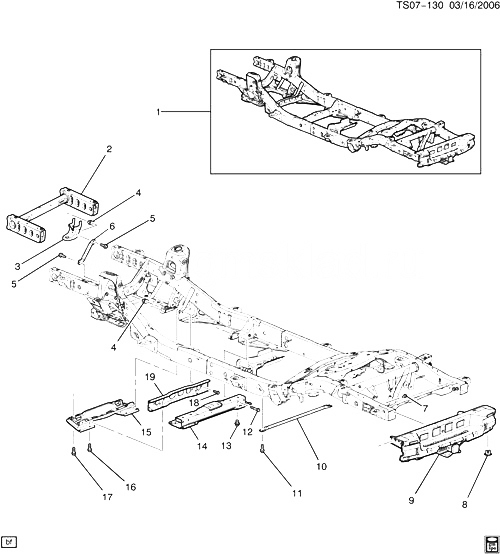

(TS07-130) - 2006-2009 ST155 РАМА CHEVROLET TRAILBLAZER (4WD) 2009

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15887726 FRAME, CHASSIS (INCLS 12, 13) ST1 (LL8) 2007-2009 01
001 15887727 FRAME, CHASSIS (INCLS 12, 13) ST1 (LH6, LS2) 2008-2009 01
002 89040431 FRAME, FRT HALF (INCLS 3) ST1 (06) 2006-2009 01
003 15019813 BRACKET, RAD SUPT (PART OF 2) ST1 2006-2009 01
003 15019814 BRACKET, RAD SUPT (PART OF 2) ST1 2006-2009 01
004 11516149 ГАЙКА, U, 8X1.25, MULTI THD, .08-4.0 THK PNL, PZ (RAD LWR SUPT SKID PLT) 2006-2009 04
005 11516542 БОЛТ, HFH, M8X1.25X30, 18 THD, 18 OD, 10.9, 7114M, MACH, P-PT (RAD LWR SUPT SKID PLT) 2006-2009 04
006 10400169 BRACE, FRM (FRT FRM STRG) ST1 (B4U) 2008-2009 01
007 11518436 БОЛТ, HFH W/TTH CON WA, M16X2X45, 20.5 THD, 36 OD, 10.9, 7114M, MACH, 6175M (RR BPR IMP BAR) 2006-2009 06
008 14103461 RETAINER, RR BPR FASCIA (PART OF 9) ST1 (06) 2006-2009 04
009 25863531 БАМПЕР, ЗАДНИЙ IMP (INCLS 8) (INCLS HITCH) ST1 (06) 2006-2009 01
010 15752337 BRACE, FRM (REAR AT #2 BODY MT) ST1 2007-2009 01
011 11519925 БОЛТ, HEX W/CON WA, M10X1.5X30, 13.1 THD, 28 OD, 10.9, 7114M, MACH, MAT P-PT (FRM BR) 2006-2009 02
012 БОЛТ, TRANS SUPT C/MBR (PART OF 1) 2006-2009
013 БОЛТ, TRANS SUPT C/MBR (PART OF 1) 2006-2009
014 15090722 CROSSMEMBER, TRANS SUPT ST1 2007-2009 01
015 15085421 CROSSMEMBER, S/GR ST1 2006-2009 01
016 11516328 БОЛТ, HFH, M10X1.5X30, 22 O.D., HDR PT, 10.9, 7114M (S/GR C/MBR) 2006-2009 06
017 11516109 БОЛТ, HFH, REDUCED BODY, M10X1.5X65, 25 THD, 22.3 O.D., HDR PT, 10.9, 7114M (S/GR C/MBR) 2006-2009 02
018 11516328 БОЛТ, HFH, M10X1.5X30, 22 O.D., HDR PT, 10.9, 7114M (S/GR C/MBR) 2006-2009 02
019 15019853 SUPPORT, S/GR ST1 2006-2009 01
