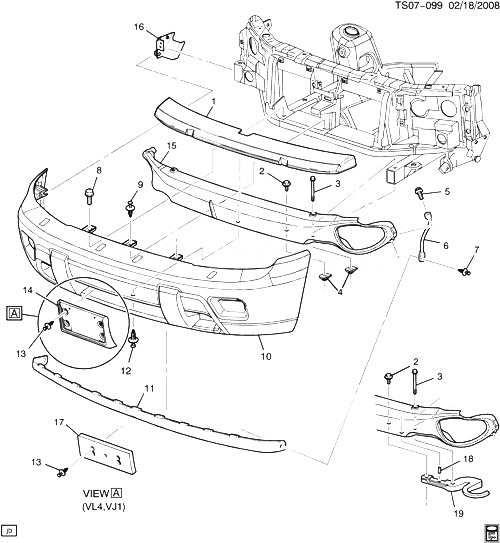

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
12335948 |
SPACER, FRT BPR FASCIA (PLASTIC)
| ST1 (TGK, X88, ZY1, ZY7) (EXC B4U, YC5, YC6) |
2006-2009 |
01 |
|
| 001 |
12335948 |
SPACER, FRT BPR FASCIA (PLASTIC)
| ST1 (TGK, ZY1, T84, T85, T96, X88, YC5, YC6) (EXC B4U) (EXPORT) |
2008-2009 |
01 |
|
| 001 |
19120214 |
SPACER, FRT BPR FASCIA (POLYETHYLENE FOAM) |
ST1 (X88, T96) (EXC T84, T85) |
2006-2009 |
01 |
| 002 |
11519925 |
БОЛТ, HEX W/CON WA, M10X1.5X30, 13.1 THD, 28 OD, 10.9, 7114M, MACH, MAT P-PT (FRT TOW HOOK)
|
2002-2009 |
02 |
|
| 003 |
11518393 |
БОЛТ, HFH W/CON WA, M14X2X180, 41 THD, 31 OD, 10.9, 7114M, MACH, MAT P-PT (FRT BPR IMP BAR)
|
2002-2009 |
02 |
|
| 004 |
11518395 |
ГАЙКА, FRT BPR IMP BAR |
ST1 |
2002-2009 |
02 |
| 005 |
11561674 |
БОЛТ, HEX W/FL WA, M6X1X20, 12 THD, 24 OD, 9.8, GMW3359, M-PT (FRT BPR FASCIA BR)
|
2002-2009 |
02 |
|
| 005 |
12345382 |
COMPOUND, ADHESIVE/SEALANT, THREAD, MED STRENGTH, (6ML) (FRT BPR FASCIA BR)
|
2002-2009 |
AR |
|
| 006 |
15193422 |
BRACE, FRT BPR FASCIA
| ST1 (06) (T84, T85, X88) |
2006-2009 |
01 |
|
| 006 |
15193422 |
BRACE, FRT BPR FASCIA
| ST1 (06) (X88) (EXC B4U, VD9, YC5, YC6) |
2008-2009 |
01 |
|
| 006 |
15193423 |
BRACE, FRT BPR FASCIA
| ST1 (06) (T84, T85, X88) |
2006-2009 |
01 |
|
| 006 |
15193423 |
BRACE, FRT BPR FASCIA
| ST1 (06) (X88) (EXC B4U, VD9, YC5, YC6) |
2008-2009 |
01 |
|
| 007 |
14103461 |
RETAINER, FRT A/DFL (PUSH IN) (7.831)
| ST1 (06) |
2003-2009 |
04 |
|
| 008 |
11610010 |
БОЛТ, HEX W/ CON WA, M8X1.25X40, 32 THD, 28 OD, 9.8, 7114M, MACH, P-PT (RAD SUPT)
|
2002-2009 |
04 |
|
| 009 |
10077283 |
RETAINER, FRT BPR FASCIA (PUSH IN) (SINGLE HEADED) (PUSH IN RIVET TYPE)
| ST1 (06) (X88, Z88, Z89) |
2008-2009 |
01 |
|
| 010 |
88937047 |
FASCIA, FRT BPR (PAINT TO MATCH) (W/O BRKTS)
| ST1 (06) (TGK, ZY1, T84, T85, T96, X88, YC5, YC6) (EXC B4U) (EXPORT) |
2008-2009 |
01 |
|
| 010 |
88937047 |
FASCIA, FRT BPR (PAINT TO MATCH) (W/O BRKTS)
| ST1 (06) (TGK, ZY1, T96, X88) (EXC B4U, VD9, YC5, YC6) |
2008-2009 |
01 |
|
| 011 |
15008771 |
DEFLECTOR, FRT AIR
| ST1 (06) (T84, T85, X88) (EXPORT) |
2006-2009 |
01 |
|
| 011 |
15008771 |
DEFLECTOR, FRT AIR
| ST1 (06) (X88) (EXC B4U, VD9, YC5, YC6) |
2008-2009 |
01 |
|
| 012 |
15056810 |
RETAINER, FRT BPR FASCIA (PUSH IN) (TO IMP BAR) (18.8MM)
| ST1 (06) (X88, Y99, Z88, Z89) |
2008-2009 |
04 |
|
| 013 |
15993201 |
RETAINER, FRT LIC PLT BRKT (FOR 9.3MM DIA HOLE) (NYLON) (*KIT1, KIT2) (17.505)
| ST155 |
2005-2009 |
04 |
|
| 014 |
|
BRACKET, FRT LIC PLT (*KIT1) |
|
2006-2009 |
|
| 014 |
|
BRACKET, FRT LIC PLT (*KIT1) |
|
2008-2009 |
|
| 015 |
15174444 |
БАМПЕР, ПЕРЕДНИЙ IMP
| ST1 (06) |
2002-2009 |
01 |
|
| 016 |
15147253 |
BRACKET, FRT BPR FASCIA
| ST1 (06) |
2005-2009 |
01 |
|
| 016 |
15147254 |
BRACKET, FRT BPR FASCIA
| ST1 (06) |
2003-2009 |
01 |
|
| 017 |
|
BRACKET, FRT LIC PLT (*KIT2) |
|
2006-2009 |
|
| 017 |
|
BRACKET, FRT LIC PLT (*KIT2) |
|
2008-2009 |
|
| 018 |
15010197 |
PIN, FRT TOW HOOK (PART OF 19) (16.475) |
ST1 |
2004-2009 |
02 |
| 019 |
15155842 |
HOOK, FRT TOW (INCLS 18)
| ST1 (V76, X88) |
2003-2009 |
01 |
|
| 019 |
15155843 |
HOOK, FRT TOW (INCLS 18)
| ST1 (V76, X88) |
2003-2009 |
01 |
|
| K01 |
15032014 |
ATTACHMENT KIT, LIC PLT (INCLS 13, 14) (INCLS BRKT, RETAINERS INSTRUCTION)
| ST1 (06) (VK3, X88, Z88) (EXC VJ1) |
2005-2009 |
01 |
|
| K02 |
15032015 |
ATTACHMENT KIT, LIC PLT (INCLS 13, 17) (INCLS FT BRKT)
| ST1 (VJ1) (EXPORT) |
2002-2009 |
01 |
|
| K02 |
15032015 |
ATTACHMENT KIT, LIC PLT (INCLS 13, 17) (INCLS FT BRKT)
| ST1 (VL4) (EXC G67, VJ1) |
2002-2009 |
01 |
|
