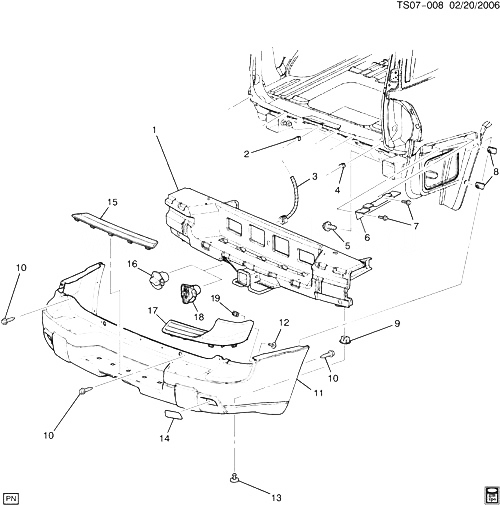

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25863531 |
БАМПЕР, ЗАДНИЙ IMP (INCLS 9) (INCLS HITCH)
| ST1 (06) |
2006-2009 |
01 |
|
| 002 |
11570654 |
ГАЙКА, RR BPR FASCIA (4.2 X 1.41) (FITS 8.75 SQ HOLE) (9.665)
| ST1 (06) |
2006-2009 |
05 |
|
| 003 |
|
HARNESS, CHAS RR WRG (СМ. ГРУППУ 02.000 ЖГУТ ПРОВОДОВ/ШАССИ FOR DETAILED ILLUSTRATED VEIW) |
|
2006-2009 |
|
| 004 |
11519497 |
ГАЙКА, PUSH IN, SPECIAL, 4.2X1.4 SINGLE THREAD, SAE 1050 STL, GM7111M (RR BPR FASCIA)
|
2006-2009 |
02 |
|
| 005 |
11518436 |
БОЛТ, HFH W/TTH CON WA, M16X2X45, 20.5 THD, 36 OD, 10.9, 7114M, MACH, 6175M (RR BPR IMP BAR) |
|
2006-2009 |
06 |
| 006 |
15128530 |
BRACKET, RR BPR FASCIA SI (METAL)
| ST1 (X88) (EXC B4U, VD9, YC5, YC6) |
2008-2009 |
01 |
|
| 006 |
15128531 |
BRACKET, RR BPR FASCIA SI (METAL)
| ST1 (X88) (EXC B4U, VD9, YC5, YC6) |
2008-2009 |
01 |
|
| 007 |
11517517 |
БОЛТ, HFH, M6X1X16, 13.5 THD, 14.2 OD, 9.8, SN-ZN, MACH, HDR-PT (RR BPR FASCIA SI BRKT) |
|
2006-2009 |
04 |
| 008 |
11515638 |
ГАЙКА, U-TYPE, M4.2X1.41X10.5.5X22, .65-3.8 PNL THK, 1050, ZF (RR BPR FASCIA)
|
2006-2009 |
04 |
|
| 009 |
14103461 |
RETAINER, RR BPR FASCIA (PART OF 1)
| ST1 (06) |
2006-2009 |
04 |
|
| 010 |
11570498 |
БОЛТ, HWH W/FL WA, M4.2X1.41X20, 11.4 THD, 17 OD, ISO 2702 STL , GMW4205, T (RR BPR FASCIA)
|
2006-2009 |
11 |
|
| 011 |
88937016 |
FASCIA, RR BPR (PAINT TO MATCH) (W/O PADS) (FOR VEH W/3 STEP PADS) |
ST1 (06) (TGK, ZY1, X88) (EXC T96) |
2006-2009 |
01 |
| 011 |
89045604 |
FASCIA, RR BPR (LOWER PORTION OF FASCIA HAS GRAINED FINISH) (PAINT TO MATCH) (W/O PADS)
| ST1 (06) (TGK, ZY1, T96, X88) (EXC B4U, VD9, YC5, YC6) |
2008-2009 |
01 |
|
| 012 |
11517342 |
БОЛТ, HEX HD, W/FL WA, M6X1X20, 9.53 THD, 17 O.D., P-PT, 9.8, 6280M (RR BPR FASCIA PAD) |
|
2006-2009 |
02 |
| 013 |
15733971 |
RETAINER, RR BPR FASCIA (13MM) (1.272)
| ST1 (06) |
2006-2009 |
04 |
|
| 014 |
15000044 |
REFLECTOR, RR BPR
| ST1 (X88) (EXC B4U) |
2006-2009 |
01 |
|
| 014 |
15000427 |
REFLECTOR, RR BPR
| ST1 (X88) (EXC B4U) |
2006-2009 |
01 |
|
| 015 |
88938462 |
PAD, RR BPR STEP CTR (USED ON VEHICLES WITH 3 STEP PADS)
| ST1 (06) (X88) |
2006-2009 |
01 |
|
| 016 |
15366057 |
CAP, TRLR WRG RCPT
| ST1 (06) (EXC UY7) |
2006-2009 |
01 |
|
| 017 |
12335817 |
PAD, RR BPR STEP OTR
| ST1 (X88) |
2006-2009 |
01 |
|
| 017 |
12335818 |
PAD, RR BPR STEP OTR
| ST1 (X88) |
2006-2009 |
01 |
|
| 018 |
12191503 |
RECEPTACLE, TOW VEH ELEC (W/DOOR)
| ST1 |
2006-2009 |
01 |
|
| 019 |
11516372 |
ГАЙКА, U-TYPE, M5X1, MULTI THD, 2.0-5.0 PNL THK, PZ (RR BPR FASCIA PAD)
|
2006-2009 |
04 |
|
