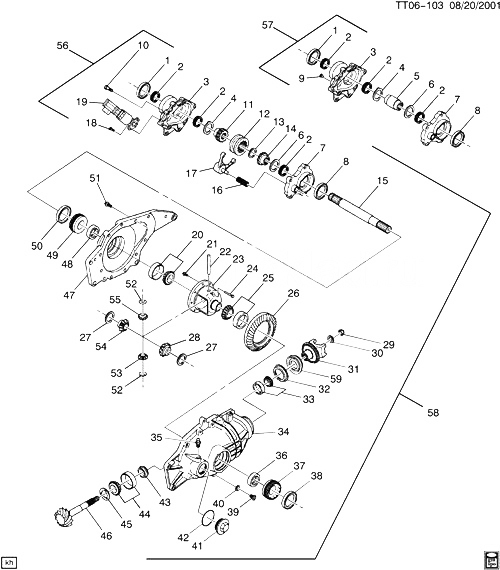

(TT06-103) - 2002-2009 T ДИФФЕРЕНЦИАЛ/ПЕРЕДНЯЯ ОСЬ CHEVROLET TRAILBLAZER (4WD) 2009

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 12479302 SEAL, FRT DRV AXLE INR SHF (OUTER) (PART OF BEARING ASM) (PART OF 56, 57) (BEARING CODES AJ, AK) T1 2002-2009 01
002 26053326 BEARING, FRT DRV AXLE INR SHF (PART OF 56, 57) (BEARING CODE 3326) T1 2005-2009 03
003 12479081 HOUSING, FRT WHL DRV INTER SHF (PART OF 56, 57) (OUTER) T1 (NP8) 2004-2009 01
004 12471625 WASHER, FRT WHL DRV SHF THR (INNER) (PART OF 56, 57) (THRUST, 70 OD, 42.125 ID, 1.5 THD, STEEL 1010) T1 2002-2009 01
006 12471623 WASHER, FRT WHL DRV SHF THR (OUTER) (PART OF 56, 57) (THRUST, 61.4 OD, 42.125 ID, 1.5 THD, STEEL 1010) T1 2002-2009 01
007 12471633 HOUSING, FRT WHL DRV INTER SHF (INNER) (PART OF 56, 57) T1 2002-2009 01
008 15801507 SEAL, FRT DRV AXLE INR SHF (INNER) (PART OF BEARING ASM) (PART OF 56, 57) T1 2002-2009 02
010 15726460 БОЛТ, FRT DRV AXLE INR SHF HSG (PART OF 56) 2002-2009 04
011 12471628 GEAR, FRT DRV AXLE CLU (OUTER) (PART OF 56) T1 2002-2009 01
012 26036092 SLEEVE, FRT DRV AXLE CLU (PART OF 56) T1 (NP8) 2004-2009 01
013 12471629 WASHER, FRT WHL DRV SHF (INNER) (PART OF 56) (FLAT, 39MM OD, 20MM ID, 2.5MM THD) T1 (NP8) 2004-2009 01
014 12471627 GEAR, FRT DRV AXLE CLU (INNER) (PART OF 56) T1 2002-2009 01
015 12479125 SHAFT, FRT DRV AXLE INR (PART OF 58) T1 2005-2009 01
016 12471624 ПРУЖИНА, FRT DRV AXLE CLU FORK (PART OF 56) T1 (NP8) 2004-2009 01
017 12479132 FORK, FRT DRV AXLE CLU (PART OF 56) T1 (NP8) 2004-2009 01
018 11508600 БОЛТ, HFH, M6X1X20, 9.8, PZOR (PART OF 56) (ACDelco #11508600) 2002-2009 02
019 12471631 ACTUATOR, FRT DRV AXLE (PART OF 56) T1 (NP8) 2005-2009 01
020 26046759 BEARING, FRT DIFF (PART OF 58) (ACDelco #S1298) T1 2005-2009 02
021 14056135 БОЛТ, FRT DIFF R/GR (F/AXL) (PART OF 58) (M10X1.25X14.6, 20 THD) (W/HD SERRATION) (*KIT3, KIT4) T1 2005-2009 10
022 14039589 SHAFT, FRT DIFF P/GR (PART OF 58) T1 2005-2009 01
023 26046002 CASE, FRT DIFF (F/AXL) (PART OF 58) T1 2005-2009 01
024 25872305 БОЛТ, F/AXL DIFF P/GR SHF LK (PART OF 58) T1 2007-2009 01
025 26046759 BEARING, FRT DIFF (PART OF 58) (ACDelco #S1298) T1 2005-2009 02
026 GEAR, FRT DIFF RING (PART OF 58) (*KIT3, KIT4) 2002-2009
027 14039598 WASHER, FRT DIFF SI GR THR (F/AXL) (PART OF 58) T1 2005-2009 02
028 GEAR, FRT DIFF SI (PART OF 58) (*KIT1) 2002-2009
029 88891763 ГАЙКА, FRT DIFF DRV P/GR (PART OF 58) (M10) (5.595) T1 2005-2009 01
030 00517900 WASHER, FRT DIFF DRV PINION GR (PART OF 58) (.890X1.625X.190) (5.595) T1 2005-2009 01
031 12471615 FLANGE, FRT DIFF CARR (PART OF 58) T1 2005-2009 01
032 12471614 SEAL, FRT DIFF DRV P/GR (PART OF 58) T1 2005-2009 01
033 09417784 BEARING, FRT DIFF DRV P/GR OTR (INCLS CUP AND CONE, TIMKEN, M86649-M86610) (PART OF 58) (5.447) (ACDelco #S9) T1 2005-2009 01
034 CARRIER, FRT DIFF (PART OF 58) (*KIT5) 2002-2009
035 12471619 CONNECTOR, FRT DIFF CARR VENT HOSE (PART OF 58) T1 2005-2009 01
036 26053326 BEARING, FRT DRV AXLE INR SHF (PART OF 37, 58) (BEARING CODE 3326) T1 2005-2009 03
037 26054695 ADJUSTER, FRT DIFF BRG (INCLS 36) (PART OF 58) (INCLS NUT, SLEEVE BRG) T1 2005-2009 01
038 12471618 SEAL, FRT DRV AXLE INR SHF (PART OF 58) T1 2005-2009 01
039 15588374 PLUG, FRT DIFF CARR OIL DRN (PART OF 58) (M12X1.5) (5.400) T1 2005-2009 01
040 15588383 ПРОКЛАДКА, FRT DIFF CARR OIL DRN PLUG (F/AXL) (PART OF 58) (4.195) T1 2005-2009 01
041 12471620 PLUG, FRT DIFF CARR OIL FIL (PART OF 58) (M40 X 1.5) T1 2005-2009 01
042 12471621 WASHER, FRT DIFF CARR (PART OF 58) (BLACK) T1 2005-2009 01
043 03974898 SPACER, FRT DIFF DRV P/GR BRG (F/AXL) (PART OF 58) (5.453) T1 2002-2009 01
044 09439879 BEARING, FRT DIFF DRV P/GR INR (PART OF 58) (5.447) (ACDelco #S618) T1 2005-2009 01
045 SHIM, FRT DIFF DRV P/GR BRG (PART OF 58) (*KIT2) 2002-2009
046 GEAR, FRT DIFF PINION (PART OF 58) (*KIT3, KIT4) 2002-2009
047 CARRIER, FRT DIFF (PART OF 58) (*KIT5) 2002-2009
048 26066885 BEARING, DIFF TUBE (PART OF 58) (USED ON HOUSING) T1 2005-2009 01
049 12471612 ADJUSTER, FRT DIFF BRG (PART OF 58) (LESS NUT, SLEEVE BRG) T1 2005-2009 01
050 12471617 SEAL, FRT DRV AXLE INR SHF (PART OF 58) T1 2005-2009 01
051 26025087 BOLT (PART OF 58) (5.398) 2002-2009 10
052 14039599 WASHER, FRT DIFF P/GR THR (F/AXL) (PART OF 58) T1 2002-2009 02
053 GEAR, FRT DIFF PINION (PART OF 58) (*KIT1) 2002-2009
054 GEAR, FRT DIFF SI (PART OF 58) (*KIT1) 2002-2009
055 GEAR, FRT DIFF PINION (PART OF 58) (*KIT1) 2002-2009
056 15884292 BEARING, FRT WHL DRV INTER SHF (INCLS 1-4, 6-8, 10-14, 16-19) T1 (NP8) 2004-2009 01
058 15931322 CARRIER, FRT DIFF (3.42 RATIO) (INCLS 15, 20-55, 59) T1 (GU6) 2002-2009 01
058 15931324 CARRIER, FRT DIFF (3.73 RATIO) (INCLS 15, 20-55, 59) T1 (GT4) 2005-2009 01
058 15931325 CARRIER, FRT DIFF (4.10 RATIO) (INCLS 15, 20-55, 59) T1 (GT5) 2008-2009 01
059 12471616 DEFLECTOR, FRT DIFF DRV P/GR BRG DIRT (PART OF 58) (6.056) T1 2002-2009 01
K01 26056137 GEAR KIT, FRT DIFF SI PINION (F/AXL) (INCLS 28, 53-55) (INCLS SIDE PINION GEARS, SHAFT, BOLT AND WASHERS) T1 2005-2009 01
K02 00369131 SHIM KIT, FRT DIFF DRV P/GR BRG (INCLS 45) (.53-.64MM THK) (.021-.025IN) T1 2002-2009 01
K02 00369132 SHIM KIT, FRT DIFF DRV P/GR BRG (F/AXL) (INCLS 45) (.66-.79MM THK) (.026-.031IN) T1 2002-2009 01
K02 00369133 SHIM KIT, FRT DIFF DRV P/GR BRG (F/AXL) (INCLS 45) (.81-.94MM THK) (.032-.037 THK) T1 2002-2009 01
K02 14079093 SHIM KIT, FRT DIFF DRV P/GR BRG (F/AXL) (INCLS 45) (.96-1.04MM THK) T1 2002-2009 01
K03 88967126 GEAR KIT, FRT DIFF RING DRV PINION (INCLS 21, 26, 46) T1 (GT4) 2005-2009 01
K03 88967126 GEAR KIT, FRT DIFF RING DRV PINION (INCLS 21, 26, 46) (5.529) T1 (GT4) 2002-2009 01
K03 88967128 GEAR KIT, FRT DIFF RING DRV PINION (INCLS 21, 26, 46) T1 (GU6) 2002-2009 01
K03 88967128 GEAR KIT, FRT DIFF RING DRV PINION (INCLS 21, 26, 46) (5.529) T1 (GU6) 2002-2009 01
K04 88967130 GEAR SET, FRT DIFF RING DRV PINION (INCLS 21, 26, 46) T1 (GT5) 2005-2009 01
K05 19153444 CARRIER KIT, FRT DIFF (INCLS 34, 47) T1 2005-2009 01
