| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |

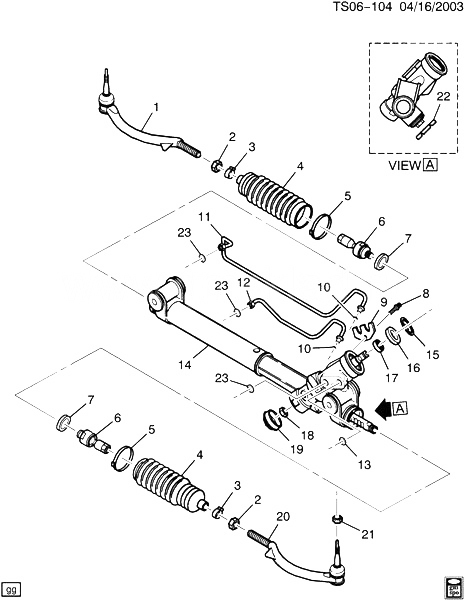

| 001 |
|
ROD, STRG LNKG OTR TIE (*KIT1) |
|
2002-2009 |
|
| 004 |
|
BOOT, S/GR (PART OF 14) (*KIT2) |
|
2002-2009 |
|
| 006 |
|
ROD, STRG LNKG INR TIE (PART OF 14) (*KIT3) |
|
2002-2009 |
|
| 007 |
26088111 |
RING, S/GR SHF DPNR (PART OF 14)
| ST1 (N40) |
2002-2009 |
02 |
|
| 008 |
26084815 |
БОЛТ, P/S GR INL OTLT PIPE RET (PART OF 14) |
ST1 |
2002-2009 |
01 |
| 008 |
26084815 |
БОЛТ, P/S GR INL OTLT PIPE RET (PART OF 14) (6.670) |
ST1 |
2002-2009 |
01 |
| 009 |
|
BRACKET, P/S GR INL OTLT PIPE CLIP (PART OF 14) |
|
2002-2009 |
|
| 010 |
26081619 |
SEAL, S/GR PIPE (O RING) (PART OF 11, 12, 14) (6.00MM)
| ST155 (N40) |
2002-2009 |
02 |
|
| 011 |
26100271 |
PIPE KIT, S/GR (INCLS 10) (PART OF 14) |
ST155 (N40) |
2002-2009 |
01 |
| 012 |
26100270 |
PIPE KIT, S/GR (INCLS 10) (PART OF 14) |
ST155 (N40) |
2002-2009 |
01 |
| 013 |
26080380 |
SEAL, P/S GR OTLT HOSE (PART OF 14) (9.04MM IDX4.10MM THK) (AT GEAR)
| ST155 |
2005-2009 |
02 |
|
| 014 |
19207780 |
GEAR KIT, STRG (REMAN) (INCLS 2-13, 15-19, 22, 23) (16MM TIE ROD ENDS)
| ST155 (06) (N40, X88, Z88, Z89) (EXC B4U) |
2008-2009 |
01 |
|
| 014 |
19207782 |
GEAR KIT, STRG (REMAN) (INCLS 2-13, 15-19, 22, 23) |
ST155 (06) (B4U, N40) |
2009-2009 |
01 |
| 015 |
07828017 |
RING, S/GR STUB SHF SEAL RET (PART OF 14) (*KIT5) |
ST155 (N40) |
2002-2009 |
01 |
| 016 |
|
SEAL, S/GR STUB SHF (PART OF 14) (*KIT5) |
|
2002-2009 |
|
| 017 |
|
BEARING, S/GR STUB SHF (PART OF 14) (*KIT5) |
|
2002-2009 |
|
| 018 |
|
ГАЙКА, LKG (PART OF 14) |
|
2002-2009 |
|
| 019 |
07844439 |
COVER, S/GR HSG (PART OF 14) (6.824) |
ST155 (06) (N40) |
2005-2009 |
01 |
| 020 |
|
ROD, STRG LNKG OTR TIE (*KIT4) |
|
2002-2009 |
|
| 021 |
11516074 |
ГАЙКА, STRG LNKG OTR TIE ROD (HEX M14X2, 13THK) (8.917) (W/M14X2 THREADS)
| ST1 (N40) |
2005-2009 |
02 |
|
| 022 |
|
ГАЙКА, S/GR RACK ADJR (PART OF 14) |
|
2008-2009 |
|
| K01 |
26100287 |
ROD KIT, STRG LNKG OTR TIE (INCLS 1) (16MM THREADS ON GEAR END)
| ST1 (N40) |
2005-2009 |
01 |
|
| K02 |
26089593 |
BOOT KIT, S/GR (INCLS 3, 4, 5) (INCLUDES CLAMPS)
| ST1 |
2003-2009 |
02 |
|
| K03 |
26100288 |
ROD KIT, STRG LNKG INR TIE (INCLS 2, 3, 5, 6) (16MM X 1.5) (W/GEARS STAMPED 15162147, 15185191, 15217081)
| ST1 (N40) |
2003-2009 |
02 |
|
| K03 |
26100288 |
ROD KIT, STRG LNKG INR TIE (INCLS 2, 3, 5, 6) (16MM X 1.5) (W/GEARS STAMPED 15162147, 15185191, 15217081) (6.230)
| ST1 (N40) |
2005-2009 |
02 |
|
| K04 |
26100286 |
ROD KIT, STRG LNKG OTR TIE (INCLS 20) (16MM THREADS ON GEAR END)
| ST1 (N40) |
2005-2009 |
01 |
|
| K05 |
26032824 |
BEARING KIT, S/GR STUB SHF (INCLS 15-17) (INCLS SEAL) |
ST155 (06) (N40, X88, Z88, Z89) (EXC B4U) |
2008-2009 |
01 |
