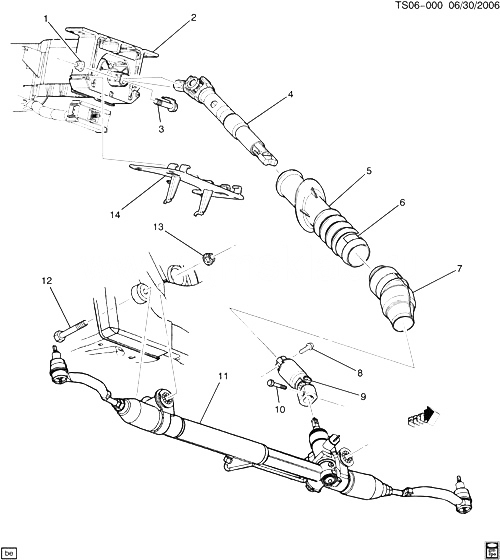

(TS06-000) - 2006-2009 ST1(06) РУЛЕВАЯ СИСТЕМА И СОПРЯЖЕННЫЕ ДЕТАЛИ CHEVROLET TRAILBLAZER (4WD) 2009

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 11514597 ГАЙКА, HFH, 10X1.5 THD, 9.8 THK, 21.8 OD, 510M (10) ZF 7111M (UPR INTER STRG SHF) (2.383) 2002-2009 01
002 COLUMN, STRG (СМ. ГРУППУ 06.000 РУЛЕВАЯ КОЛОНКА FOR DETAILED ILLUSTRATED VIEW) 2002-2009
003 26058124 БОЛТ, UPR INTER STRG SHF (M10X1.5X36) (HFH W/RETAINER NYLON LOCK) (UPR TO STRG COL) ST1 2002-2009 01
004 15206668 SHAFT, UPR INTER STRG (6.524) ST1 (06) 2008-2009 01
005 15064639 SEAL, INTER STRG SHF UPR (INCLS 6) ST1 2006-2009 01
006 LABEL, INFL RST SYS SERV CAUTION (PART OF 5) 2006-2009
007 15155711 SEAL, INTER STRG SHF LWR (6.518) ST1 (06) 2008-2009 01
008 11518143 БОЛТ, INTER STRG SHF UPR (M10X1.5X38, 14.5) (8.900) ST1 2002-2009 01
009 15880680 SHAFT, LWR INTER STRG ST155 (06) (X88, Z88, Z89) (EXC B4U) 2008-2009 01
009 15880681 SHAFT, LWR INTER STRG ST155 (06) (B4U) 2006-2009 01
010 11518143 БОЛТ, INTER STRG SHF LWR (M10X1.5X38, 14.5) (8.900) ST1 2002-2009 01
011 GEAR, STRG (СМ. ГРУППУ 06.000 РУЛЕВОЙ МЕХАНИЗМ В СБОРЕ FOR DETAILED ILLUSTRATED VIEW) 2002-2009
012 11519349 БОЛТ, S/GR (STAMPED ZA) (M14X2X140, 45 THD) (8.900) ST1 (N40) 2005-2009 02
013 11516382 ГАЙКА, S/GR (M14X2X15) (W/O J CLIP RETAINER) (8.917) ST1 2005-2009 02
014 15076504 BRACKET, BODY WRG HARN STRG COL CONN ST1 2008-2009 01
