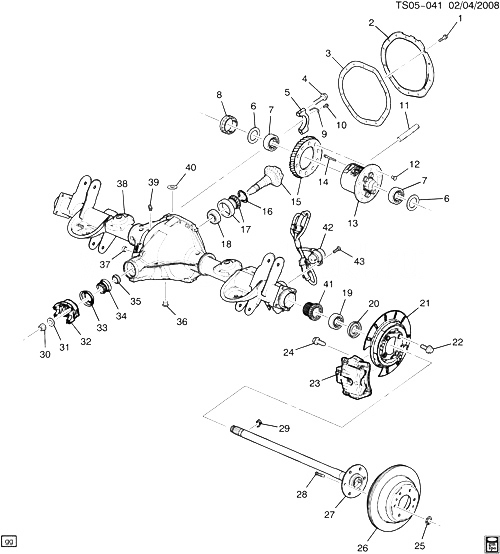

(TS05-041) - 2006-2009 ST155(06) ЗАДНЯЯ ОСЬ В СБОРЕ-DETAILS(G86) CHEVROLET TRAILBLAZER (4WD) 2009

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 12471307 БОЛТ, R/AXL HSG CVR (PART OF 2) (M8X1.25X20) ST155 2006-2009 10
005 CAP, DIFF BRG (PART OF 38) 2006-2009
010 11513703 БОЛТ, HFH M8X1.25X18 (DIFF BRG ADJ NUT LK) 2006-2009 01
016 00517900 WASHER, DIFF DRV P/GR (PART OF 15) (.890X1.625X.190) ST1 2006-2009 01
018 12479113 SHIM KIT, DIFF DRV P/GR BRG (.020-.024) (REAR AXLE) ST155 2006-2009 01
018 12479114 SHIM KIT, DIFF DRV P/GR BRG (.025-.029) (REAR AXLE) ST155 2006-2009 01
018 12479115 SHIM KIT, DIFF DRV P/GR BRG (.030-.034) (REAR AXLE) ST155 2006-2009 01
018 12479116 SHIM KIT, DIFF DRV P/GR BRG (.035-.039) (REAR AXLE) ST155 2006-2009 01
018 12479117 SHIM KIT, DIFF DRV P/GR BRG (.040-.043) (REAR AXLE) ST155 2006-2009 01
018 12479118 SHIM KIT, DIFF DRV P/GR BRG (.044-.047) (REAR AXLE) ST155 2006-2009 01
018 12479119 SHIM KIT, DIFF DRV P/GR BRG (.048-.050) (REAR AXLE) ST155 2006-2009 01
019 12479031 BEARING, RR WHL (ACDelco #RW20-10) ST1 2006-2009 02
020 12471686 SEAL, R/AXL SHF (ACDelco #291-315) ST1 2006-2009 02
021 88935749 PLATE, RR BRK BKG ST1 2006-2009 01
021 88935750 PLATE, RR BRK BKG ST1 2006-2009 01
022 15065927 БОЛТ, PARK BRK (M12X1.75X34) ST1 2006-2009 08
023 CALIPER, RR BRK (СМ. ГРУППУ 04.000 СУППОРТ ТОРМОЗА/ЗАДНИЙ FOR DETAILED ILLUSTRATED VIEW) 2006-2009
024 15012506 БОЛТ, RR BRK CLPR (M14X2.0X37, 37THD) (27.3-OD., 10.9, GM6174M) ST1 2006-2009 04
025 11502737 ГАЙКА, PUSH ON, M12X1.75, PC (RR BRK ROT (PUSH ON)) 2006-2009 04
026 15134671 ROTOR, RR BRK (ACDelco #177-882) ST1 2006-2009 02
028 09595178 STUD, RR WHL (BOLT-ROUND HEAD, M12X1.5X40, W/SERRATIONS, GM6177M STL, GMW14) ST1 2006-2009 12
030 88891763 ГАЙКА, DIFF DRV P/GR (REAR AXLE) (PART OF 15, 32) (M10) ST1 2006-2009 01
031 00517900 WASHER, DIFF DRV P/GR (PART OF 32) (.890X1.625X.190) ST1 2006-2009 01
037 00444788 PLUG, HEADLESS SQ SOCKET 1/2 (PART OF 2) 2006-2009 01
041 12479286 RING, WHL SPD SEN RELUCTOR (R/AXLE) ST1 (06) 2006-2009 02
042 15131391 ДАТЧИК, RR WHL SPD (ACDelco #15131391) ST1 2006-2009 02
043 12479287 БОЛТ, RR WHL SPD SEN (M6X1X24) ST1 2006-2009 02
