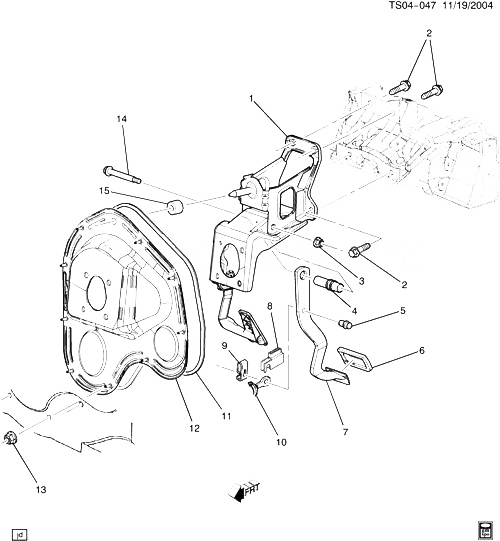

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15145760 |
BRACKET, BRK PED |
ST1 (JF8) (EXC JF4) |
2008-2009 |
01 |
| 002 |
11589166 |
БОЛТ, BRK PED (8.900) |
ST1 |
2004-2009 |
04 |
| 003 |
11514598 |
ГАЙКА, BRK PED PIV (HF 12X1.75) (8.915)
| ST1 |
2004-2009 |
01 |
|
| 004 |
15157907 |
BUSHING, BRK PED PIV |
ST1 (JF8) (EXC JF4) |
2009-2009 |
01 |
| 005 |
|
PIN, BRK PED PUSH ROD (PART OF 7) |
|
2006-2009 |
|
| 006 |
14030895 |
COVER, BRK PED (PART OF 7) |
ST1 (EXC JF4) |
2005-2009 |
01 |
| 007 |
15817772 |
PEDAL, BRK (INCLS 5, 6) |
ST1 (JF8) (EXC JF4) |
2007-2009 |
01 |
| 008 |
25771554 |
SWITCH, S/LP (ACDelco #D1588G)
| ST1 |
2005-2009 |
01 |
|
| 009 |
15048329 |
RETAINER, BRK PED PUSH ROD (29.13 MM) (WITHOUT BOLT) |
ST1 (DAY, OKL) |
2004-2009 |
01 |
| 010 |
|
ROD, P/B BOOS PUSH (СМ. ГРУППУ 04.000 ТОРМОЗНОЙ УСИЛИТЕЛЬ ASM FOR DETAILED ILLUSTRATED VIEW) (PRODUCTION) (4.805) |
|
2004-2009 |
|
| 011 |
15870865 |
INSULATOR, BRK PED BRKT PLT |
ST1 (06) |
2006-2009 |
01 |
| 012 |
15247616 |
PLATE, BRK PED BRKT |
ST1 (JF8, M30, M70) |
2006-2009 |
01 |
| 013 |
11508388 |
ГАЙКА, HEX W/CON WA, M6X1, 23.75 O.D., 5.55THK, 9, POR (BRK PED BRKT PLT) (8.915) |
|
2004-2009 |
09 |
| 014 |
15000145 |
БОЛТ, BRK PED PIV (12X1.75X120, 25)
| ST1 |
2004-2009 |
01 |
|
| 015 |
15145761 |
SEAL, BRK PED BRKT |
ST1 (EXC JF4) |
2004-2009 |
01 |
