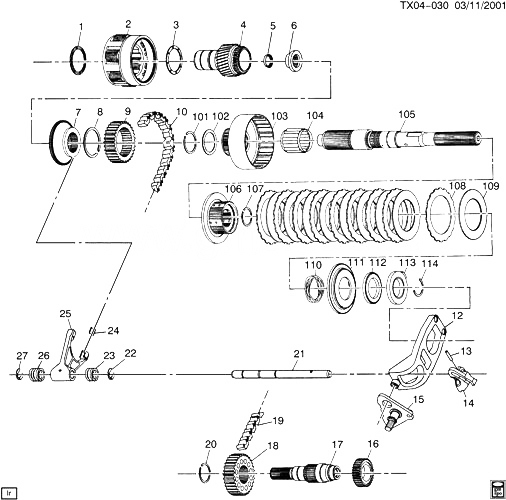

(TX04-030) - 2004-2009 T1 РАЗДАТОЧНАЯ КОРОБКА ЧАСТЬ 2 ВНУТРЕННИЕ КОМПОНЕНТЫ (NVG 226C)(NP8) CHEVROLET TRAILBLAZER (4WD) 2009

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 88935673 WASHER, TRFER CASE HIGH/LOW PLNT CARR THR (FRONT) T1 (NP8) 2002-2009 01
002 88962360 CARRIER, TRFER CASE HIGH/LOW PLNT T1 2002-2009 01
003 88935674 WASHER, TRFER CASE HIGH/LOW PLNT CARR THR (REAR) T1 (NP8) 2002-2009 01
004 88935672 GEAR, TRFER CASE INPUT (W/INPUT SHF) T1 (NP8) 2004-2009 01
005 88935695 SEAL, TRFER CASE INPUT SHF (BORE SEAL) (INNER) T1 (NP8) 2004-2009 01
006 88935694 BEARING, TRFER CASE INPUT SHF THR T1 2006-2009 01
007 89059614 СЦЕПЛЕНИЕ, TRFER CASE HIGH/LOW T1 2002-2009 01
008 12547606 RING, TRFER CASE TWO/FOUR WHL DRV CLU RET (TO HUB) (1.5) (4.537) T1 2002-2009 01
009 88935659 SPROCKET, TRFER CASE FRT OUTPUT SHF DRV T1 2005-2009 01
010 89059627 CHAIN, TRFER CASE TWO/FOUR WHL DRV T1 (NP8) 2005-2009 01
012 19178970 LEVER, TRFER CASE FOUR WHL DRV CLU (USE T/W 19178973) T1 2002-2009 01
013 19132965 PIN, TYPE-C-SPRING 3/16X1 1/4 ZC (TRFER CASE TWO/FOUR WHL DRV SHFT FORK) 2002-2009 01
014 88935649 LEVER, TRFER CASE SHFT DTNT T1 (NP8) 2009-2009 01
015 88935647 SHAFT, TRFER CASE CONT ACTR LVR T1 (NP8) 2004-2009 01
016 88935658 WHEEL, TRFER CASE FRT OUTPUT SHF SPD RELUCTOR (4.329) T1 2005-2009 01
016 88935658 WHEEL, TRFER CASE FRT OUTPUT SHF SPD RELUCTOR T1 2002-2009 01
017 88935657 SHAFT, TRFER CASE FRT OUTPUT (W/WHEEL) T1 2002-2009 01
018 88935660 SPROCKET, TRFER CASE TWO/FOUR WHL DRV DRVN T1 2002-2009 01
018 88935660 SPROCKET, TRFER CASE TWO/FOUR WHL DRV DRVN T1 (NP8) 2005-2009 01
019 89059627 CHAIN, TRFER CASE TWO/FOUR WHL DRV T1 (NP8) 2005-2009 01
020 12547477 RING, TRFER CASE TWO/FOUR WHL DRV SPKT RET (2.5) (OUTER) T1 2007-2009 01
021 88935648 SHAFT, TRFER CASE SHFT FORK T1 2002-2009 01
022 88935662 RETAINER, TRFER CASE SHFT FORK SPR T1 2002-2009 02
023 88935663 ПРУЖИНА, TRFER CASE SHFT FORK T1 2002-2009 02
024 PAD, TRFER CASE RANGE SHFT FORK CTR (PART OF 25) 2004-2009
025 88935664 FORK, TRFER CASE HIGH/LOW SHFT (INCLS 24) T1 (NP8) 2009-2009 01
026 88935663 ПРУЖИНА, TRFER CASE SHFT FORK T1 2002-2009 02
027 88935662 RETAINER, TRFER CASE SHFT FORK SPR T1 2002-2009 02
101 88935696 RING, TRFER CASE TWO/FOUR WHL DRV CLU RET (TO HOUSING) (ACDelco #88935696) T1 2002-2009 01
102 88935697 WASHER, TRFER CASE RR OUTPUT SHF THR (TO СЦЕПЛЕНИЕ HOUSING) T1 2004-2009 01
103 88935698 HOUSING, TRFER CASE FOUR WHL DRV CLU T1 (NP8) 2005-2009 01
104 12470557 BEARING, TRFER CASE FOUR WHL DRV CLU HSG T1 (NP8) 2004-2009 01
105 88935654 SHAFT, TRFER CASE RR OUTPUT T1 (NP8) 2002-2009 01
106 88935699 HUB, TRFER CASE FOUR WHL DRV CLU T1 (NP8) 2005-2009 01
107 12547606 RING, TRFER CASE TWO/FOUR WHL DRV CLU RET (TO HUB) (1.5) (4.537) T1 2002-2009 01
108 88935700 PLATE, TRFER CASE FOUR WHL DRV CLU PRESS (STEEL) T1 2002-2009 09
109 88935701 PLATE, TRFER CASE FOUR WHL DRV CLU PRESS (FRICTION) T1 2002-2009 09
110 88935702 ПРУЖИНА, TRFER CASE FOUR WHL DRV CLU T1 (NP8) 2005-2009 01
111 88935703 PLATE, TRFER CASE FOUR WHL DRV CLU PRESS (APPLY) T1 2002-2009 01
112 19178973 BEARING, TRFER CASE FOUR WHL DRV CLU PRESS PLT (INCLS 113) (USE T/W 19178970) T1 2002-2009 01
113 PLATE, TRFER CASE FOUR WHL DRV CLU BKG (PART OF 112) 2004-2009
114 12547623 RING, TRFER CASE FOUR WHL DRV CLU PRESS PLT BRG HUB RET T1 2005-2009 01
