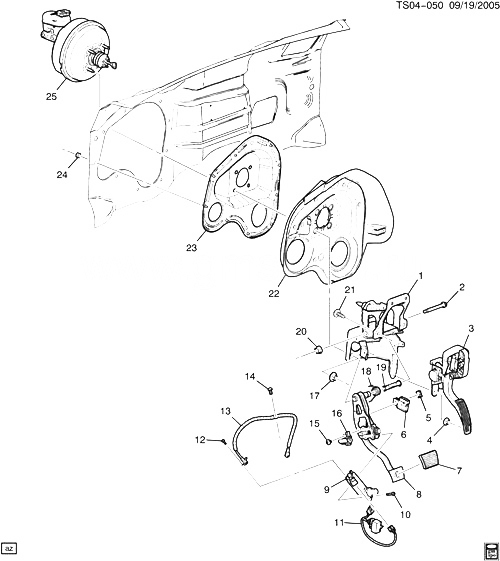

Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
001 |
19148880 |
BRACKET, BRK ACCEL PED (4.634) |
ST1 (JF4, JF8) |
2005-2009 |
01 |
001 |
19148880 |
BRACKET, BRK ACCEL PED |
ST1 (JF4, JF8) |
2005-2009 |
01 |
002 |
15000145 |
БОЛТ, BRK PED PIV (12X1.75X120, 25)
| ST1 |
2004-2009 |
01 |
003 |
|
PEDAL, ACCEL (W/BRKT) (СМ. ГРУППУ 03.000 УПРАВЛЕНИЕ АКСЕЛЕРАТОРОМ FOR DETAILED ILLUSTRATED VIEW) (INCLS 4) |
|
2004-2009 |
|
004 |
|
ГАЙКА, ACCEL PED BRKT (PART OF 3) |
|
2006-2009 |
|
005 |
15048329 |
RETAINER, BRK PED PUSH ROD (29.13 MM) (WITHOUT BOLT) |
ST1 (DAY, OKL) |
2004-2009 |
01 |
006 |
25771554 |
SWITCH, S/LP (ACDelco #D1588G)
| ST1 |
2005-2009 |
01 |
007 |
88964292 |
PAD, BRK PED |
ST1 (JF4) |
2004-2009 |
01 |
008 |
19121977 |
PEDAL, BRK (INCLS 9, 10, 12, 13, 19) |
ST1 (JF4, JF8) |
2006-2009 |
01 |
009 |
|
MOTOR, BRK ACCEL PED ADJR ACTR (PART OF 8) |
|
2006-2009 |
|
010 |
|
БОЛТ, BRK ACCEL PED ADJ ACTR MTR) (PART OF 8) |
|
2006-2009 |
|
011 |
89038607 |
HARNESS, BRK PED POSN SEN (W/MEMORY) (2.525) |
ST1 (JF4, JF8) |
2007-2009 |
01 |
012 |
|
БОЛТ, ACCEL PED ADJ ACTR CBL (PART OF 8) |
|
2006-2009 |
|
013 |
|
CABLE, BRK PED ADJR ACTR (PART OF 8) |
|
2006-2009 |
|
014 |
88966995 |
RETAINER, BRK PED (W/O SCREW) |
ST1 |
2004-2009 |
01 |
014 |
89038603 |
RETAINER, BRK PED (W/SCREW) |
ST1 |
2004-2009 |
01 |
015 |
88982978 |
БОЛТ, BRK PED POSN SEN |
ST1 |
2004-2009 |
02 |
016 |
88982977 |
ДАТЧИК, BRK PED POSN |
ST1 |
2004-2009 |
01 |
017 |
11517996 |
ГАЙКА, P/B BOOS (M10X1.5, 11.2 THK) (8.917)
| ST1 (06) (JF8) |
2007-2009 |
04 |
018 |
19210583 |
ПРУЖИНА, BRK PED RTN |
ST1 (JF4, JF8) |
2004-2009 |
01 |
019 |
|
BUSHING, BRK PED PIV (PART OF 8) |
|
2006-2009 |
|
020 |
11514598 |
ГАЙКА, BRK PED PIV (HF 12X1.75) (8.915)
| ST1 |
2004-2009 |
01 |
021 |
11589166 |
БОЛТ, BRK PED (8.900) |
ST1 |
2004-2009 |
04 |
022 |
15870865 |
INSULATOR, BRK PED BRKT PLT |
ST1 (06) |
2006-2009 |
01 |
023 |
15247616 |
PLATE, BRK PED BRKT |
ST1 (JF8, M30, M70) |
2006-2009 |
01 |
024 |
11516781 |
ГАЙКА, HEX W/TT CON WA M10X1.5X10 24-OD 9 PC (I/P CARR SUPT) (8.917)
| |
2004-2009 |
09 |
025 |
|
BOOSTER, P/B (СМ. ГРУППУ 04.000 ТОРМОЗНОЙ УСИЛИТЕЛЬ FOR DETAILED ILLUSTRATED VIEW) |
|
2004-2009 |
|
