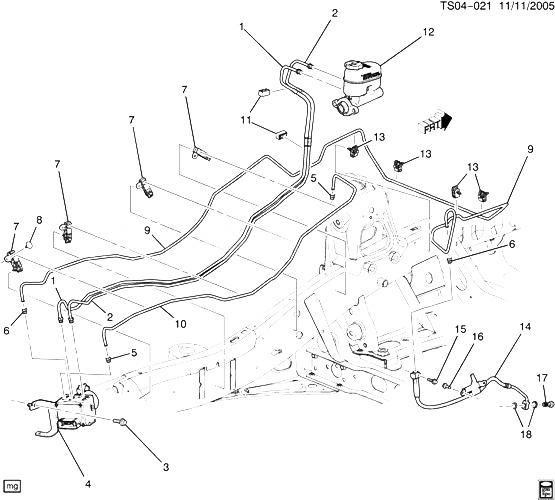

(TS04-021) - 2006-2009 ST155 ТОРМОЗНАЯ МАГИСТРАЛЬ/ПЕРЕДНЯЯ CHEVROLET TRAILBLAZER (4WD) 2009

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 25829891 PIPE, BRK PRESS MOD VLV M/CYL RSVR (FMC PIPE) ST1 (JF8) 2009-2009 01
002 25829890 PIPE, BRK PRESS MOD VLV M/CYL RSVR (RMC PIPE) ST1 (JF8) 2009-2009 01
003 11570082 БОЛТ, HFH, M8X1.25X22, 19 THD, 18 OD, 10.9, GMW3359 (ELEK BRK CONT MDL) (ACDelco #11570082) 2006-2009 03
004 MODULE, ELEK BRK CONT (СМ. ГРУППУ 04.000 МОДУЛЬ УПРАВЛЕНИЯ ТОРМОЗАМИ FOR DETAILED ILLUSTRATED VIEW) 2006-2009
005 15103241 ГАЙКА, FRT BRK FRT PIPE (1/4 TUBE STL) ST1 (06) (JF8) 2006-2009 02
006 15103241 ГАЙКА, FRT BRK PIPE (1/4 TUBE STL) ST1 (JF8) 2006-2009 02
007 15242372 CLIP, BRK PRESS MOD VLS M/CYL RSVR FRT PIPE (4 LINE CLIP) ST1 (06) (JF8) 2006-2009 04
008 15242371 CLIP, BRK PRESS MOD VLS M/CYL RSVR FRT PIPE (PUSH IN) ST1 (06) (JF8) 2006-2009 01
009 88936298 PIPE, BRK (STEEL) (1/4 X 16 FT ROLL) (FRT BRK) 2006-2009 AR
010 88936298 PIPE, BRK (STEEL) (1/4 X 16 FT ROLL) (FRT BRK) 2006-2009 AR
011 15194368 SPACER, BRK PRESS MOD VLV HOSE M/CYL RSVR PIPE (9.2X33.1) (HOLDS (2)8.25OD LINES) ST1 (06) (JF8) 2006-2009 02
012 CYLINDER, BRK MAS (СМ. ГРУППУ 04.000 ГЛАВНЫЙ ТОРМОЗНОЙ ЦИЛИНДР FOR DETAILED ILLUSTRATED VIEW) 2006-2009
013 15092110 CLIP, FRT BRK FRT PIPE (W/RET ARM) (HOLDS ONE 6.75 NYLON COATED TUBE) ST1 (JF8) 2009-2009 04
014 15877294 HOSE, FRT BRK (INCLS 17, 18) ST1 2006-2009 01
014 15877295 HOSE, FRT BRK (INCLS 17, 18) ST1 2006-2009 01
015 11588715 БОЛТ, HFH, M6X1X35, 18 THD, 14.2 OD, 8.8, GMW3359, 5MM M POINT (FRT BRK HOSE BRKT) 2006-2009 02
016 11516521 БОЛТ, HFH M6X1X20, 9.8, 7114M, DOG PT, 14.2 OD (FRT BRK HOSE BRKT) 2006-2009 02
017 RETAINER, FRT BRK HOSE (PART OF 14) 2006-2009
018 ПРОКЛАДКА, FRT BRK HOSE FTG (PART OF 14) 2006-2009
