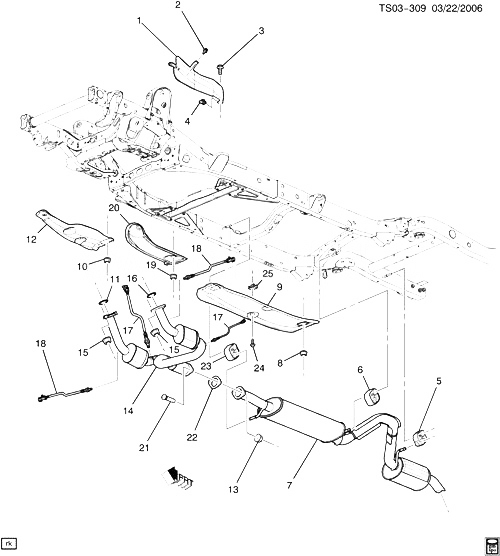

(TS03-309) - 2006-2009 ST155(06) ВЫХЛОПНАЯ СИСТЕМА (LH6/5.3M) CHEVROLET TRAILBLAZER (4WD) 2009

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15893982 SHIELD, EXH HT ST1 (06) (LH6, LS2) 2008-2009 01
002 25642453 RETAINER, EXH H/SHLD (6MM DIA) (3.671) ST1 2006-2009 01
003 11519862 БОЛТ, HEX W/FL WA, M8X1.25X25, 15.85 THD, 17 OD, 9.8, 6280M, MACH, MAT-PT (EXH H/SHLD) 2006-2009 01
004 11516149 ГАЙКА, U, 8X1.25, MULTI THD, .08-4.0 THK PNL, PZ (EXH H/SHLD) 2006-2009 01
005 15120136 INSULATOR, EXH MUFF HNGR (W/2 HANGER HOLES) ST1 2008-2009 01
006 15120137 INSULATOR, EXH MUFF HNGR (CENTER HANGER) ST155 2008-2009 01
007 25839181 MUFFLER, EXH (W/RESO, EXH TAIL PIPE) ST155 (LH6, G67, X88, Z88) 2008-2009 01
007 25839181 MUFFLER, EXH (W/RESO, EXH TAIL PIPE) (3.701) ST155 (LH6, G67, X88, Z88) 2008-2009 01
007 25839181 MUFFLER, EXH (W/RESO, EXH TAIL PIPE) (3.701) ST155 (LH6, G67, X88, Z88) 2008-2009 01
007 25839182 MUFFLER, EXH (W/RESO, EXH TAIL PIPE) ST155 (LH6, X88, Z88) (EXC G67) 2009-2009 01
007 25839182 MUFFLER, EXH (W/RESO, EXH TAIL PIPE) (3.701) ST155 (LH6, X88, Z88) (EXC G67) 2009-2009 01
008 11609411 ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (EXH MUFF H/SHLD) 2006-2009 02
009 15821715 SHIELD, EXH MUFF HT ST155 2006-2009 01
010 11609411 ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (CTLTC CONV H/SHLD) 2006-2009 05
011 15035747 SEAL, EXH MANIF PIPE ST155 (LH6) 2006-2009 01
012 15886422 SHIELD, CTLTC CONV UPR HT ST1 (06) 2008-2009 01
013 15709703 ГАЙКА, HEX 10X1.5THD, 21.8 OD SS (EXH MUFF) 2006-2009 02
014 25887914 CONVERTER, 3WAY CTLTC (W/EXH MANIF PIPE) (INCLS 21) (3.685) ST1 (LH6, LS2) 2009-2009 01
014 25887914 CONVERTER, 3WAY CTLTC (W/EXH MANIF PIPE) (INCLS 21) ST1 (LH6, LS2) 2009-2009 01
015 15032594 ГАЙКА, EXH MANIF PIPE (HEX M10X1.5) (ATTACH EXH MANIFOLD PIPE) ST1 2006-2009 AR
016 15035747 SEAL, EXH MANIF PIPE ST155 (LH6) 2006-2009 01
016 15077362 SEAL, EXH MANIF PIPE ST1 (LH6) 2006-2009 02
017 12609477 ДАТЧИК, HTD OXY (POSN 3) (POST CONVERTER) (ACDelco #213-4240) ST1 (LH6, LS2) 2008-2009 01
017 12612506 ДАТЧИК, HTD OXY (POSN 3) (POST CONVERTER) (ACDelco #213-4241) ST1 (LH6, LS2) 2008-2009 01
018 12590749 ДАТЧИК, HTD OXY (POSN 2) (PRE CONVERTER) (ACDelco #213-3536) ST1 (LH6) 2007-2009 02
019 11609411 ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (CTLTC CONV H/SHLD) 2006-2009 02
020 15932097 SHIELD, CTLTC CONV UPR HT ST1 (LH6, LS2) 2008-2009 01
021 15756879 STUD, EXH PIPE (PART OF 14) (M10X1.5X40MM) (BUTTON HEAD) (3.690) ST1 2008-2009 02
022 15036012 ПРОКЛАДКА, EXH MANIF PIPE ST155 2006-2009 01
023 15292363 INSULATOR, EXH MUFF HNGR ST155 2006-2009 01
024 11609989 БОЛТ, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (EXH MUFF H/SHLD) 2006-2009 01
025 11518121 ГАЙКА, U, M6X1, MULTI THD, .5-4.0 THK PNL (EXH MUFF H/SHLD) 2006-2009 01
