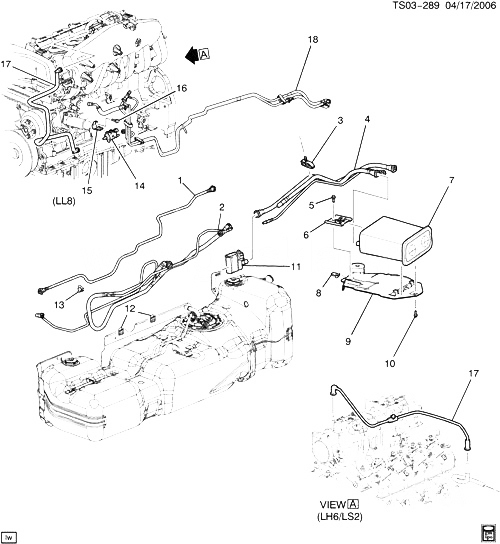

(TS03-289) - 2006-2009 ST155 УГОЛЬНЫЙ ФИЛЬТР LINES CANISTER (LH6/5.3M,LL8/4.2S,LS2/6.0H) CHEVROLET TRAILBLAZER (4WD) 2009

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15200095 HOSE, EVAP EMIS CNSTR PURGE (INCLS CLIPS CONNECTORS) ST155 2005-2009 01
002 15909856 HOSE, EVAP EMIS ST155 2005-2009 01
003 CLIP, EVAP EMIS HOSE (PART OF 4) 2006-2009
004 15909860 TUBE, EVAP EMIS CNSTR (INCLS 3) ST155 2006-2009 01
005 11570082 БОЛТ, HFH, M8X1.25X22, 19 THD, 18 OD, 10.9, GMW3359 (EVAP EMIS CNSTR SUPT) (ACDelco #11570082) 2005-2009 01
006 15100034 BRACKET, EVAP EMIS CNSTR (SMALL BRKT) ST155 2005-2009 01
007 15107219 CANISTER, EVAP EMIS (ACDelco #215-469) ST155 2005-2009 01
008 11561740 ГАЙКА, U-SHAPED, M8X1.25, 14.2 WIDE, 38.5 OVERALL LENGTH, 28 C-C, SAE 1050 STL, GM7111M (CNG TK CVR BRKT) 2005-2009 01
009 15200693 BRACKET, EVAP EMIS CNSTR ST155 2005-2009 01
010 11570082 БОЛТ, HFH, M8X1.25X22, 19 THD, 18 OD, 10.9, GMW3359 (EVAP EMIS CNSTR BRKT) (ACDelco #11570082) 2005-2009 03
011 25950499 VALVE, EVAP EMIS CNSTR VENT SOL (ACDelco #25950499) ST1 2005-2009 01
012 15015496 CLIP, EVAP EMIS FRT HOSE (6.35 DIA HOLE IN (1THK PNL, HOLDS TWO 7.9DIA NYL TUBES) ST1 2005-2009 02
013 15045398 CLIP, EVAP EMIS FRT HOSE (6.35 DIA HOLE IN 1 THK PNL, HOLD 14.5 DIA LINE) ST155 2005-2009 01
014 12606684 VALVE, EVAP EMIS CNSTR PURGE SOL (ACDelco #214-2142) ST1 (LH6, LS2) 2009-2009 01
014 12606684 VALVE, EVAP EMIS CNSTR PURGE SOL (ACDelco #214-2142) ST1 (LL8) 2009-2009 01
015 24577194 BRACKET, EVAP EMIS CNSTR PURGE SOL VLV ST1 (LL8) 2005-2009 01
016 11517518 БОЛТ, HFH, M6X1X20, 17.9 THD, 14.2 O.D., 9.8, TIN ZN (EVAP EMIS CNSTR PURGE SOL VLV BRKT) (ACDelco #11517518) 2005-2009 01
017 TUBE, EVAP EMIS CNSTR PURGE 2005-2009
017 12597877 TUBE, EVAP EMIS CNSTR PURGE ST1 (LL8) 2005-2009 01
017 12617169 TUBE, EVAP EMIS CNSTR PURGE ST1 (LH6, LS2) 2007-2009 01
018 PIPE, FUEL FEED EVAP EMIS RTN FRT (СМ. ГРУППУ 03.000 ТОПЛИВНАЯ СИСТЕМА FOR DETAILED ILLUSTRATED VIEW) 2005-2009
