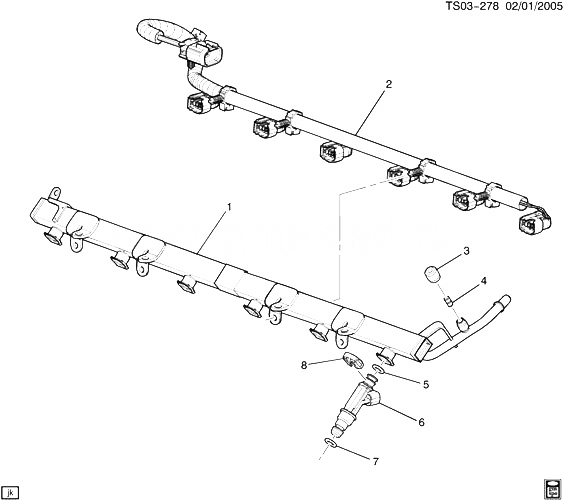

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
12617904 |
RAIL KIT, M/PORT F/INJN FUEL (INCLS VALVE, CAP) (INCLS 3, 4) |
ST1 (LL8) |
2005-2009 |
01 |
| 002 |
12602093 |
HARNESS, F/INJR WRG |
ST1 (LL8) |
2008-2009 |
01 |
| 003 |
25532662 |
CAP, FUEL PRESS SERV VLV (PART OF 1) (CAP FOR PRESSURE TEST SCHRADER VALVE) (3.163) (ACDelco #214-1044)
| ST1 (LL8) |
2009-2009 |
01 |
|
| 004 |
12570619 |
VALVE KIT, FUEL PRESS SERV (PART OF 1) (ACDelco #12570619)
| ST1 (LL8) |
2005-2009 |
01 |
|
| 005 |
|
SEAL, F/INJR (O RING) (PART OF 6) (*KIT1) |
|
2005-2009 |
|
| 006 |
12599504 |
INJECTOR, M/PORT FUEL (INCLS 5, 7, 8) (ACDelco #217-3084)
| ST1 (LL8) |
2008-2009 |
06 |
|
| 007 |
|
SEAL, F/INJR (O RING) (PART OF 6) (*KIT1) |
|
2005-2009 |
|
| 008 |
12585749 |
RETAINER, F/INJR (PART OF 6) |
ST1 (LL8) |
2005-2009 |
06 |
| K01 |
19169305 |
SEAL KIT, M/PORT F/INJR (INCLS 5, 7) (ACDelco #217-3092)
| ST1 (LL8) |
2008-2009 |
01 |
|
