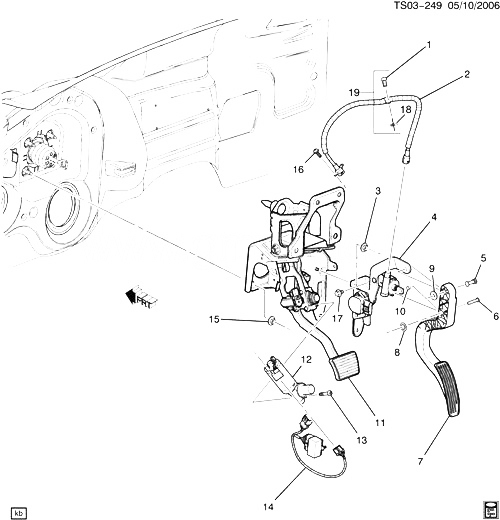

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
89038604 |
БОЛТ, BRK PED (PART OF 19) (#8-32 X 3/8 LONG) (SQUARE DRIVE) |
ST1 |
2004-2009 |
01 |
| 002 |
|
CABLE, BRK PED ADJR ACTR (PART OF 11) |
|
2006-2009 |
|
| 003 |
|
ГАЙКА, ACCEL PED BRKT (PART OF 4) |
|
2006-2009 |
|
| 004 |
19121979 |
PEDAL, ACCEL (W/BRKT) (INCLS 3, 5-10, 16) |
ST1 (JF4, JF8) |
2007-2009 |
01 |
| 005 |
|
RETAINER, ACCEL PED (PART OF 4) |
|
2006-2009 |
|
| 006 |
|
PIN, ACCEL PED PIV (PART OF 4) |
|
2006-2009 |
|
| 007 |
|
PEDAL, ACCEL (PART OF 4) |
|
2006-2009 |
|
| 008 |
|
RETAINER, ACCEL PED PIV PIN (PART OF 4) |
|
2006-2009 |
|
| 009 |
|
WASHER, ACCEL PED (PART OF 4) |
|
2006-2009 |
|
| 010 |
|
BUSHING, ACCEL PED PIV PIN (PART OF 4) |
|
2006-2009 |
|
| 011 |
|
PEDAL, BRK ACCEL (W/BRKT) (СМ. ГРУППУ 04.000 ПЕДАЛЬ ТОРМОЗА - КРЕПЛЕНИЕ FOR DETAILED ILLUSTRATED VIEW) (INCLS 2, 12, 13) |
|
2004-2009 |
|
| 012 |
|
MOTOR, BRK ACCEL PED ADJR ACTR (PART OF 11) |
|
2006-2009 |
|
| 013 |
|
БОЛТ, BRK ACCEL PED ADJ ACTR MTR (PART OF 11) |
|
2006-2009 |
|
| 014 |
89038607 |
HARNESS, BRK PED POSN SEN (W/MEMORY) (2.525) |
ST1 (JF4, JF8) |
2007-2009 |
01 |
| 015 |
11517996 |
ГАЙКА, HFH, M10X1.5, 11.2THK, 21.5 O.D., 7111M (P/B BOOS)
|
2004-2009 |
04 |
|
| 016 |
|
БОЛТ, ACCEL PED ADJR ACTR CBL (PART OF 4) |
|
2006-2009 |
|
| 017 |
89038606 |
БОЛТ, ACCEL PED BRKT |
ST1 (JF4, JF8) |
2007-2009 |
01 |
| 018 |
88966995 |
RETAINER, BRK PED (PART OF 19) (W/O SCREW) |
ST1 |
2004-2009 |
01 |
| 019 |
89038603 |
RETAINER, BRK PED (INCLS 1, 18) (W/SCREW) |
ST1 |
2004-2009 |
01 |
