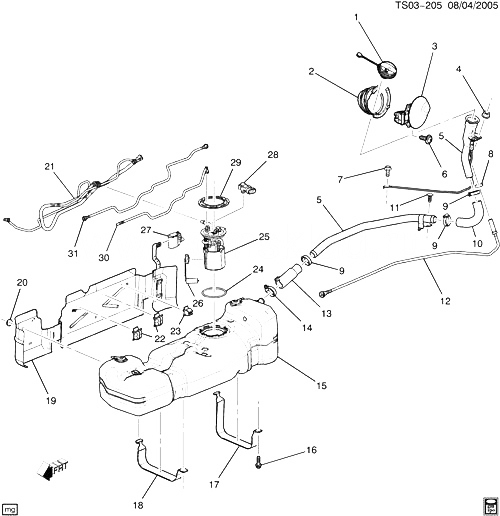

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
10372866 |
CAP, F/TNK FIL (ACDelco #GT280) |
ST1 |
2007-2009 |
01 |
| 002 |
15244046 |
HOUSING, F/TNK FIL PIPE
| ST1 |
2007-2009 |
01 |
|
| 003 |
15776458 |
DOOR, F/TNK FIL
| ST1 (06) (X88) |
2007-2009 |
01 |
|
| 004 |
03530297 |
ГАЙКА, HFH, M6X1, 5.85THK, 14.2 O.D., 10, ZOR (F/TNK FIL PIPE)
|
2007-2009 |
02 |
|
| 005 |
25965858 |
PIPE, F/TNK FIL (INCLS 8-14)
| ST1 (06) |
2007-2009 |
01 |
|
| 006 |
15714276 |
SCREW, HWH, W/FL WA, SELF TAP, M4.2X1.41X18, 12.5 O.D., 6010M, PS (F/TNK FIL DR) (8.977) |
|
2007-2009 |
04 |
| 007 |
11516872 |
BOLT-HEX M6X1X20, 11.5 THD, 17 OD, 6202M, 6280M (F/TNK FIL PIPE GND) |
|
2007-2009 |
01 |
| 008 |
10356551 |
CLAMP, EVAP EMIS CNSTR VENT HOSE (PART OF 5) |
ST1 (06) |
2007-2009 |
01 |
| 009 |
09177063 |
CLAMP, F/TNK FIL HOSE (PART OF 5, 10) (25-40MM CLAMP RANGE) |
ST1 (06) |
2009-2009 |
03 |
| 010 |
10356542 |
HOSE, F/TNK FIL (PART OF 5) (INCLS 9) (UPR) |
ST1 (06) |
2007-2009 |
01 |
| 011 |
01631564 |
RETAINER, F/TNK FIL PIPE (PART OF 5) (037-.39 HOLE) (1.27 LONG) (PUSH IN FINNED RETAINER) (7.831) |
ST1 (06) |
2007-2009 |
01 |
| 012 |
15208863 |
HOSE, EVAP EMIS CNSTR VENT (PART OF 5) (3.130) (ACDelco #215-562) |
ST1 (06) |
2007-2009 |
01 |
| 013 |
10356547 |
HOSE, F/TNK FIL (PART OF 5) (LWR) |
ST1 (06) |
2008-2009 |
01 |
| 014 |
25711370 |
CLAMP, F/TNK FIL PIPE (PART OF 5) (30-45MM CLAMP RANGE) |
ST1 (06) |
2008-2009 |
01 |
| 015 |
25973153 |
БАК, ТОПЛИВНЫЙ
| ST155 |
2007-2009 |
01 |
|
| 016 |
22522202 |
БОЛТ, W/ADHES, M10X1.5X46.5, 20 O.D., 10.9, PZOR (F/TNK STRP) |
|
2007-2009 |
02 |
| 017 |
15180193 |
STRAP, F/TNK (RR) |
ST1 |
2007-2009 |
01 |
| 018 |
15180194 |
STRAP, F/TNK (FRT) |
ST155 |
2007-2009 |
01 |
| 019 |
15783594 |
SHIELD, F/TNK |
ST155 |
2007-2009 |
01 |
| 020 |
10009923 |
ГАЙКА, BOLT RETAINING SPRING, M8X1.25, 25 O.D., ZOR (F/TNK SHLD) |
|
2007-2009 |
05 |
| 021 |
15909856 |
HOSE, EVAP EMIS |
ST155 |
2007-2009 |
01 |
| 022 |
15015496 |
CLIP, EVAP EMIS FRT HOSE (6.35 DIA HOLE IN (1THK PNL, HOLDS TWO 7.9DIA NYL TUBES) |
ST155 |
2008-2009 |
02 |
| 023 |
15045398 |
CLIP, EVAP EMIS FRT HOSE (6.35 DIA HOLE IN 1 THK PNL, HOLD 14.5 DIA LINE) |
ST155 |
2008-2009 |
02 |
| 024 |
22672293 |
SEAL, FUEL SDR (O RING) (PART OF 25) (H-SEAL) (147.5MM O.D. X 5MM THK X 5MM TALL) (*KIT1) (ACDelco #G45) |
ST155 |
2008-2009 |
01 |
| 024 |
22682111 |
SEAL, FUEL SDR (O RING) (PART OF 25) (135.5 MM ID X 147.5MM OD X 6MMTALL) (*KIT1) (ACDelco #G41)
| ST155 |
2008-2009 |
01 |
|
| 025 |
19153374 |
MODULE KIT, F/TNK F/PMP (W/O FUEL LVL SEN) (INCLS 24) (INCLS LIFETIME FILTER) (ACDelco #M10087)
| ST155 |
2009-2009 |
01 |
|
| 025 |
19153374 |
MODULE KIT, F/TNK F/PMP (W/O FUEL LVL SEN) (INCLS 24) (INCLS LIFETIME FILTER) (3.107) (ACDelco #M10087)
| ST155 |
2009-2009 |
01 |
|
| 026 |
|
ДАТЧИК, FUEL LVL (*KIT1) |
|
2007-2009 |
|
| 027 |
25950499 |
VALVE, EVAP EMIS CNSTR VENT SOL (ACDelco #25950499)
| ST1 |
2007-2009 |
01 |
|
| 028 |
13502903 |
ДАТЧИК, F/TNK PRESS (ACDelco #13502903)
| ST1 |
2008-2009 |
01 |
|
| 029 |
10325852 |
RING, FUEL SDR (130 MM OPENING CAM LOCK RING) (3.115) (ACDelco #TR26)
| ST155 |
2008-2009 |
01 |
|
| 030 |
15200097 |
PIPE, FUEL FEED |
ST155 |
2007-2009 |
01 |
| 031 |
15200095 |
HOSE, EVAP EMIS CNSTR PURGE (INCLS CLIPS CONNECTORS)
| ST155 |
2007-2009 |
01 |
|
| K01 |
19178477 |
SENSOR KIT, FUEL LVL (INCLS 24, 26) (ACDelco #SK1158)
| ST155 |
2007-2009 |
01 |
|
