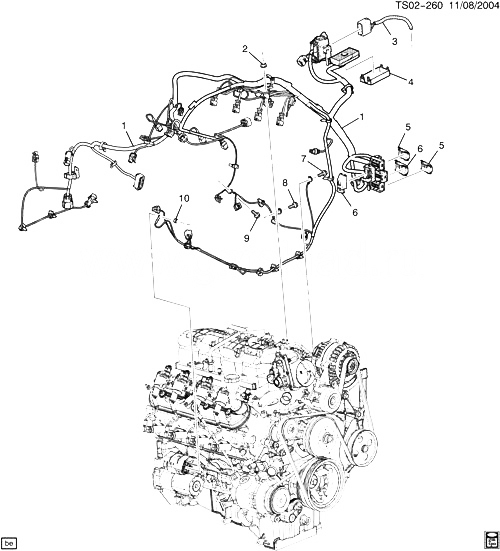

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25994415 |
HARNESS, ENG WRG (INCLS 4-6) |
ST155 (06) (LH6, LS2) |
2009-2009 |
01 |
| 002 |
11609411 |
ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (ENG WRG HARN RET)
|
2004-2009 |
01 |
|
| 003 |
|
HARNESS, I/P WRG (СМ. ГРУППУ 02.000 ЖГУТ ПРОВОДОВ/ПАНЕЛЬ ПРИБОРОВ FOR DETAILED ILLUSTRATED VIEW) |
|
2004-2009 |
|
| 005 |
|
COVER, ENG WRG HARN ECM CONN (PART OF 1) |
|
2006-2009 |
|
| 006 |
|
COVER, ENG WRG HARN ECM CONN (PART OF 1) |
|
2006-2009 |
|
| 007 |
11588564 |
БОЛТ, HEX W/FL WA, M8X1.25X25, 15.85 THD, 17 OD, 9.8, GMW3200M, MACH, MAT-PT (ENG WRG HARN GND) |
|
2004-2009 |
01 |
| 008 |
11519861 |
БОЛТ, HEX W/FL WA, M10X1.5X30, 19 THD, 20 OD, 9.8, 6280M, MACH, MAT-PT (ENG WRG HARN PCM GND)
|
2004-2009 |
01 |
|
| 009 |
11519861 |
БОЛТ, HEX W/FL WA, M10X1.5X30, 19 THD, 20 OD, 9.8, 6280M, MACH, MAT-PT (ENG WRG HARN GND)
|
2004-2009 |
01 |
|
| 010 |
11609467 |
NUT HEX, M5X0.8, 4.55 THK, 5 STL, GMW3200 (ENG WRG HARN START MTR LEAD) |
|
2004-2009 |
01 |
