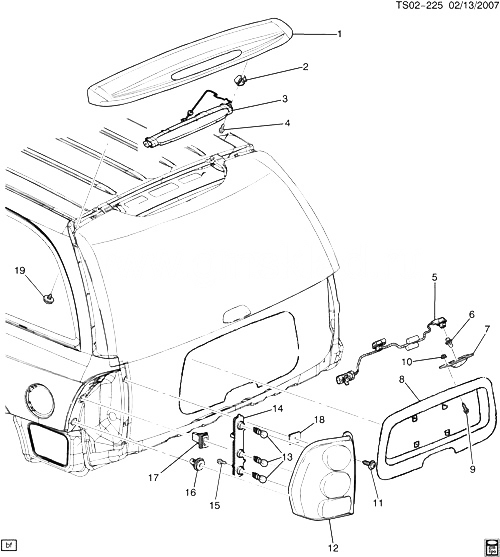

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
19150496 |
MOLDING, L/GATE WDO RVL (PAINT TO MATCH)
| ST155 (X88) |
2002-2009 |
01 |
|
| 002 |
25536302 |
ГАЙКА, HIGH MT S/LP (4.2 X 1.41) (TAPPING NUT) (3.430)
| ST1 |
2002-2009 |
02 |
|
| 003 |
15201921 |
LAMP, HIGH MT STOP (LED LIGHTING SYSTEM)
| ST1 |
2005-2009 |
01 |
|
| 004 |
11516634 |
SCREW, RND WA HD, M4.2X1.41X10, 8.63 OD, 6010M, 6138M, C/R, TAP, BR-PT (HIGH MT S/LP)
|
2002-2009 |
02 |
|
| 005 |
15271206 |
HARNESS, RR LIC PLT LP WRG
| ST1 |
2005-2009 |
01 |
|
| 006 |
01999382 |
BULB, (RR LIC PLT LP) (ACDelco #W5WLL) (LONGER LIFE)
|
2002-2009 |
02 |
|
| 007 |
15000046 |
LAMP, RR LIC PLT
| ST1 |
2005-2009 |
02 |
|
| 008 |
|
POCKET, RR LIC PLT (СМ. ГРУППУ 17.000 АРМАТУРА ДВЕРИ БАГАЖНИКА ЧАСТЬ 3 FOR DETAILED ILLUSTRATED VIEW) (BLACK) (PAINT TO MATCH) |
ST155 (W49) |
2002-2009 |
01 |
| 008 |
|
POCKET, RR LIC PLT (СМ. ГРУППУ 17.000 АРМАТУРА ДВЕРИ БАГАЖНИКА ЧАСТЬ 3 FOR DETAILED ILLUSTRATED VIEW) (PAINT TO MATCH) |
ST1 (06) (EXC BNB) |
2002-2009 |
01 |
| 008 |
|
POCKET, RR LIC PLT (СМ. ГРУППУ 17.000 АРМАТУРА ДВЕРИ БАГАЖНИКА ЧАСТЬ 3 FOR DETAILED ILLUSTRATED VIEW) (PAINT TO MATCH) |
ST1 (06) (TGK, X88, Z88, Z89) (EXC BNB) |
2002-2009 |
01 |
| 008 |
|
POCKET, RR LIC PLT (СМ. ГРУППУ 17.000 АРМАТУРА ДВЕРИ БАГАЖНИКА ЧАСТЬ 3 FOR DETAILED ILLUSTRATED VIEW) (PAINT TO MATCH) |
ST1 (06) (X88, Z70, Z88, Z89) (EXC BNB) |
2002-2009 |
01 |
| 008 |
|
POCKET, RR LIC PLT (СМ. ГРУППУ 17.000 АРМАТУРА ДВЕРИ БАГАЖНИКА ЧАСТЬ 3 FOR DETAILED ILLUSTRATED VIEW) (PAINT TO MATCH) |
ST1 (06) (X88, Z88) |
2002-2009 |
01 |
| 008 |
|
POCKET, RR LIC PLT (СМ. ГРУППУ 17.000 АРМАТУРА ДВЕРИ БАГАЖНИКА ЧАСТЬ 3 FOR DETAILED ILLUSTRATED VIEW) (PAINT TO MATCH) |
ST1 (06) (X88, Z88, Z89) |
2002-2009 |
01 |
| 009 |
09423101 |
SCREW, TAP, M6.3X1.81X16, 14.55 O.D., 7114M, PZ0R (RR LIC PLT)
|
2002-2009 |
02 |
|
| 010 |
03907444 |
ГАЙКА, PUSH IN, SQUARE, UN THD, M9.5 SQ HOLE, NYLON (RR LIC PLT)
|
2002-2009 |
02 |
|
| 011 |
19121864 |
БОЛТ, T/LP |
ST1 |
2004-2009 |
08 |
| 012 |
15000426 |
LAMP, TAIL (INCLS 13, 14) |
T1 (T79, T85, T89, X88) (EXPORT) |
2006-2009 |
01 |
| 012 |
15131578 |
LAMP, TAIL (INCLS 13, 14) (INCLS T/LP CIRC BOARD)
| ST1 (06) (X88) (EXC T79, T89) |
2002-2009 |
01 |
|
| 012 |
15131579 |
LAMP, TAIL (INCLS 13, 14) (INCLS T/LP CIRC BOARD)
| ST1 (06) (X88) (EXC T79, T89) |
2002-2009 |
01 |
|
| 012 |
15131582 |
LAMP, TAIL (W/T/SIG, S/LP, B/U LPS RR FOG LPS) (INCLS 13, 14) (INCLS T/LP CIRC BOARD)
| T1 (T79, T84, T89, X88) (EXPORT) |
2002-2009 |
01 |
|
| 012 |
15131583 |
LAMP, TAIL (INCLS 13, 14) (INCLS T/LP CIRC BOARD)
| T1 (T84, T89, X88) (EXPORT) |
2006-2009 |
01 |
|
| 012 |
15131584 |
LAMP, TAIL (INCLS 13, 14) (INCLS T/LP CIRC BOARD) |
T1 (T85, T89, X88) (EXPORT) |
2002-2009 |
01 |
| 013 |
12450108 |
BULB, TRADE #3157KX (PART OF 12) (2.679) (ACDelco #3157KX) (LONGER LIFE KRYPTON)
|
2002-2009 |
03 |
|
| 014 |
16532713 |
BOARD, T/LP CIRC (PART OF 12) (FOR LH RH DOMESTIC RH EXPORT BOARD ASM, T/LP CIRC)
| T1 (T84, T89, X88) (EXPORT) |
2004-2009 |
01 |
|
| 014 |
16532713 |
BOARD, T/LP CIRC (PART OF 12) (FOR LH RH DOMESTIC RH EXPORT BOARD ASM, T/LP CIRC)
| ST1 (06) (X88) (EXC T79, T89) |
2004-2009 |
02 |
|
| 014 |
16532714 |
BOARD, T/LP CIRC (PART OF 12)
| T1 (T79, T84, T89, X88) (EXPORT) |
2002-2009 |
01 |
|
| 014 |
16532714 |
BOARD, T/LP CIRC (PART OF 12)
| T1 (T85, T89, X88) (EXPORT) |
2002-2009 |
01 |
|
| 015 |
09439259 |
SCREW, HWH W/EXT TOOTH LK WA, 8-18X1/2 ZN, 6010M, TAPPING (T/LP SOC) |
|
2002-2009 |
08 |
| 016 |
11609535 |
RETAINER, T/LP (BLACK) (6-WAY, 15 DIA HOLE IN 0.7 THK PNL, NYLON 6/6)
| ST1 (06) |
2002-2009 |
02 |
|
| 017 |
11610198 |
RETAINER, T/LP (8.921)
| ST1 (06) |
2002-2009 |
02 |
|
| 018 |
11519497 |
ГАЙКА, PUSH IN, SPECIAL, 4.2X1.4 SINGLE THREAD, SAE 1050 STL, GM7111M (T/LP)
|
2002-2009 |
04 |
|
| 019 |
11562210 |
БОЛТ, L/GATE WDO RVL MLDG (M6X1X13) |
ST1 (06) |
2006-2009 |
04 |
