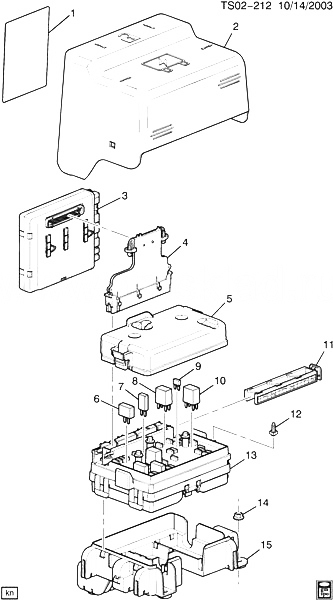

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
|
LABEL, ACSRY RLY FUSE BLK IDENT (PART OF 2) |
|
2005-2009 |
|
| 002 |
25925587 |
COVER, BODY I/P WRG HARN J/BLK (INCLS 1) (EBONY) (W/FUSE) |
ST155 (06) (X88, Z88, 48I) |
2009-2009 |
01 |
| 002 |
25925590 |
COVER, BODY I/P WRG HARN J/BLK (INCLS 1) (GRAY) (W/FUSE) |
ST155 (06) (X88, Z88, 28I) |
2009-2009 |
01 |
| 003 |
25802312 |
MODULE, BODY CONT (ACDelco #25802312) |
ST1 (06) (EXC BAE) |
2006-2009 |
01 |
| 003 |
25802312 |
MODULE, BODY CONT (2.560) (ACDelco #25802312) |
ST1 (06) (EXC BAE) |
2006-2009 |
01 |
| 004 |
15077187 |
HARNESS, BODY WRG HARN EXTN
| ST1 |
2005-2009 |
01 |
|
| 005 |
|
COVER, BODY I/P WRG HARN J/BLK (PART OF 13) |
|
2002-2009 |
|
| 006 |
12077863 |
BREAKER, CIRCUIT, 30 AMP, GREEN (PART OF 13) |
|
2002-2009 |
01 |
| 006 |
12088575 |
BREAKER, CIRCUIT, 25AMP, WHITE (25 AMP) (PART OF 13)
|
2002-2009 |
02 |
|
| 007 |
12182113 |
BREAKER ASM, CIRC (MINI 15AMP NON-CYCLING) (PART OF 13) (2.483)
|
2002-2009 |
01 |
|
| 008 |
19115082 |
RELAY, DR LK (5-WAY, HI-PWR, W/RESISTOR, UNSHROUDED, BLACK, MICRO, CODE 7866) (PART OF 13) (STDT 280 MICRO) (1.055) (ACDelco #15-50448)
| ST1 |
2005-2009 |
02 |
|
| 009 |
12092075 |
FUSE, MINI (30A) (GREEN) (PART OF 13) (ACDelco #12092075)
|
2002-2009 |
03 |
|
| 009 |
15328724 |
FUSE (3 AMP MINI) (VIOLET) (PART OF 13) |
|
2002-2009 |
03 |
| 009 |
88909753 |
FUSE, MINI, 10 AMP, RED (PART OF 13) |
|
2002-2009 |
23 |
| 009 |
88909754 |
FUSE, 15A, MINI, BLUE (PART OF 13) (ACDelco #ATM15-25)
|
2002-2009 |
03 |
|
| 009 |
88909755 |
FUSE, 20A, MINI, YELLOW (PART OF 13) (ACDelco #ATM20-25)
|
2002-2009 |
04 |
|
| 009 |
88909756 |
FUSE, 25A, MINI, CLEAR (PART OF 13) (ACDelco #ATM25-25)
|
2002-2009 |
01 |
|
| 010 |
19115080 |
RELAY, PARK LP (CODE 8567) (PART OF 13) (GRAY) (SPST 280 MICRO) (4-TERMINAL) (3.670) (ACDelco #15-50688)
| ST1 |
2005-2009 |
01 |
|
| 011 |
88986346 |
RETAINER, BODY I/P WRG HARN J/BLK CVR (PART OF 13) (SLIDE LOCK) |
ST1 |
2002-2009 |
01 |
| 012 |
12193775 |
STUD, ENG WRG HARN J/BLK (PART OF 13) (M8 X 1.25 X 35.9) |
ST1 |
2005-2009 |
01 |
| 013 |
25925580 |
BLOCK, BODY I/P WRG HARN JUNC (INCLS 5-12) (2.530) |
ST1 (06) (X88, Z88) |
2009-2009 |
01 |
| 013 |
25925580 |
BLOCK, BODY I/P WRG HARN JUNC (INCLS 5-12) |
ST1 (06) (X88, Z88) |
2009-2009 |
01 |
| 014 |
11609411 |
ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (BODY WRG HARN CONN BRKT)
|
2002-2009 |
04 |
|
| 015 |
15031613 |
BLOCK, BODY I/P T/LP WRG HARN JUNC (LOCATED UNDER RR SEAT) (2.530) |
ST155 |
2002-2009 |
01 |
| 015 |
15031613 |
BLOCK, BODY I/P T/LP WRG HARN JUNC (LOCATED UNDER RR SEAT) |
ST155 |
2005-2009 |
01 |
